Industrial 14” CRT Monitors
13
Publication 6156-2.0

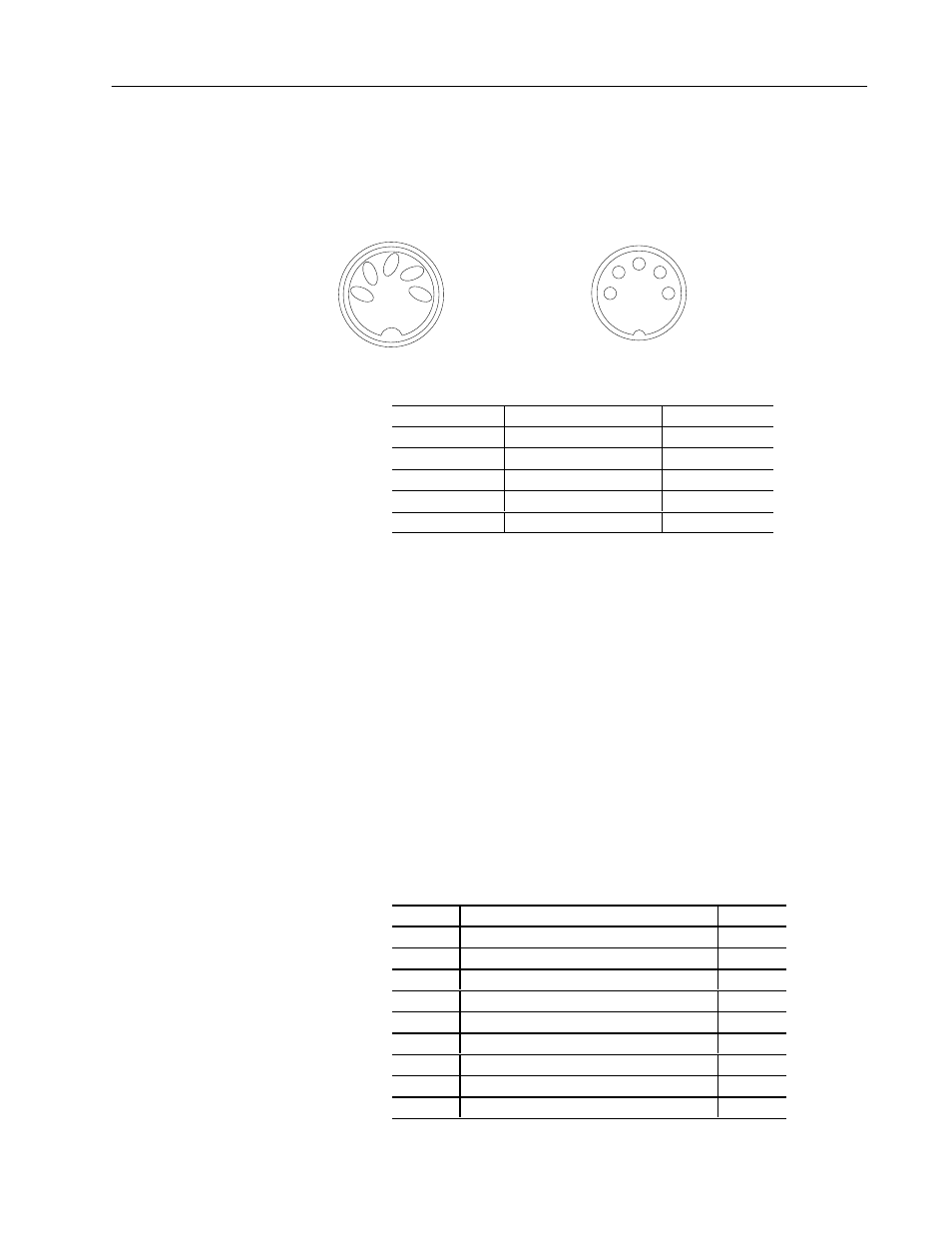

Keyboard Extender Cables
For units configured with the keypad option, a keyboard extender
cable is available in various lengths.
1
3
1
3
Female
DIN-5
Connector
Male
DIN-5
Connector
(Computer End)
1
4
5
5
4
2
2
3
3
1
Table E
Standard Keyboard Cable Construction
Female DIN–5
Signal Description
Male DIN–5
1
Keyboard Clock
1
2
Keyboard Data
2
3
Not Used
3
4
0 Volts
4
5
+5V
5
The Touchscreen Option
The Touchscreen option provides a high resolution resistive or
capacitive touchscreen system. Software drivers provided with the
touchscreen option allow you to use the touchscreen as a pointing
device with many popular DOS and Windows-based industrial
applications. Refer to the touchscreen documentation for information
on installing and using the touchscreen.
Touchscreen Serial Cables
For units configured with the touchscreen option, a touchscreen
serial cable is available in various lengths and with either a 9-pin or
25-pin communications port D-shell.
Table F
Allen–Bradley Touchscreen Serial (RS-232) Cable Construction
9-pin D
Signal Description
9-pin D
1
Not Connected
1
2
Transmit Data
2
3
Receive Data
3
4
Data Terminal Ready (DTR)
4
5
Common Signal Return
5
6
Not Connected
6
7
Request To Send (RTS)
7
8
Clear To Send (CTS)
8
9
Not Connected
9
Cable shield is grounded through the connector shells
