6 Backlight Replacement
Publication 2711P-IN019D-EN-P - February 2007
Replace Backlight
This section shows how to replace the backlight for the 700, 1000, 1250, and 1500
terminals.
Follow these steps to replace the backlight.
1. Remove the four screws that secure the display bracket for the 700 series C
display.
2. Remove the four screws that secure the LCD display for all other displays.

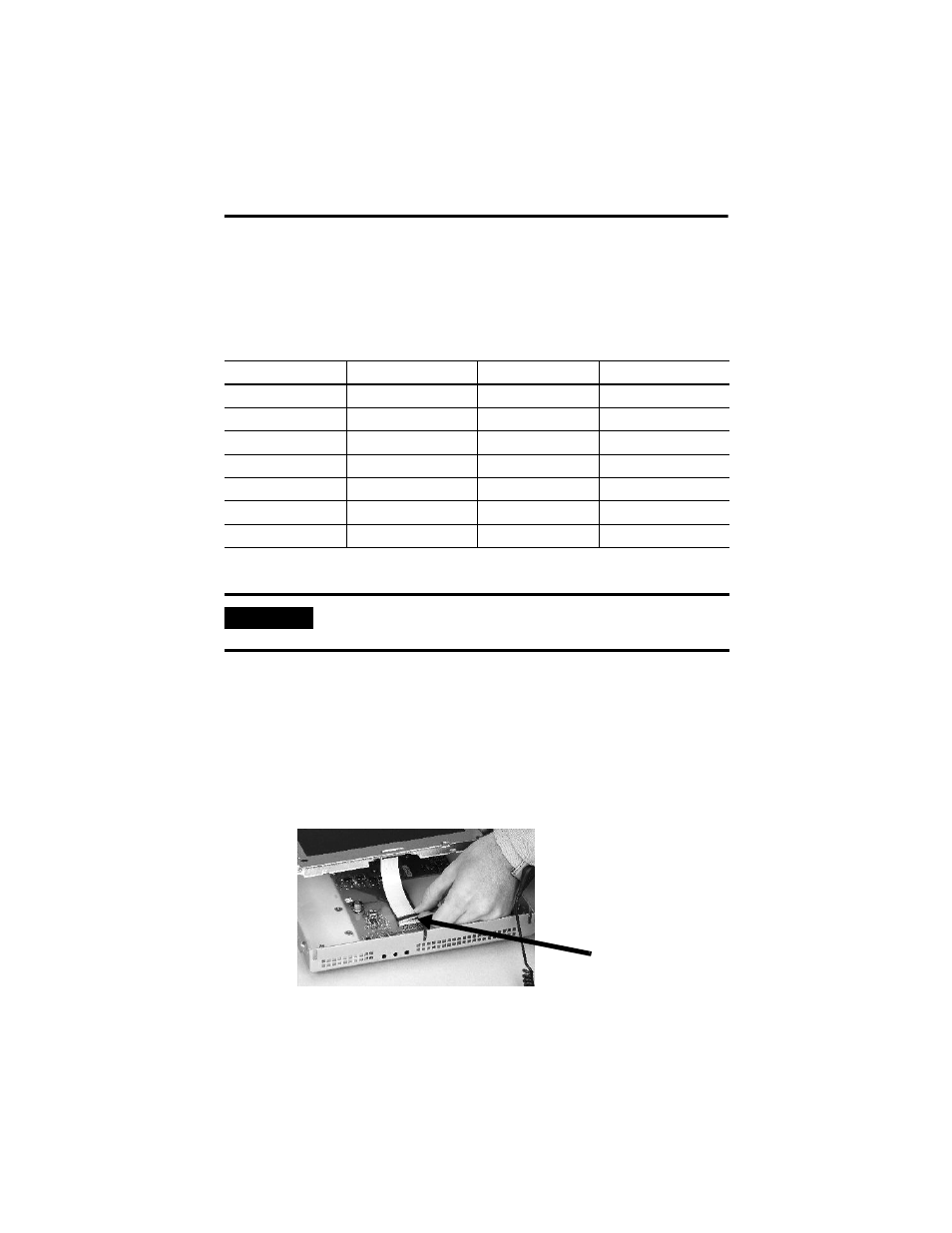

3. Lift the LCD display and detach the display connector from the circuit board.
The location of the connector varies by model.
Backlights for PanelView Plus 700 to 1500 Displays
Use Cat. No. For Display Series # of Backlights
2711P-RL7C 700 A and B 1
2711P-RL7C2 C 1
2711P-RL10C 1000 A 1
2711P-RL10C2 B and C 1
2711P-RL12C 1250 A and B 2
2711P-RL12C2 C 1
2711P-RL15C 1500 B 2
IMPORTANT
The 700 series C display is not secured by screws and is only retained by a
bracket. Use care not to drop the display once the bezel is removed.
Display
Connector
