12 CENTERLINE ® 2100 Motor Control Centers Joining and Splicing Vertical Sections

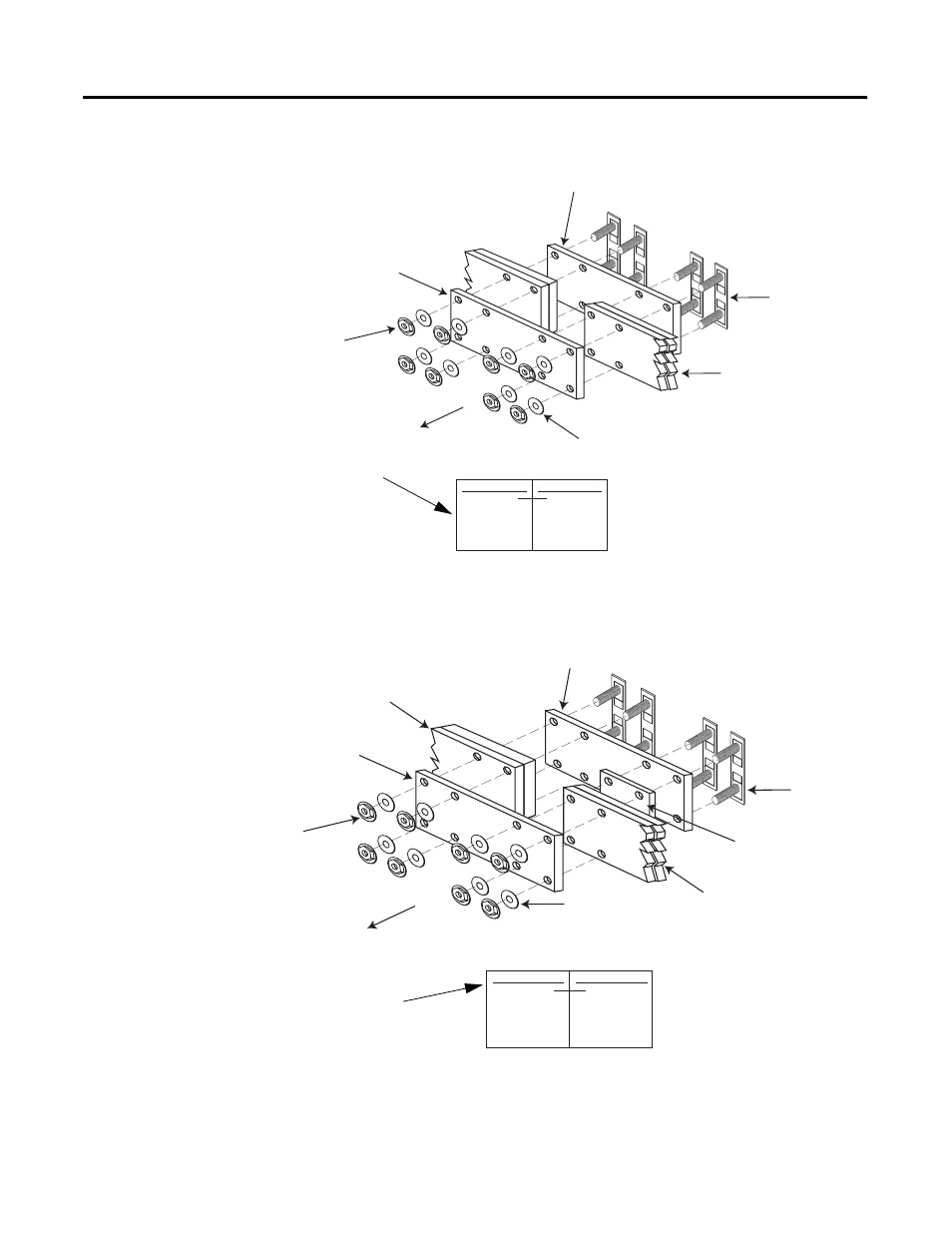

Figure 9 1600 - 3000 Amp Horizontal (and Neutral) Bus Splicing Detail and
Configuration Example
Four Hole Main Horizontal Splice
Four Hole Main
Horizontal Splice
Bus Clamps
One-piece assembly of
nut and conical spring
Main Horizontal Bus or
washer Neutral Bus
Front
Flat Washers
Splice Kit Configuration Example (Top View - 2 Sections)
Refer to Table A for bus size and thickness.
Figure 10 2000 Amp Main Breaker and 1600 Amp Horizontal Bus Splicing Detail
and Configuration Example
Main Horizontal Splice
2000A Main Horizontal
Bus or Neutral Bus
Main Horizontal Splice
Bus Clamps
One-piece assembly of Splice Spacer Bar
nut and conical spring
washer
Flat Washers 1600A Main Horizontal
Bus or Neutral Bus
Front
Splice Kit Configuration Example
(Top View - 2 Sections)
Refer to Table A for bus size and thickness.
Publication
2100-IN010D-EN-P—February 2007
