ProcessLogix Controller 7
Publication 1757-IN901D-EN-P - May 2007
Install the Battery
The battery is disconnected during shipping to conserve power. Follow this procedure to
install the battery.

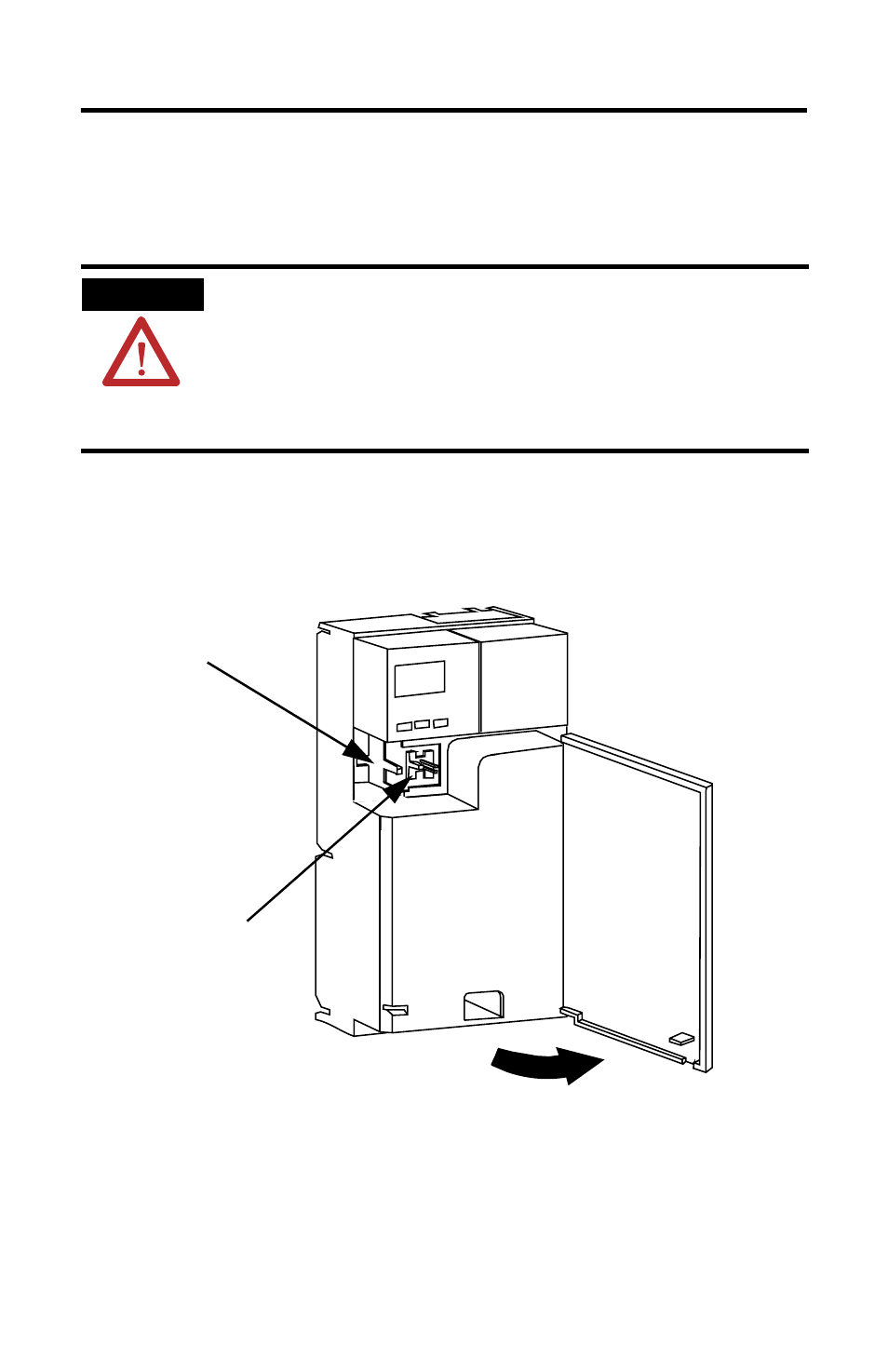

1. Open the front door of the 1757-PLX52 controller.
2. Locate the battery connector (a small, white plug at the end of a pair of red and black
twisted wires).
Battery holder
Battery lead terminal
42788
3. Turn the plug so that the wires enter the plug from the right.
WARNING
When you connect or disconnect the battery an electrical arc can occur. This
could cause an explosion in hazardous location installations. Be sure that
power is removed or the area is nonhazardous before proceeding.
For Safety information on the handling of lithium batteries, including handling
and disposal of leaking batteries, see Guidelines for Handling Lithium
Batteries, publication AG 5-4.
