Analog Input Module 4
Publication 1771Ć5.45 - July 1997

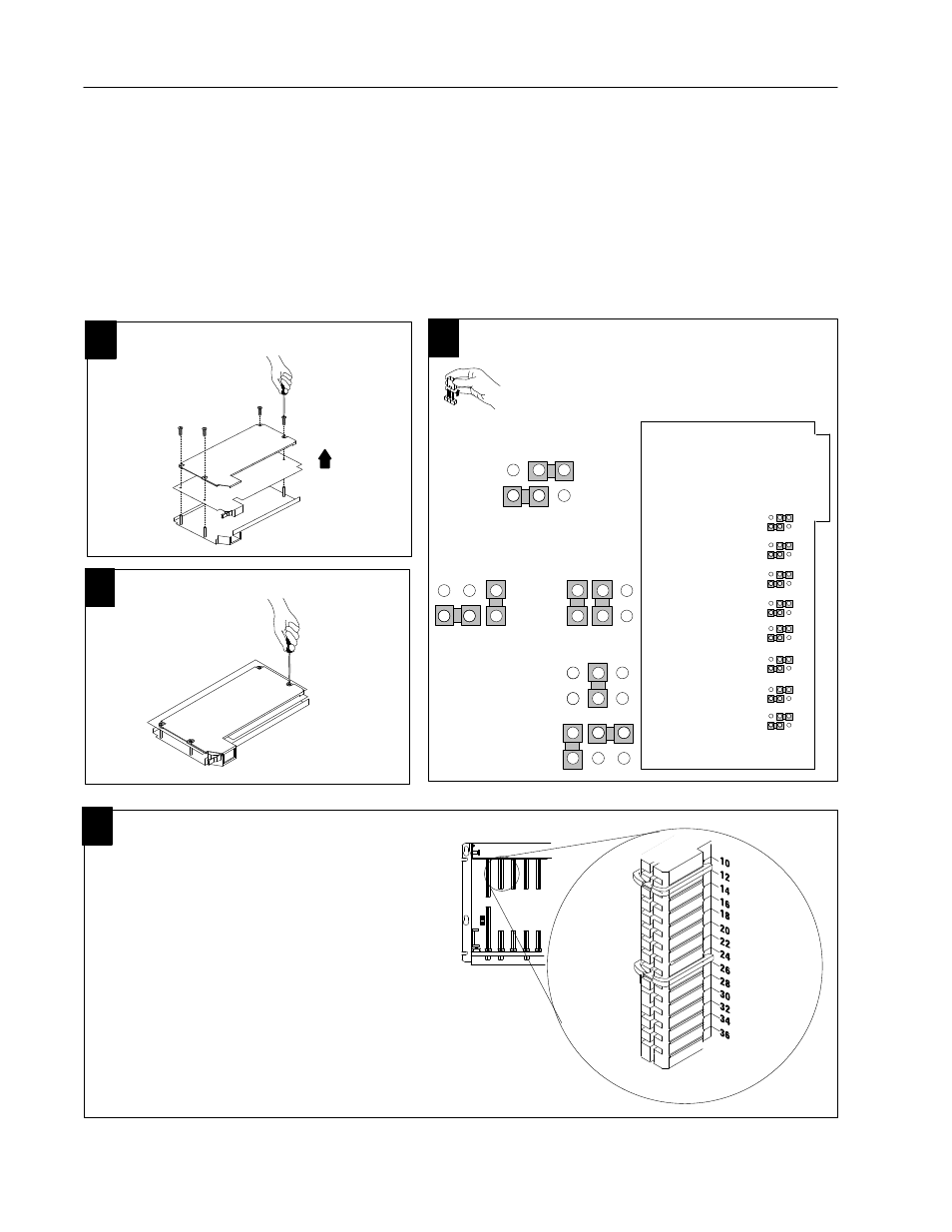

The module has configuration jumpers for determining the input type
(voltage or current) desired for each input. The module is shipped
with the configuration jumpers positioned for voltage mode and
the A/B simulation jumper set for Series C. If you are replacing a
Series A or B 1771-IFE module with this module, reset the
simulation jumper as shown above.
You can select either voltage or current for each input, but all inputs
must be either single-ended or differential. Do not mix single-ended
and differential inputs on the module.
Reposition the configuration jumpers associated with each input
channel according to your requirements
12
You can mix voltage mode and current mode settings on
the module. Make sure that the entire module is set for
either singleĆended or differential. Do not mix them.
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel
1 and 2
Channel
3 and 4
Channel
5 and 6
Channel
7 and 8
Channel
9 and 10
Channel
11 and 12
Channel
13 and 14
Channel
15 and 16
Differential SingleĆended
Voltage Mode
Differential
Current
SingleĆended
Current
Differential or SingleĆended (factory set)
Current Mode
Odd channel current
Even channel voltage
Even channel current
Odd channel voltage
SingleĆended
Configuration
Jumpers
Remove the four screws securing the side cover to
the module and remove the covers.
19805
11
Reposition the cover and secure with the four
screws removed in step 1.
19813
13
Position the keying bands in the backplane connectors
to correspond to the key slots on the module.
Place the keying bands:
between 10 and 12
between 24 and 26
You can change the position of these bands if
subsequent system design and rewiring makes
insertion of a different type of module necessary.
Upper Connector
11022ĆI
I/O chassis
Place your module in any slot in the chassis
except the leftmost slot which is reserved for
processors or adapters.
Key the Backplane Connector
4
Set the Configuration
Jumpers and Key the
Backplane Connector
