12 Logix5553 Controller
Publication 1756-IN017A-EN-P - August 2000

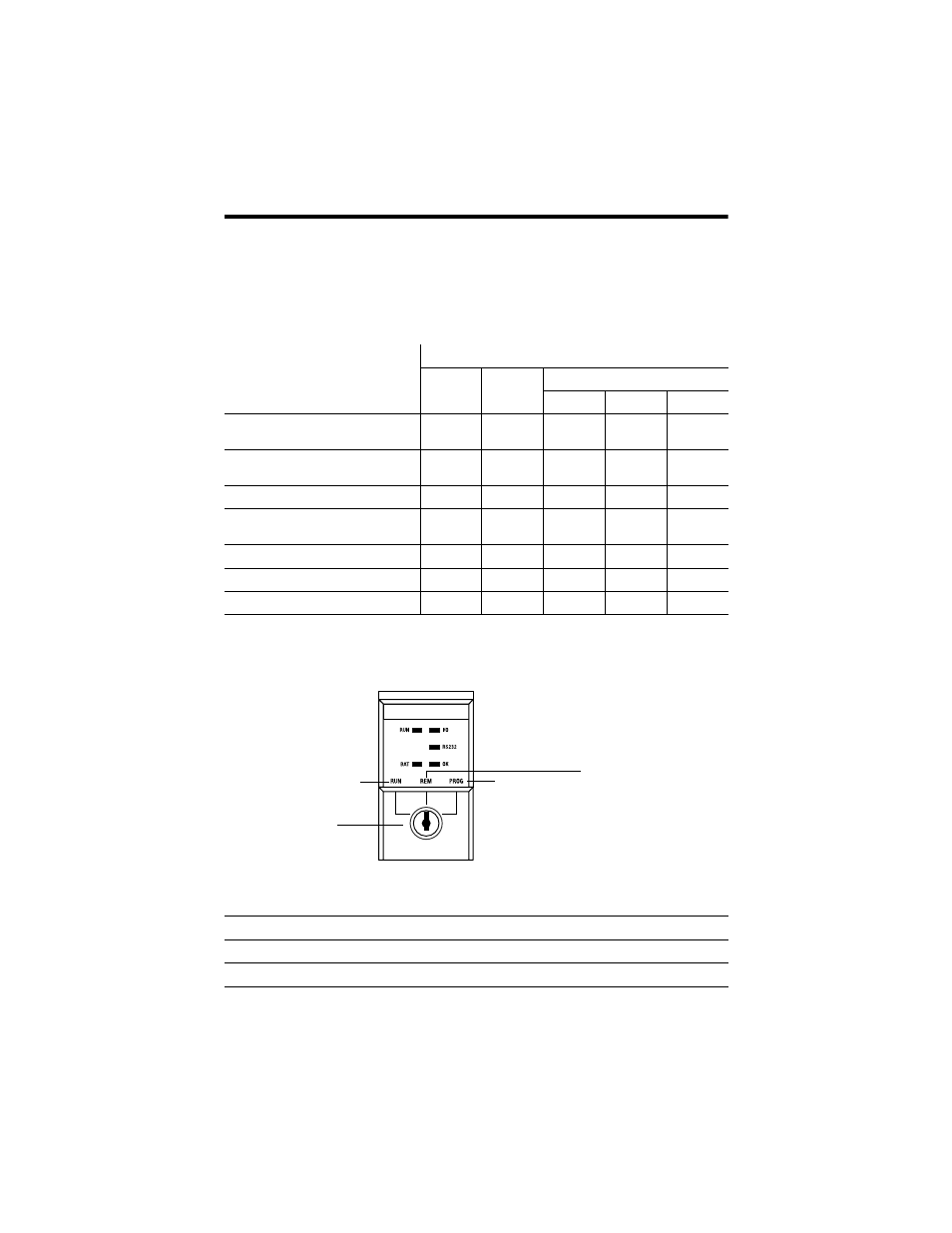

Select the operating mode of the controller
1. Use the following table to determine the required operating mode of the
controller:
2. Use the key on the front panel of the controller to select the required mode.
If you want to: Select one of these modes:
Run Program Remote
Run Program Test
turn outputs to the state commanded by
the logic of the project ✓ ✓
turn outputs to their configured state for
Program mode ✓ ✓ ✓
execute (scan) tasks ✓ ✓ ✓
change the mode of the controller
through software ✓ ✓ ✓
download a project ✓ ✓ ✓ ✓
schedule a ControlNet network ✓ ✓ ✓ ✓
while online, edit the project ✓ ✓ ✓ ✓
To select: Turn the key to:
Remote Run RUN and then to REM
Remote Program PROG and then to REM
Remote Test REM and then go online and select Test mode via the programming software
40002
key
Remote mode
Program mode Run mode
