Interpret the status indicators – Rockwell Automation 1738-IE4CM12 ArmorPoint 4-Channel 24V dc Analog Input Modules, Series A User Manual
Page 10
10 ArmorPoint 4-Channel 24V dc Analog Input Module, Series A
Publication
1738-IN024C-EN-P - March 2010

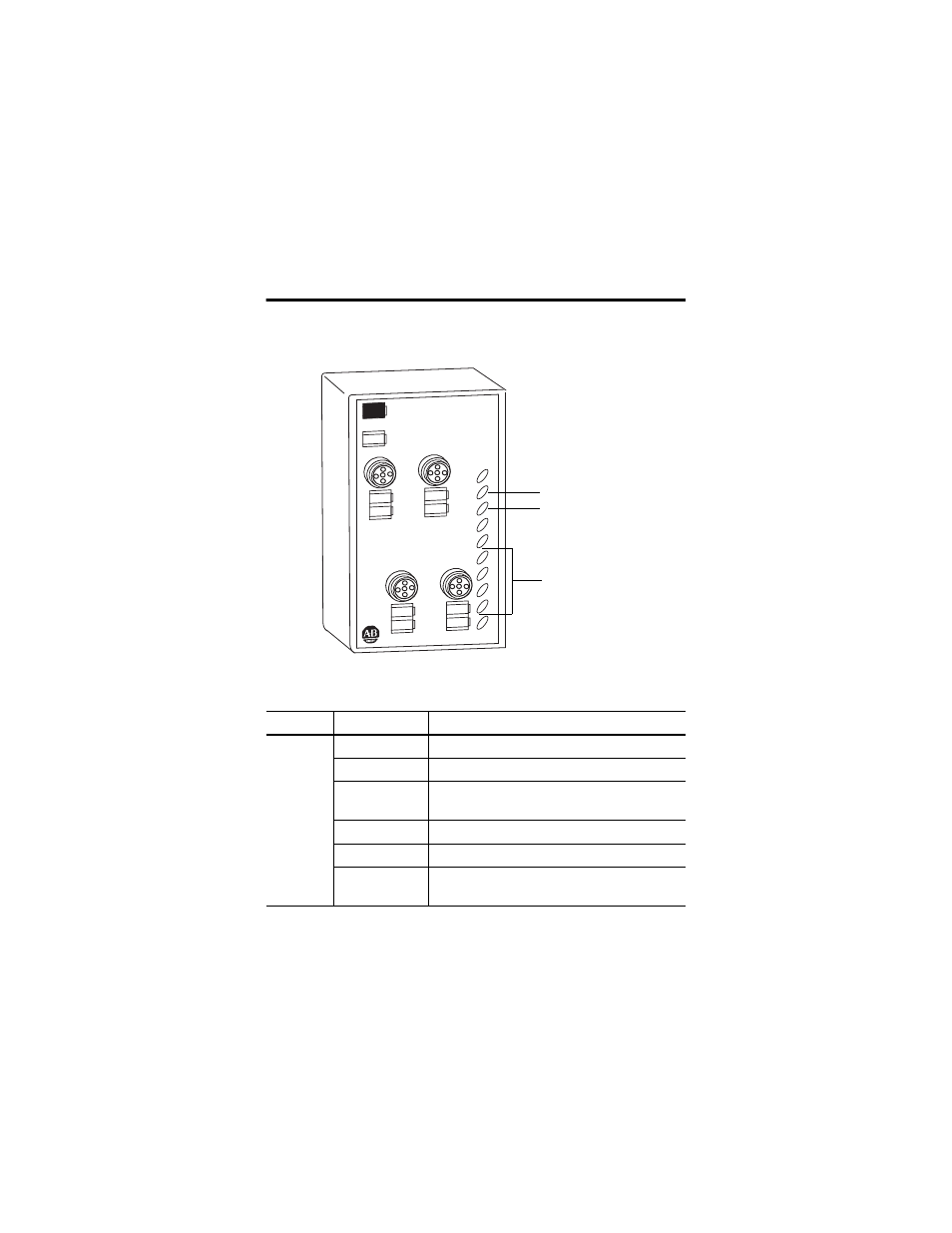

Interpret the Status Indicators
1738-IE4CM12
Status Indicators
Indicator
State
Description
Module
Status
Off
No power applied to device.
Green
Device operating normally.
Flashing green
Device needs commissioning due to missing,
incomplete, or incorrect configuration.
Flashing red
Recoverable fault.
Red
Unrecoverable fault - may require device replacement.
Flashing
red/green
Device is in self-test.
MOD
NET
0
1
1738-IE4CM12/A
Analog Current In
0
1
2
3
2
3
Module Status Indicator
44367
Network Status Indicator
I/O Status Indicators
