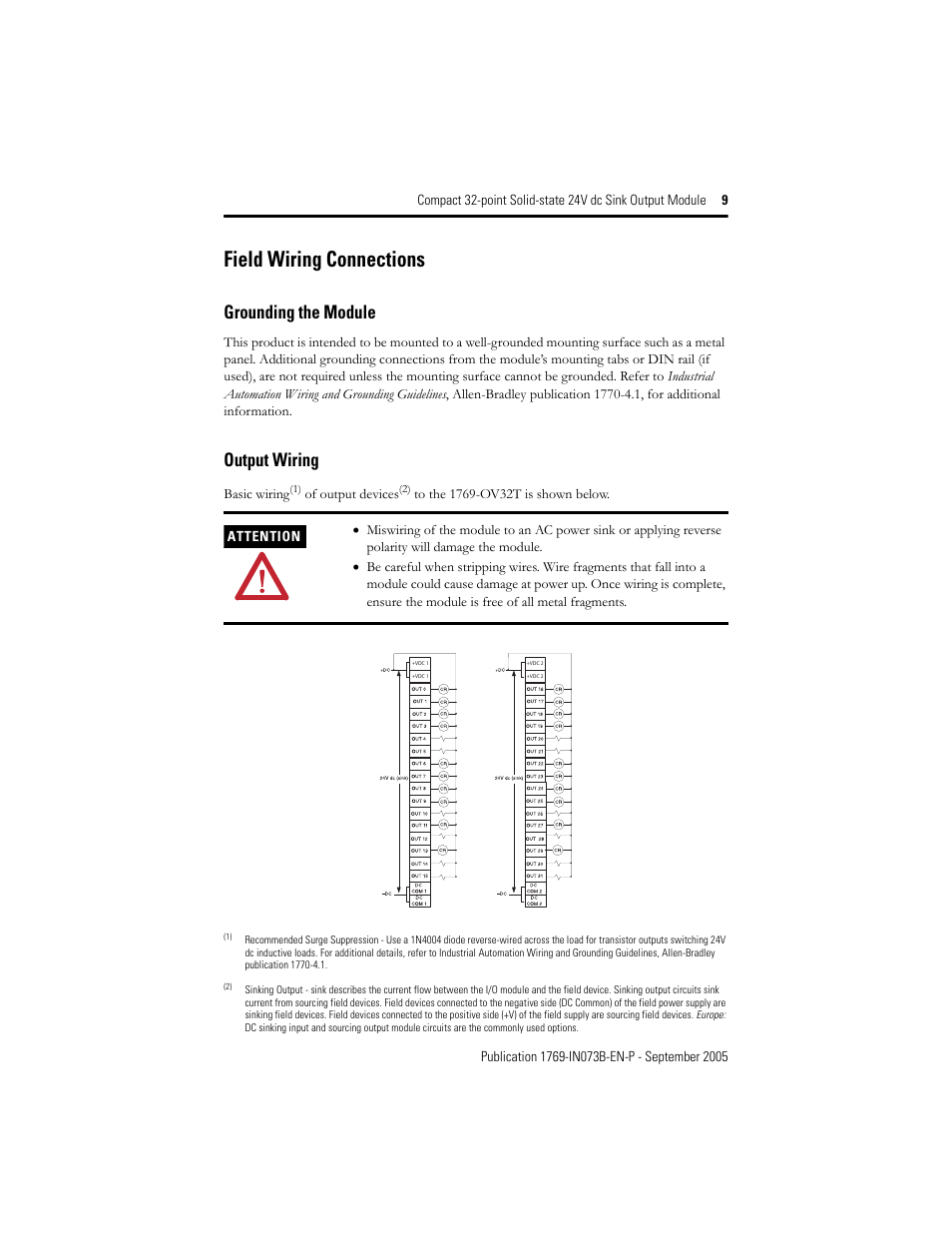

Field wiring connections, Grounding the module, Output wiring – Rockwell Automation 1769-OV32T Compact Module User Manual
Page 9
