FLEX Integra 2 Input/2 Protected Output Module
Publication 1793-5.3 - September 1999
Wiring

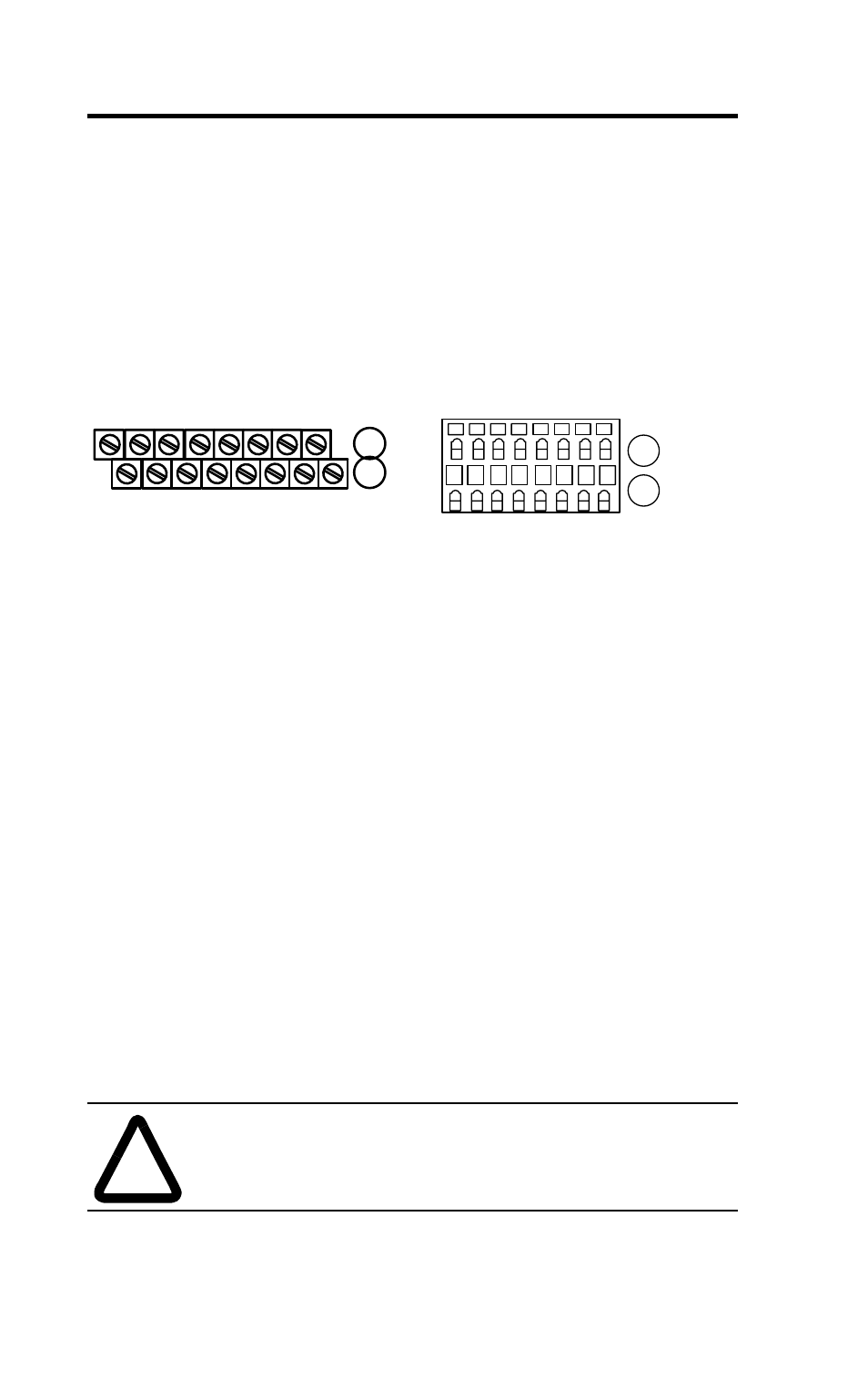

This module is available with 2 styles of terminations; 1794-IB2XOB2P -
screw-cage and 1793-IB2XOB2PS - spring-clamp. Refer to the wiring
figure below.
1.
Connect individual sensor input leads to terminals 2 (channel 0) and 3
(channel 1) on row A.
2.
Connect sensor supply lead to +24V dc (terminals 1, 6, 9, or 14).
(Terminals 1, 6, 8, 9, 14 and 15 are connected internally to +24V dc.)
3.
Connect associated input common (3-wire sensors only) to terminals
10 and 11 on row B.
4.
Connect individual output wiring to terminals 4 (channel 0) and 5
(channel 1) on row A.
5.
Connect associated output common to terminals 12 and 13 on row B.
6.
Connect +24Vdc voltage to terminal 8 on row B
7.
Connect 24V dc common to terminal 0 on row A.
8.
If daisy-chaining +24V dc from this module to the next FLEX Integra
module, connect a jumper from terminal 15 to terminal 8 on the next
FLEX Integra module.
9.
If daisy-chaining 24V dc common from this module to the next FLEX
Integra module, connect a jumper from terminal 7 on this module to
terminal 0 on the next Integra module.
.
!
ATTENTION:
Total current draw through the module’s
(+) voltage terminals is limited to 10A. Separate power
connections to the module may be required.
1793-IB2XOB2P
1793-IB2XOB2PS
0
1
2
3
4
5
6
7
8
9
10
11
A
B
13
14
15
12
41468
C
V
C
V
C
C
V
V
C
C
V
V
O
O
I
I
Ch 0 Ch 1
Ch 0 Ch 1
0
1 2 3 4 5 6
7
8 9 10 11 12 13 14 15
A
B
41469
C V
C
V
C C
V
V
C C
V
V
O O
I
I
Ch 0 Ch 1
Ch 0 Ch 1
Where: C - common, V = + voltage, I = input, O = output
