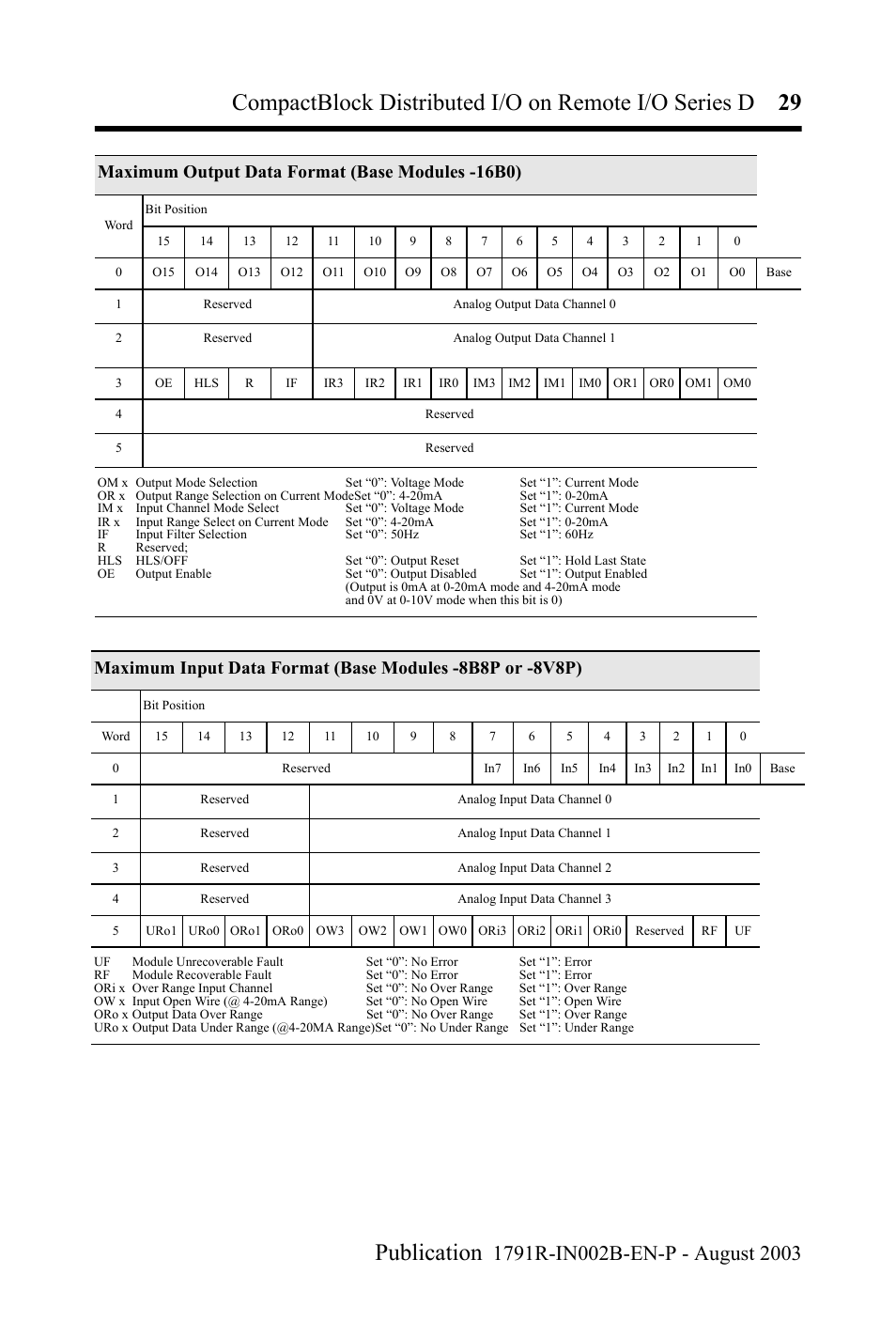

Maximum output data format (base modules -16b0) – Rockwell Automation 1791R-XXXX CompactBlock Distributed I/O on Remote I/O Series D I.I. User Manual
Page 29
