Troubleshoot the module – Rockwell Automation 1768-M04SE CompactLogix SERCOS interface Module Installation Instructions User Manual
Page 21

21
Publication
1768-IN005A-EN-P - December 2005

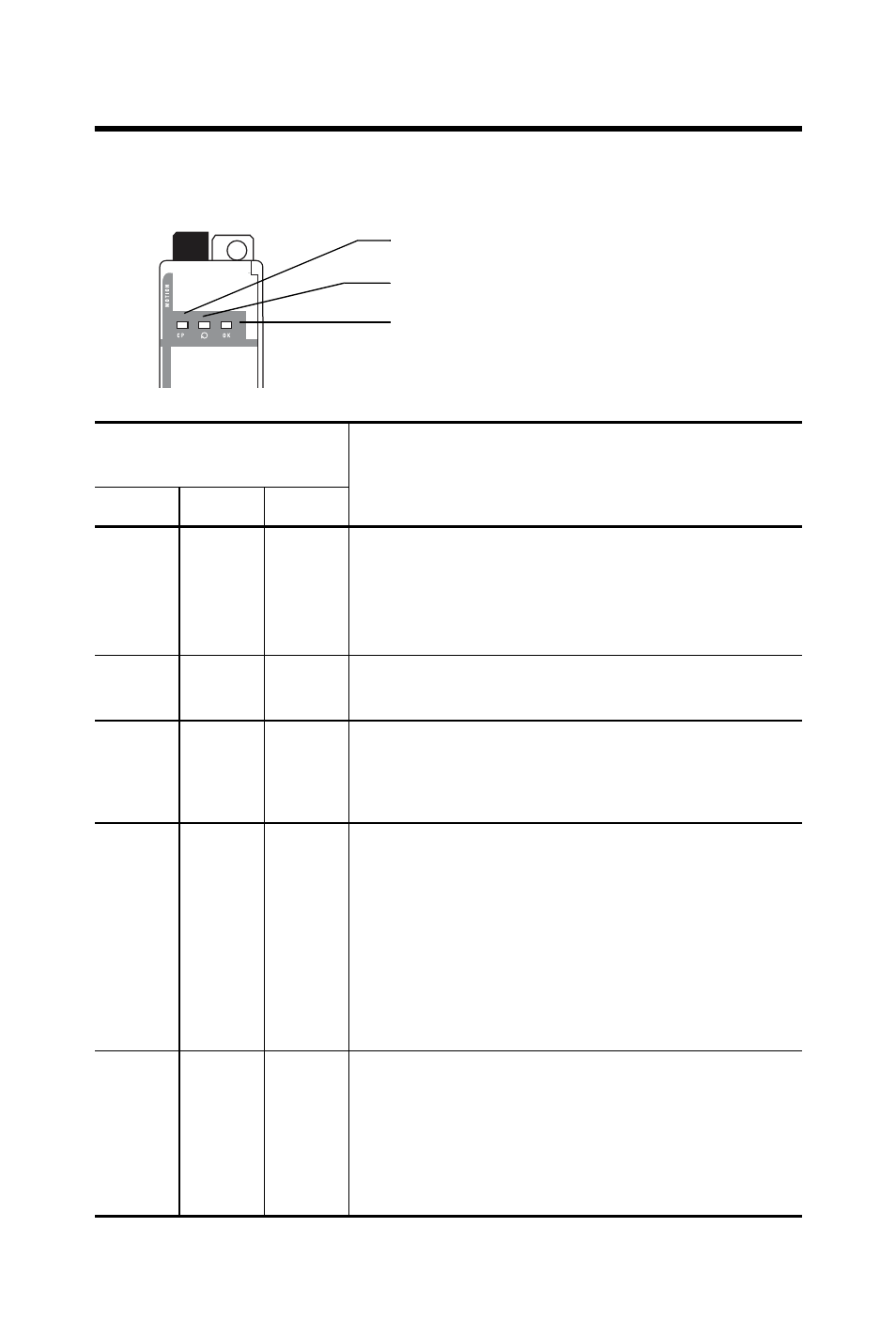

Troubleshoot the Module
If the lights on the module
look like this
Then do this
CP
Ring
OK
Off
Off
Off
• Make sure the module is connected and locked to the
other modules.
• Check the power supply and controller to make sure
the backplane has power.
Off
Off
Flashing
Red
Wait! Someone is updating the firmware of the module.
Flashing
Orange
Off
Flashing
Green
• Look for cables that are broken, unplugged, or in the
wrong port.
• Check the drives for faults.
Solid
Orange
Flashing
Red
Flashing
Green
• Make sure each drive has its own address.
• Make sure that all of the drives have the same baud
rate.
• Set the Data Rate of the SERCOS interface module to
Auto-Detect.
• Check the Cycle Time of the SERCOS interface
module. See Specifications on page 23.
Flashing
Red and
Green
Flashing
Green
Flashing
Green
Did you configure the module?
• NO — Use RSLogix 5000 software to configure the
module.
• YES — Check the configuration of the module and
drives in RSLogix 5000 software.
SERCOS Phase
SERCOS Ring Status
Module Status
