Interpret Status Indicators

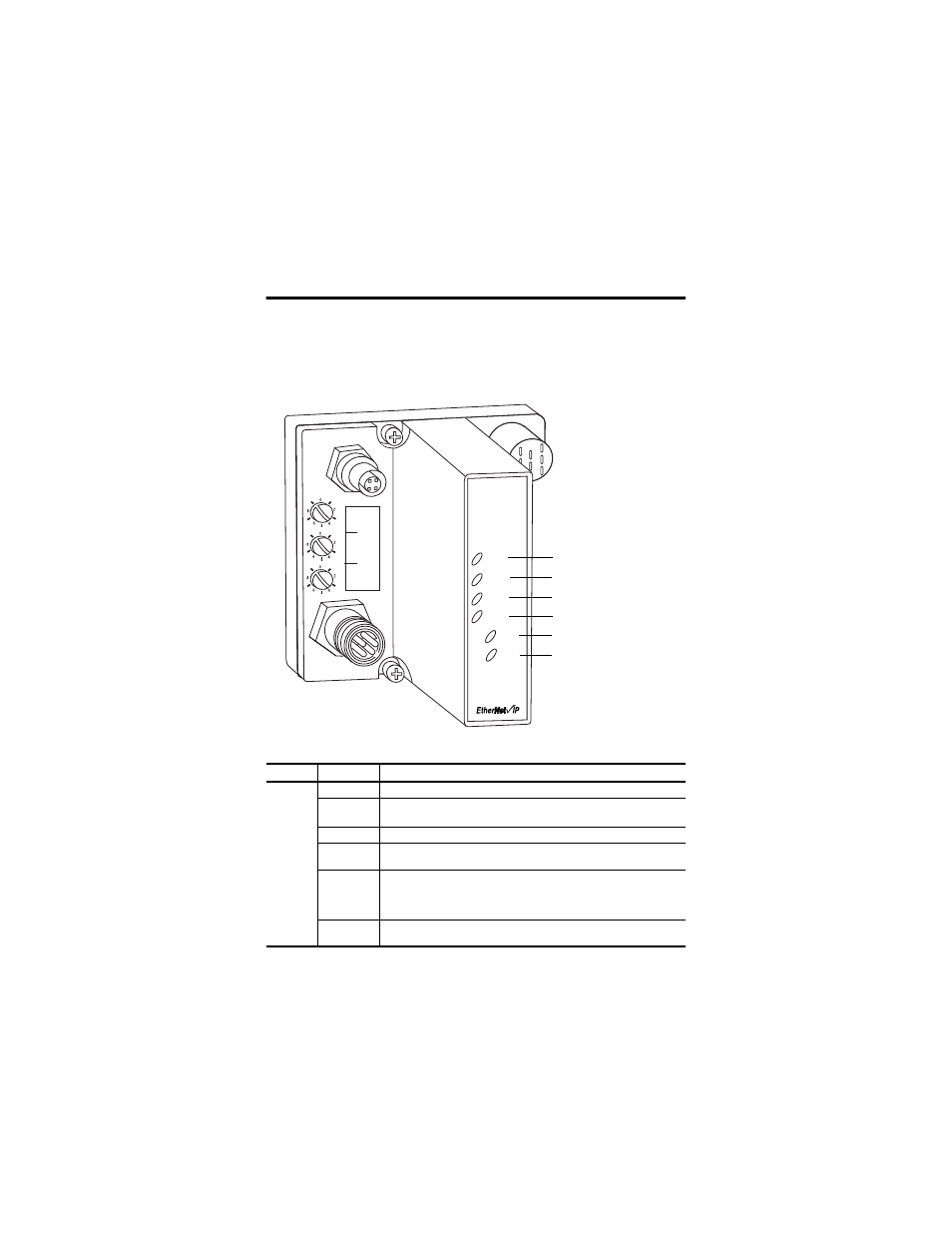

Refer to the following diagram and table for information on how to interpret the
status indicators.
ArmorPOINT I/O EtherNet/IP adapter, Series B
Indicator Status for Modules
Indicator State
Description
Adapter
status
Off
No power applied to device
Flashing
green
Device needs commissioning due to missing, incomplete, or
incorrect configuration.
Solid green
Device operating normally
Flashing red
Recoverable fault.
Complete firmware update, verify address switches.
Solid red
Unrecoverable fault has occurred:
• Self-test failure present (checksum failure, or RAMtest failure at cycle
power).
• firmware fatal error.
Flashing
red/green
Module self-test
Adapter Status indicator
Network Activity indicator
Network Status indicator
System Power indicator
Adapter Power indicator
POINTBus Status
1738-AENT
Series B
EtherNet I/P
Adapter
Status
Network
Activity
Network
Status
PointBus
Status
System
Power
Adapter
Power
X100
X10
X1
conformance tested
™
PWR
P
A
D
D
R
E
S
S
