6 AC/DC (220V) Input Module Cat. No. 1771-IMD Series B
Publication 1771Ć5.27
Important: You can use an AC (220V) Output Module (cat. no.
1771-OMD) to directly drive terminals on an AC/DC
(220V) Input Module (cat. no. 1771-IMD) as shown
below.
You can also use a 1771-OM Output module to drive an AC/DC
(220V) Input Module (cat. no. 1771-IMD) but you must connect a
10K ohm, 10W resistor between the output terminal and L2
(common) as shown below. Use the same ac power source to
power both modules to ensure proper phasing and prevent
module damage.

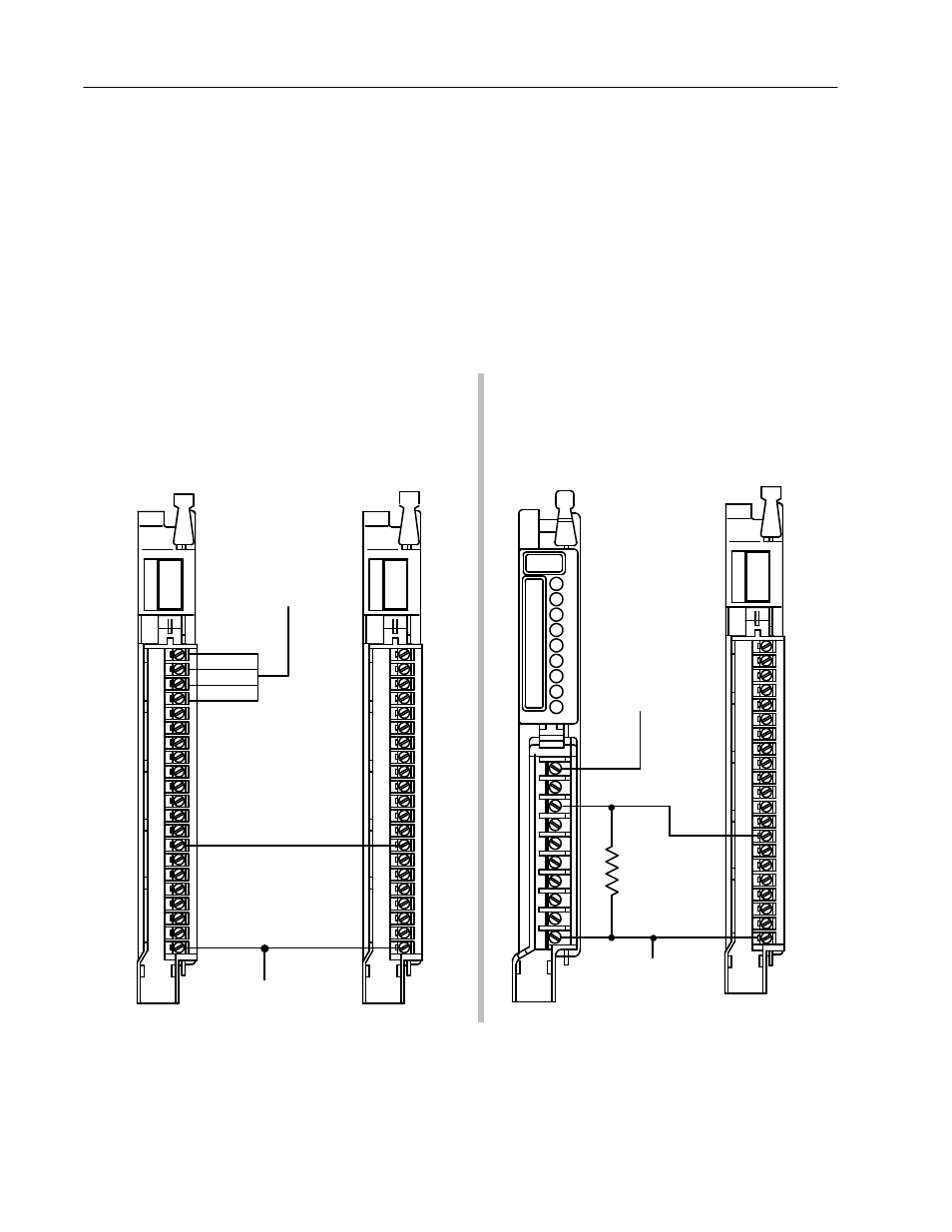

L1
220V ac High
ac Low
AC (220V)
Output Module
(Cat. No. 1771ĆOMD)
AC/DC (220V)
Input Module
(Cat. No. 1771ĆIMD)
L2
10550ĆI
(Cat. No. 1771ĆOM)
L2
ac Low
10K ohm 10W
resistor
L1
AC (220V)
Output Module
AC/DC (220V)
Input Module
(Cat. No. 1771ĆIMD)
220V ac High
10551ĆI
Driving a 1771ĆIMD Module with a 1771ĆOMD Module Driving an Input with an Output
