Connecting wiring to the input module – Rockwell Automation 1771-IMD AC/DC(220V) INPUT Installation Instructions User Manual
Page 5

5
AC/DC (220V) Input Module Cat. No. 1771-IMD Series B
Publication 1771Ć5.27
Connections to the input module are made to the 21 terminal field
wiring arm (cat. no. 1771-WH) shipped with the module. Attach the
wiring arm to the pivot bar on the bottom of the I/O chassis. The
wiring arm pivots upward and connects with the module so you can
install or remove the module without disconnecting the wires.
Connect one terminal of your 2-wire input devices to terminals 00
through 17.

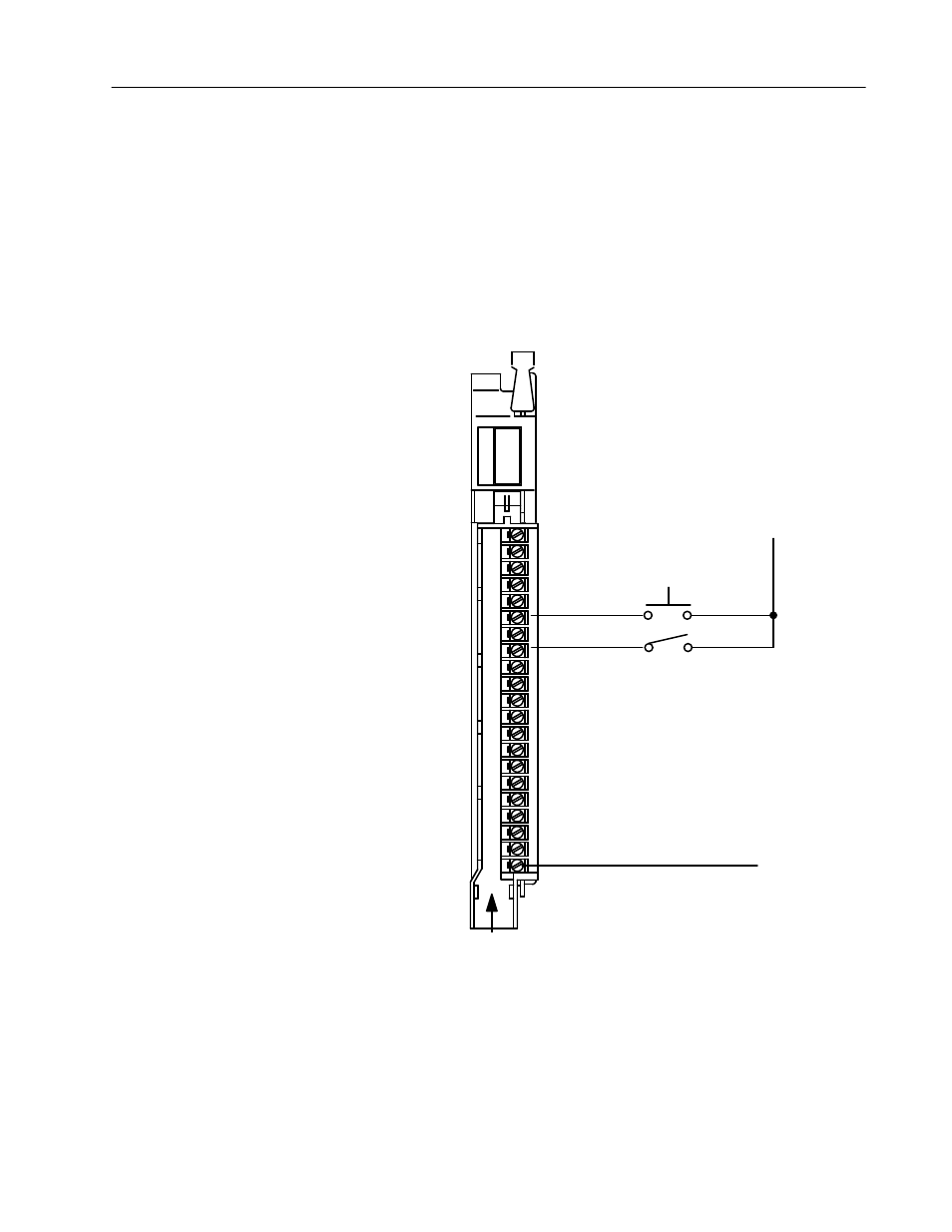

Connection Diagram for the 1771-IMD Module
(Actual wiring runs in this direction.)
L1
ac/dc High
ac/dc Low
L2
Input 00
Input 01
Input 02
Input 03
Input 04
Input 05
Input 06
Input 07
Input 10
Input 11
Input 12
Input 13
Input 14
Input 15
Input 16
Input 17
A
B
C
D
00
01
02
03
04
05
06
07
10
11
12
13
14
15
16
17
E
10549ĆI
Terminal A
Terminal B
Terminal C
Terminal D
Terminal E
Connect terminal E to the L2 (low) ac/dc return. Terminals A
through D are not used. Connect the L1 (high) ac/dc line to the other
terminal of your input devices. Use stranded 14 or 16 gauge wire to
minimize the voltage drop over long cable distances.
Connecting Wiring to the
Input Module
