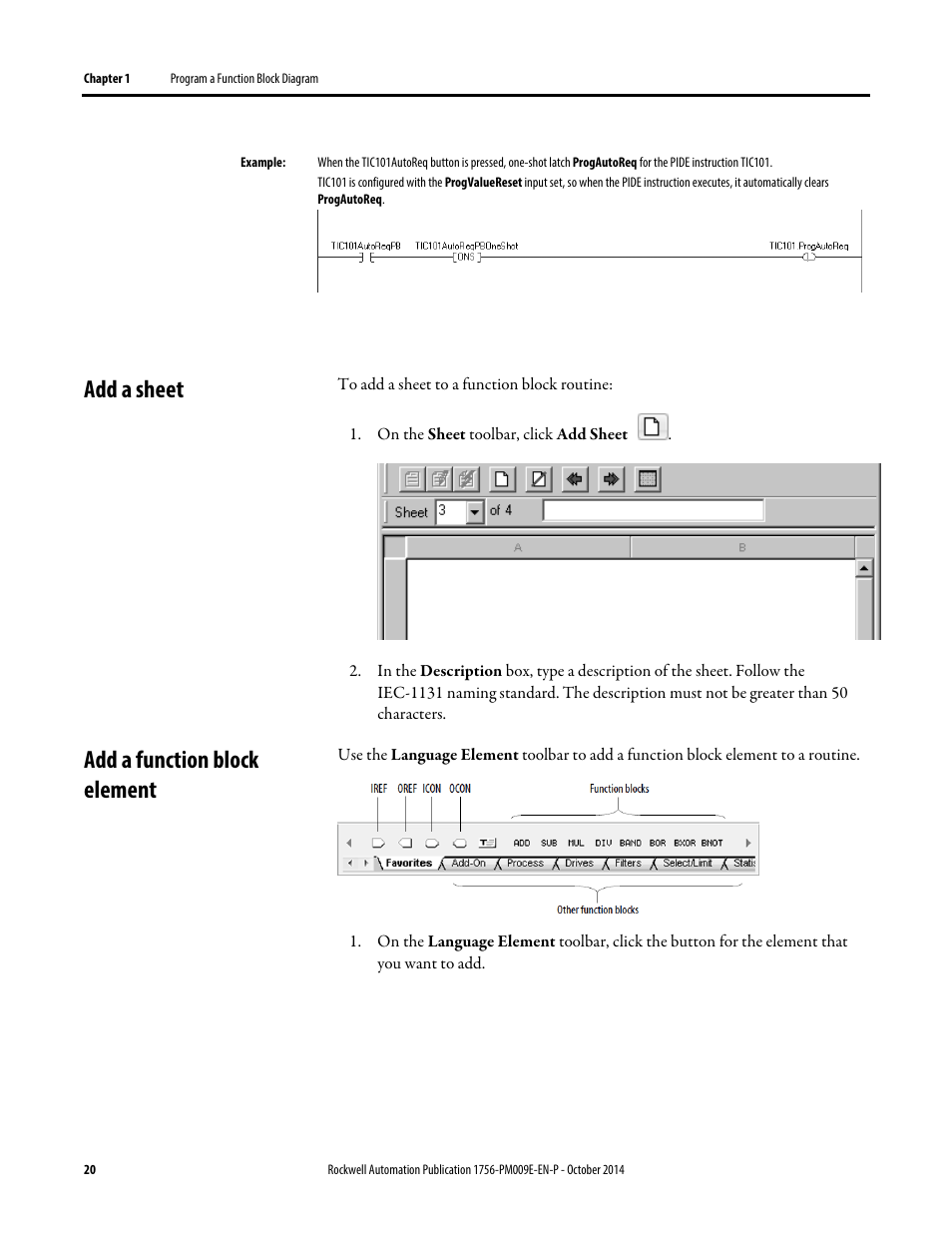

Add a sheet, Add a function block element, Add a sheet add a function block element – Rockwell Automation Logix5000 Controllers Function Block Diagram Programming Manual User Manual
Page 20
