DC (24V) Isolated Input Module 5
Publication 1771-5.25 - November 1999
Keythe Backplane Connector
Place your module in any slot in the chassis
except the leftmost slot which is reserved for
processors or adapters.
ATTENTION: Observe the following
precautions when inserting or removing
keys:
•
insert or remove keys with your fingers
•
make sure that key placement is correct
Incorrect keying or the use of a tool can
result in damage to the backplane
connector and possible system faults.
!

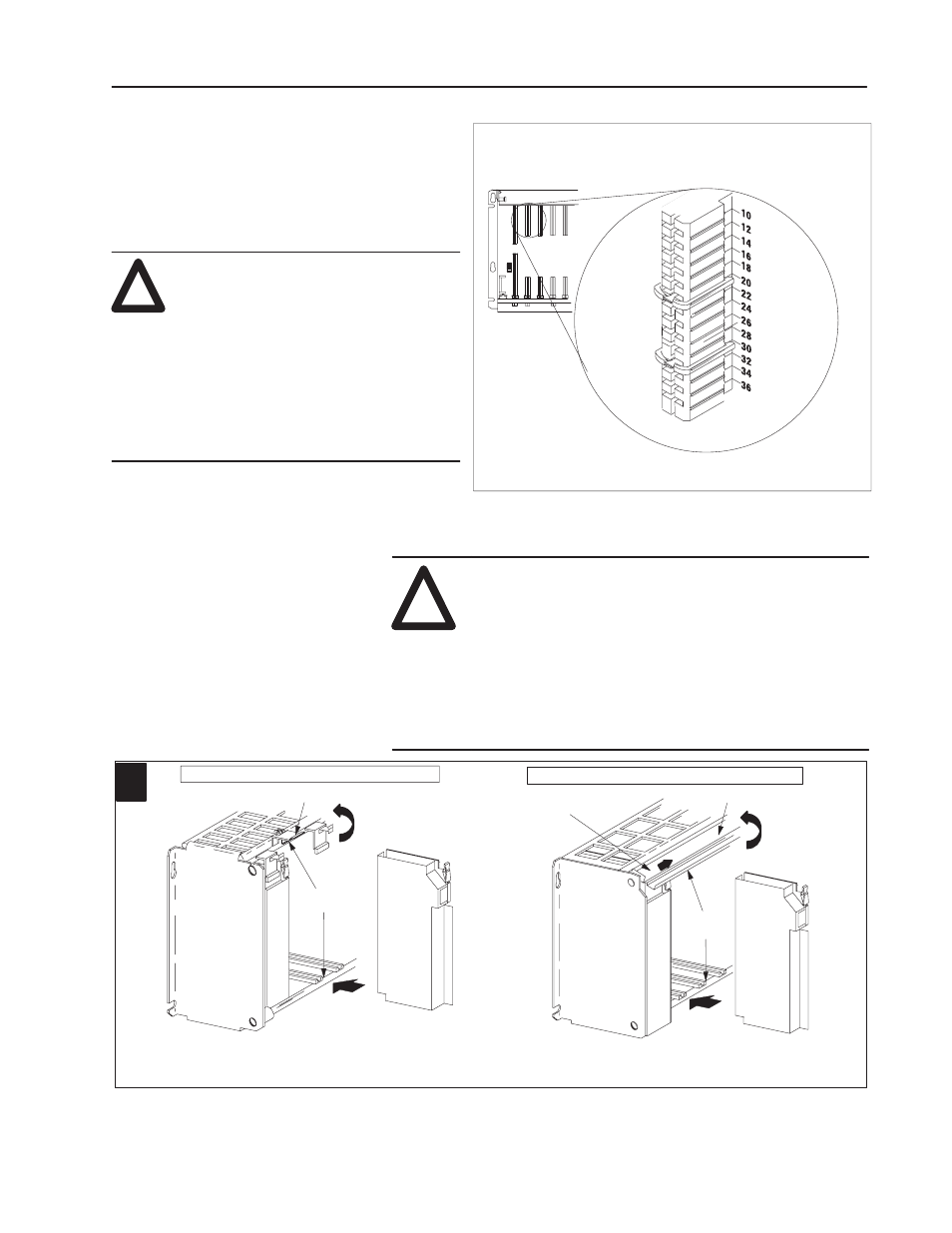

Position the keying bands in the backplane connectors to correspond to
the key slots on the module. Place the keying bands:
between 22 and 24
between 30 and 32
You can change the position ofthese bands ifsubsequent system design
and rewiring makes insertion ofa different type ofmodule necessary.
Upper Connector
11022ĆI
I/O chassis
!
ATTENTION: Remove power from the 1771 I/O
chassis backplane and field wiring arm before
removing or installing an I/O module.
•
Failure to remove power from the backplane or
wiring arm could cause module damage, degradation
of performance, or injury.
•
Failure to remove power from the backplane could
cause injury or equipment damage due to possible
unexpected operation.
Swing the chassis locking bar down into place to secure
the modules. Make sure the locking pins engage.
1771ĆA1B, ĆA2B, ĆA3B, ĆA3B1, ĆA4B I/O chassis 1771ĆA1B, ĆA2B, ĆA3B1, ĆA4B Series B I/O chassis
locking tab
card guides
module
module
19809
card guides
locking bar
locking bar pin
Snap the chassis latch over
the top ofthe module to secure it.
1
Install the Module and Field
Wiring Arm
