Page 6

Publication 1738-IN020A-EN-E - June 2004
6 ArmorPoint I/O 24V dc Expansion Power Supply, Series A
The module will lift up off the base.
3. Pull the module off of the base.
Install a Replacement 1738-EP24DC To an Existing System
1. Remove the module to the right of the power supply from the
mounting base.
2. If you have not done so already, remove the existing power
supply from the mounting base.
3. Position the replacement power supply vertically above the
mounting base.
4. Push the power supply down until it engages the orange
latching mechanism. You will hear a clicking sound when the
power supply is properly engaged and locked to the base.
5. Place the module to the right of the power supply back onto the
mounting base.
Wire the 24V dc Expansion Power Supply
ATTENTION
Make sure all connectors and caps are securely
tightened to properly seal the connections against
leaks and maintain IP67 requirements.

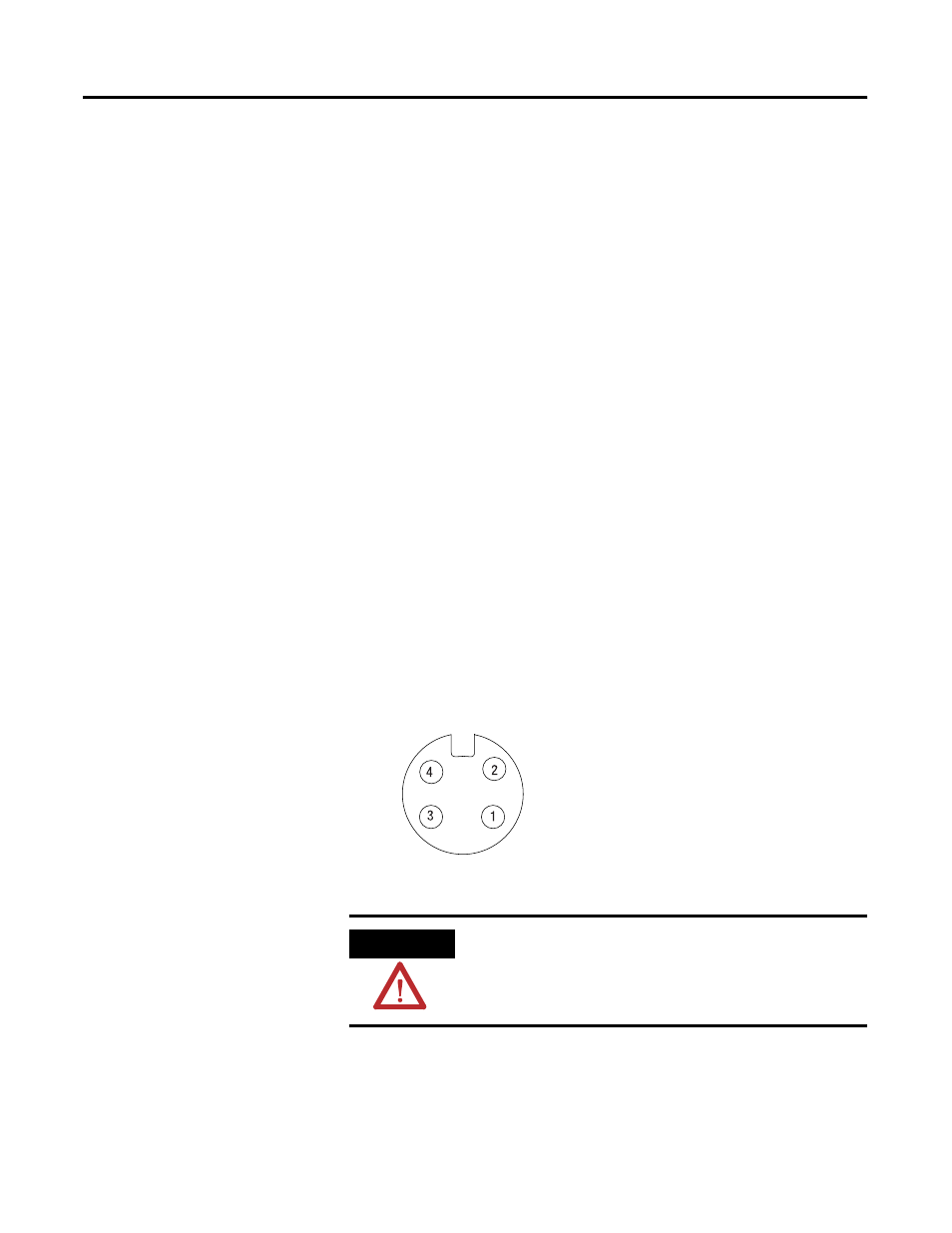

(view into connector)
Pin 1 - User Power +
Pin 2 - Adapter +
Pin 3 - Adapter -
Pin 4 - User Power -
43587
Male In Connector
