Publication 1738-IN017B-EN-E - March 2005
ArmorPoint EtherNet/IP Adapter, Series A 7
5. Mount the terminating base that was shipped with the adapter as
the last base in the backplane instead of the base that was
shipped with the I/O module.
Set the Network Address The adapter ships with the rotary switches set to 999 and DHCP
enabled. To change the network address, you can:
• adjust the switches on the front of the module
• use a Dynamic Host Configuration Protocol (DHCP) server, such
as Rockwell Automation BootP/DHCP
• retrieve the IP address from nonvolatile memory
The adapter reads the switches first to determine if the switches are
set to a valid number. You set the network address by adjusting the 3
switches on the front of the module (refer to the illustration on page
1). Use a small blade screwdriver to rotate the switches. Line up the
small notch on the switch with the number setting you wish to use.
Valid settings range from 001 through 254.

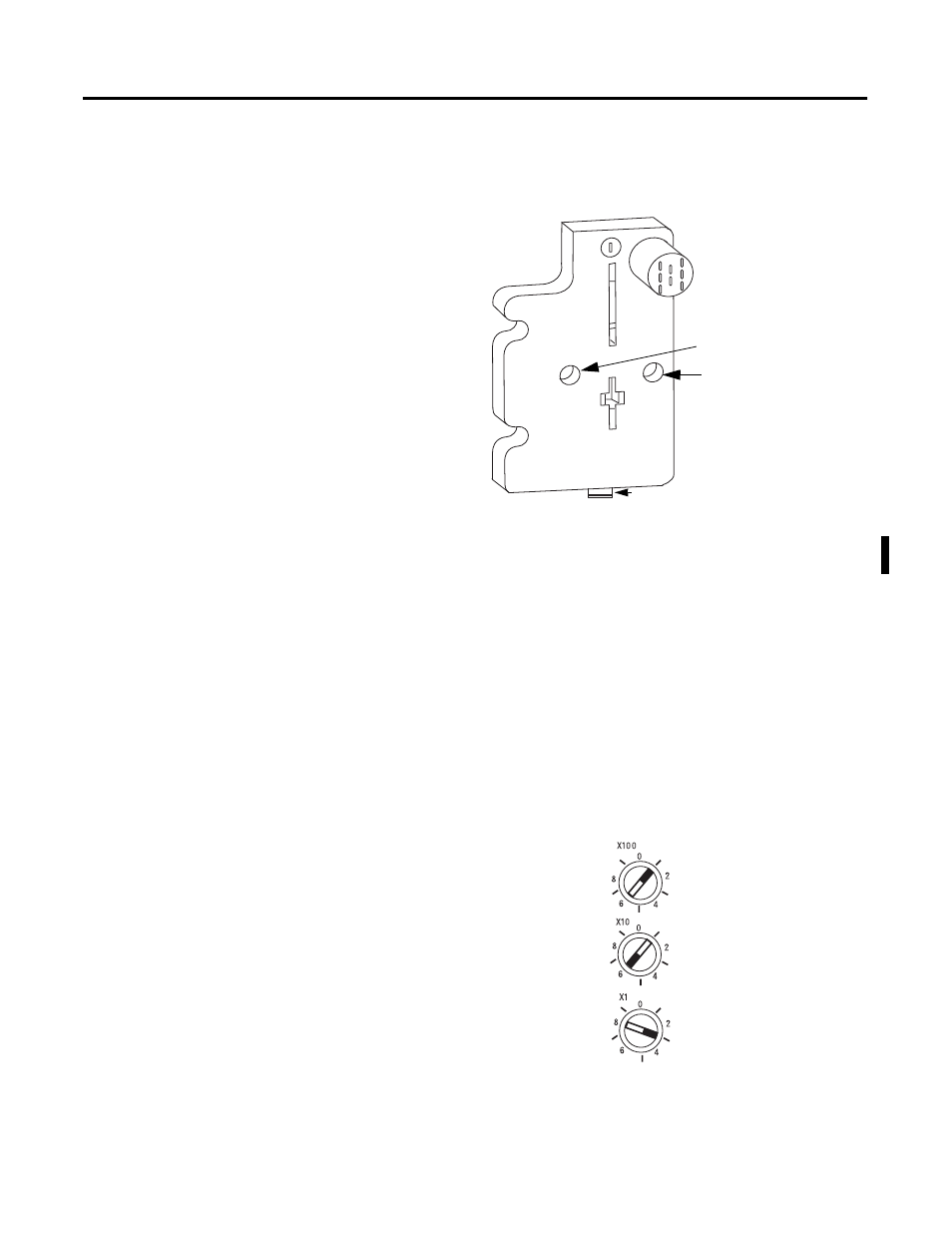

Terminating base
43787
Mounting hole
Latching mechanism
Ground connection
This example
shows the
network address
set at 163.
43841
