Publication 1738-IN017B-EN-E - March 2005
10 ArmorPoint EtherNet/IP Adapter, Series A

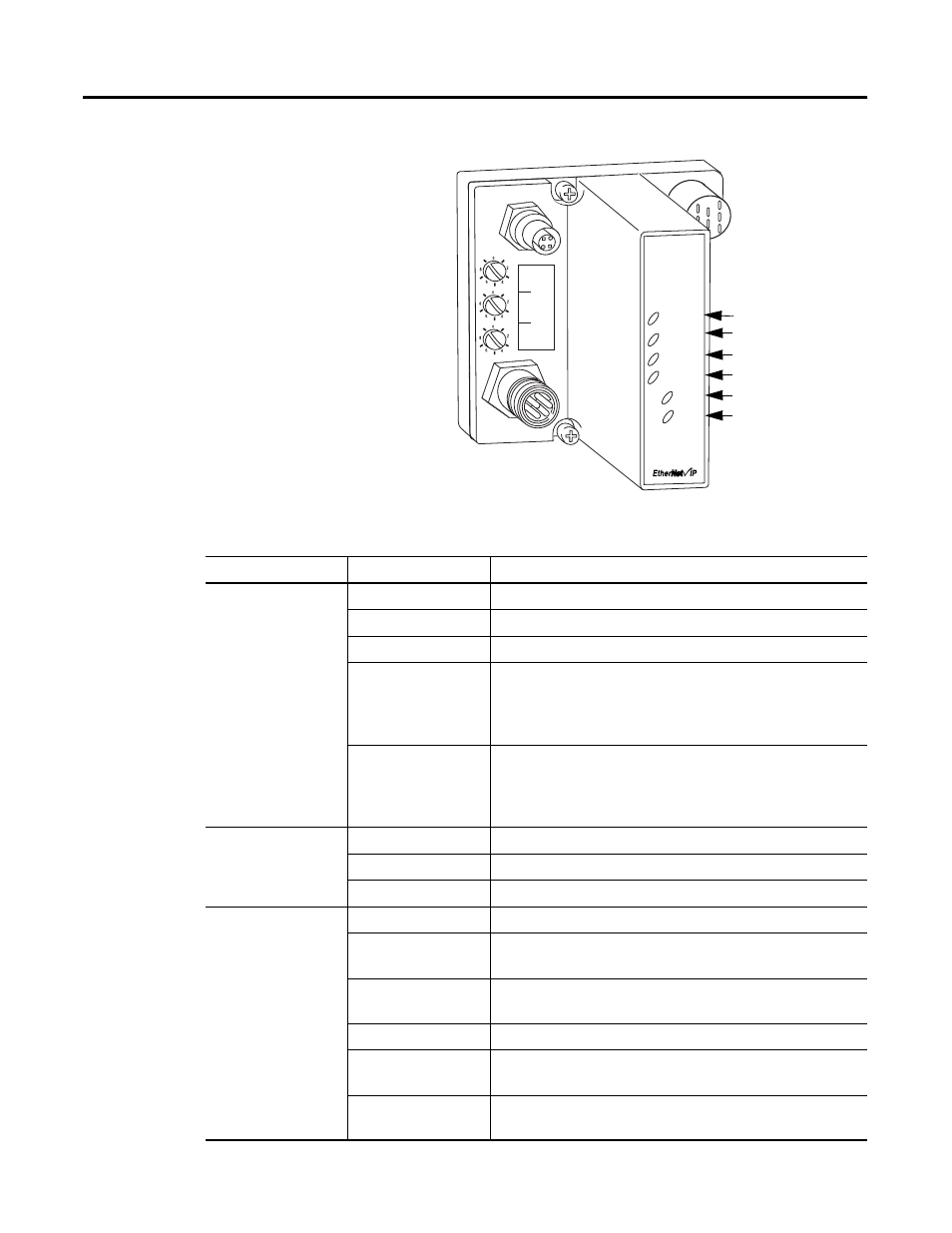

Troubleshoot with
the Indicators
1738-AENT
EtherNet I/P
Adapter
Status
Network
Activity
Network
Status
PointBus
Status
System
Power
Adapter
Power
X100
X10
X1
conformance tested ™
PWR
P
A
D
D
R
E
S
S
I
Adapter Status Indicator
Network Activity Indicator
Network Status Indicator
System Power Indicator
Adapter Power Indicator
43798
PointBus Status Indicator
Indication Indication Probable Cause
Adapter Status Off No power applied to the device.
Flashing Red/Green LED power up test (module self test).
Green Device is operating normally.
Flashing Red Recoverable fault has occurred:
- Firmware (NVS) update
- Network IP address changed
- CPU load exceeded.
Solid Red Unrecoverable fault has occurred:
- self test failure (checksum failure at power up, ramtest)
failure at powerup
- firmware fatal error.
Network Activity Off No link established.
Flashing Green/Off Transmit or receive activity.
Green Link established.
Network Status Off Device is not initialized. The module does not have an IP address.
Flashing Green No CIP connections. Device has an IP address, but no CIP
connections are established.
Green CIP connections. Device on line, has an IP address, and CIP
connections are established.
Flashing Red One or more Ethernet connections has timed out.
Red No link. The module is not physically connected to a powered
Ehternet device.
Flashing Red/Green The module is performing a self test (only occurs during power up
test).
