4 POINTBlock dc 16 Input Module
Publication 1734D-IN002A-EN-P - April 2001
5. Slide the block module down allowing the interlocking side
pieces to engage the adjacent module/adapter.
6. Press firmly to seat the block module on the DIN rail. The
module locking mechanism will snap into place.
Setting the Node Address
To set the node address, set the combination of 1’s and 10’s to
correspond to the required address. (For example, for 61, set the 10’s
switch to 6 and the 1’s switch to 1.)

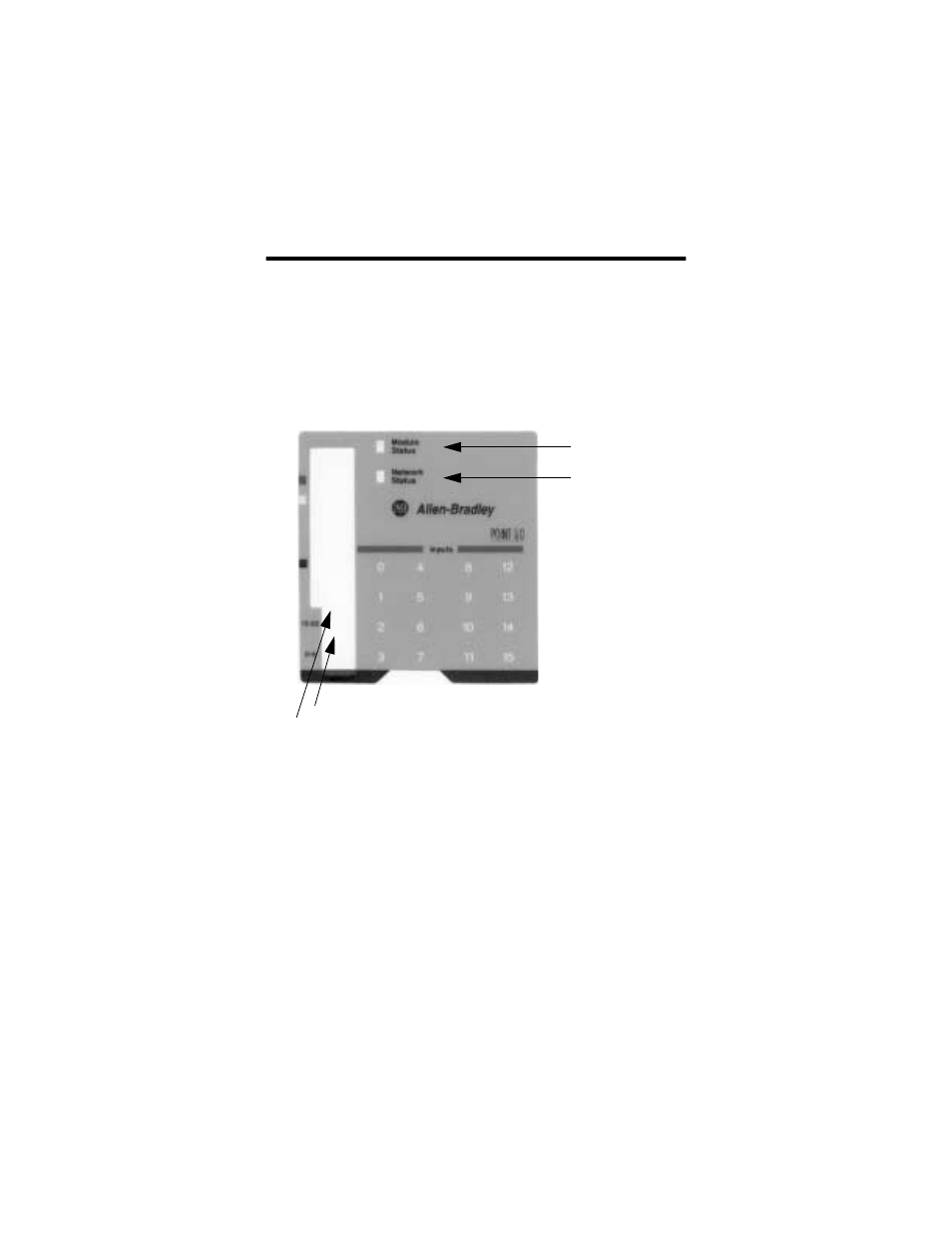

42004
10’s Node Address Rotary Switch
1’s Node Address Rotary Switch
Module Status
Network Status
I/O status
