Page 6
6
2 Sinking Input / 2 Output Module
Publication 1792D-5.25- January 1999

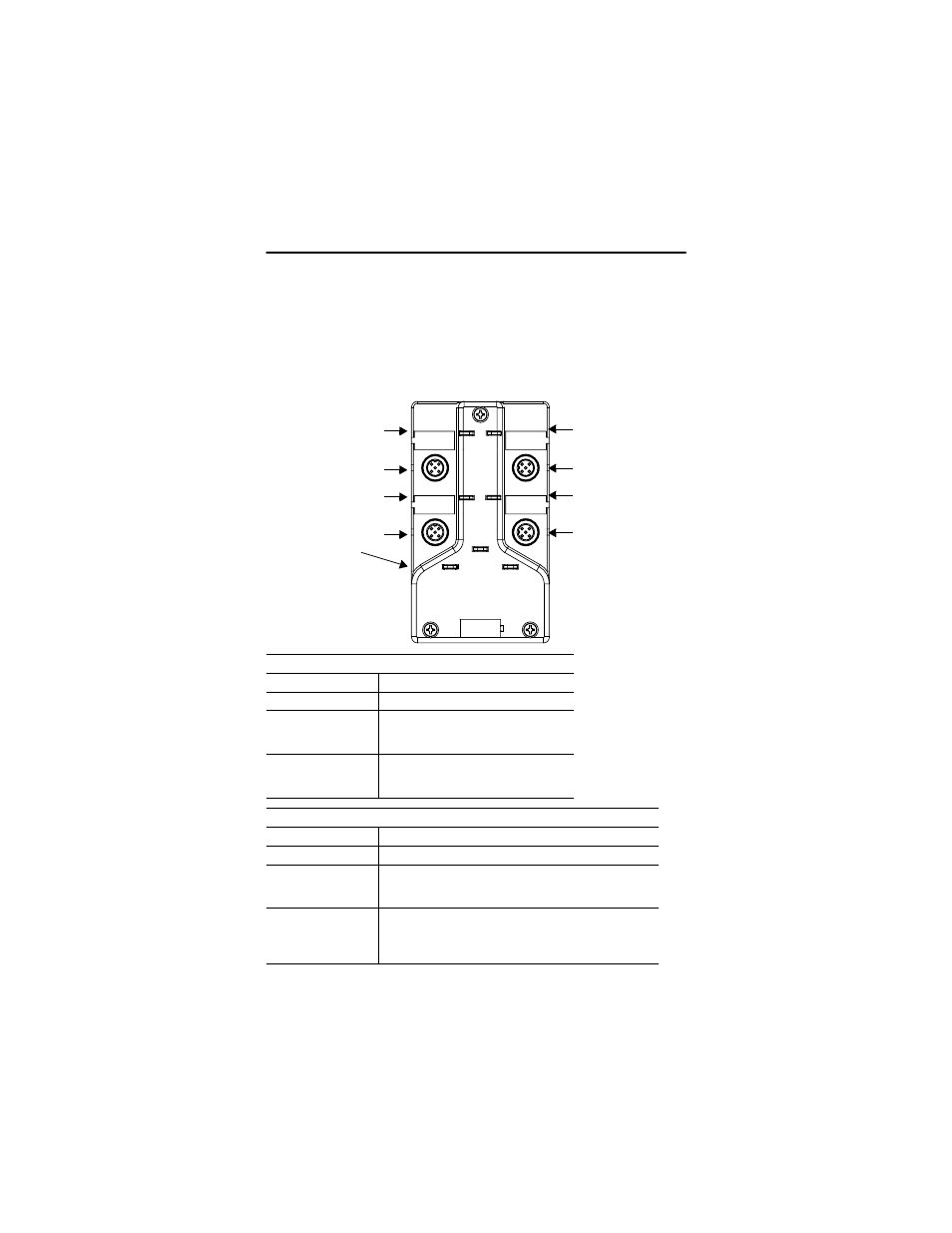

Troubleshoot with the Indicators
This module has the following indicators:
• Network status indicator
• Module status indicator
• Auxiliary Power indicator
• Individual point status indicators for inputs 0, 1 and outputs 0, 1
Module Status Indicator
Indication
Status
None
No Power
Green
Blinking
Solid
Needs Commissioning
Operating Normal
Red
Blinking
Solid
Recoverable Fault
Unrecoverable Fault
Network Status Indicator
Indication
Status
None
Not On-line
Green
Blinking
Solid
On-line/No Connections
On-line/Connected
Red
Blink
Solid
Connection Timed Out
Failed Communication: A duplicate node address exists or
module is at the wrong baud rate.
I0
I1
O0
O1
Auxiliary Power
Network Status
Module Status
Point indicator for input I0
41454
Point indicator for output O1
Point indicator for input I1
DeviceNet Indicators
Connector A
Connector B
Connector C
Connector D
Point indicator for output O0
