4 2 Sinking Input / 2 Output Module
Publication 1792D-5.25- January 1999

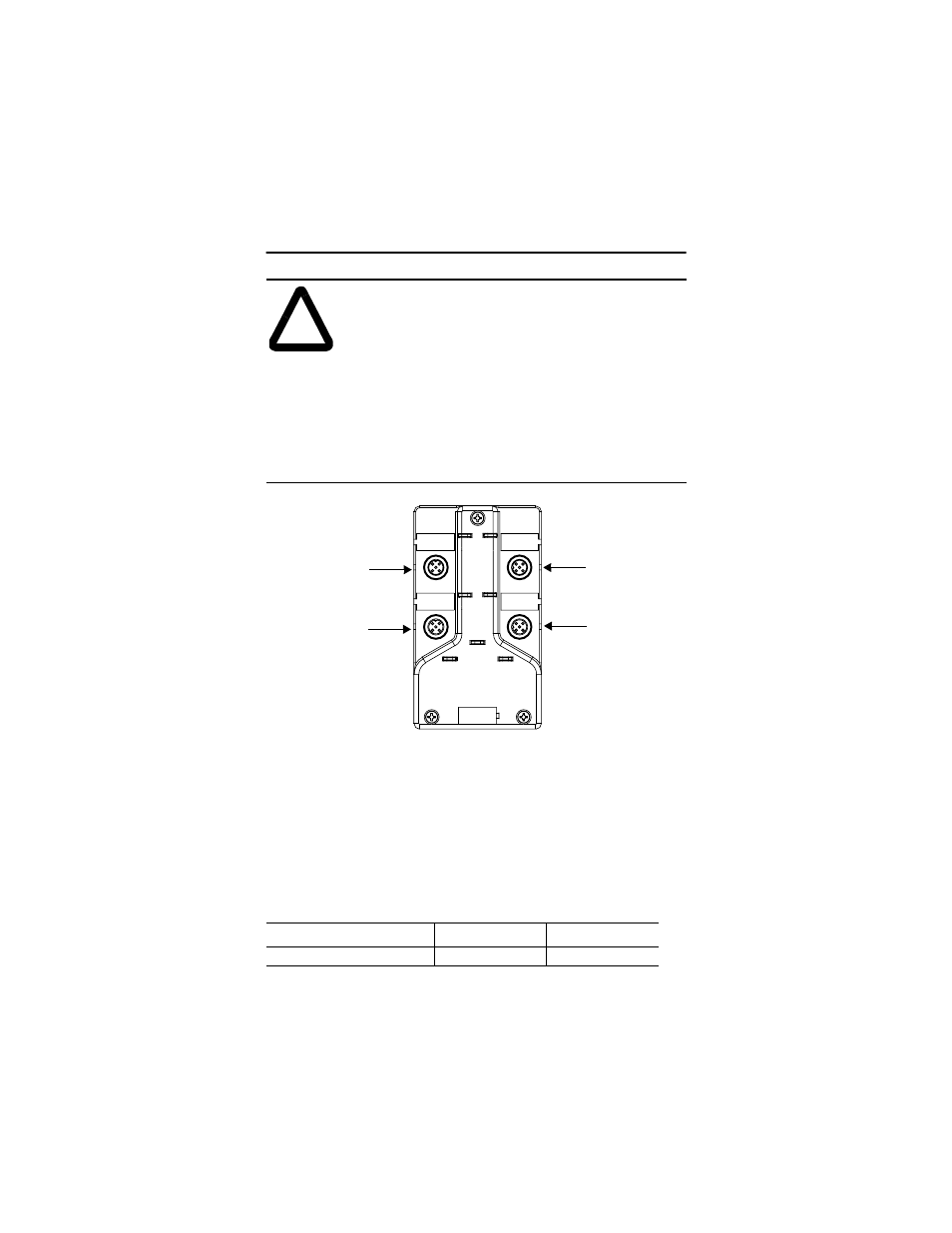

I/O connectors for this module are shown below.
Connect Output Power and DeviceNet Cables
Output power and DeviceNet cables are described in the installation
publication for the cable base assembly of your choice. Refer to the
DeviceNet Cable Planning and Installation Manual (DN-6.7.2).
Communicate With Your ArmorBlock LP2 I/O Module
This ArmorBlock module’s I/O is exchanged with the master through a
poll, change of state, or cyclic connection.
The module consumes and produces I/O data as follows:
!
ATTENTION:
• Make sure to connect the proper color coded cables
together. DeviceNet cable should connect with DeviceNet
cables and auxillary ouput should match auxillary output.
• Make sure all connectors and caps are securely tightened
to properly seal the connections against leaks and
maintain IP67 requirements
• For maximum noise immunity, input and output cable
return wires must be properly terminated. When inputs
and outputs are connected in loopback, return wires
should be connected together.
• I/O cable length should be less than 30 meters.
Type of I/O Connections Consumes Produces
Cyclic 1 Byte 1 Byte
I0
I1
O0
O1
Auxiliary Power
Network Status Module Status
41454
Input 0
Input 1
Output 0
Output 1
Connector A
Connector B
Connector C
Connector D
