Page 5

5
Publication 1790-IN009B-EN-P - April 2003
Installing CompactBlock LDX I/O
Follow these steps to install the base block:
1. Set the station address on the base block.
2. Mount the base block.
3. Mount the optional expansion blocks.
4. Wire the terminal blocks.
5. Connect the PROFIBUS connector.
6. Connect power to the block.
These steps are explained in detail in the following
procedures.
Set the Station Address on the Base Block

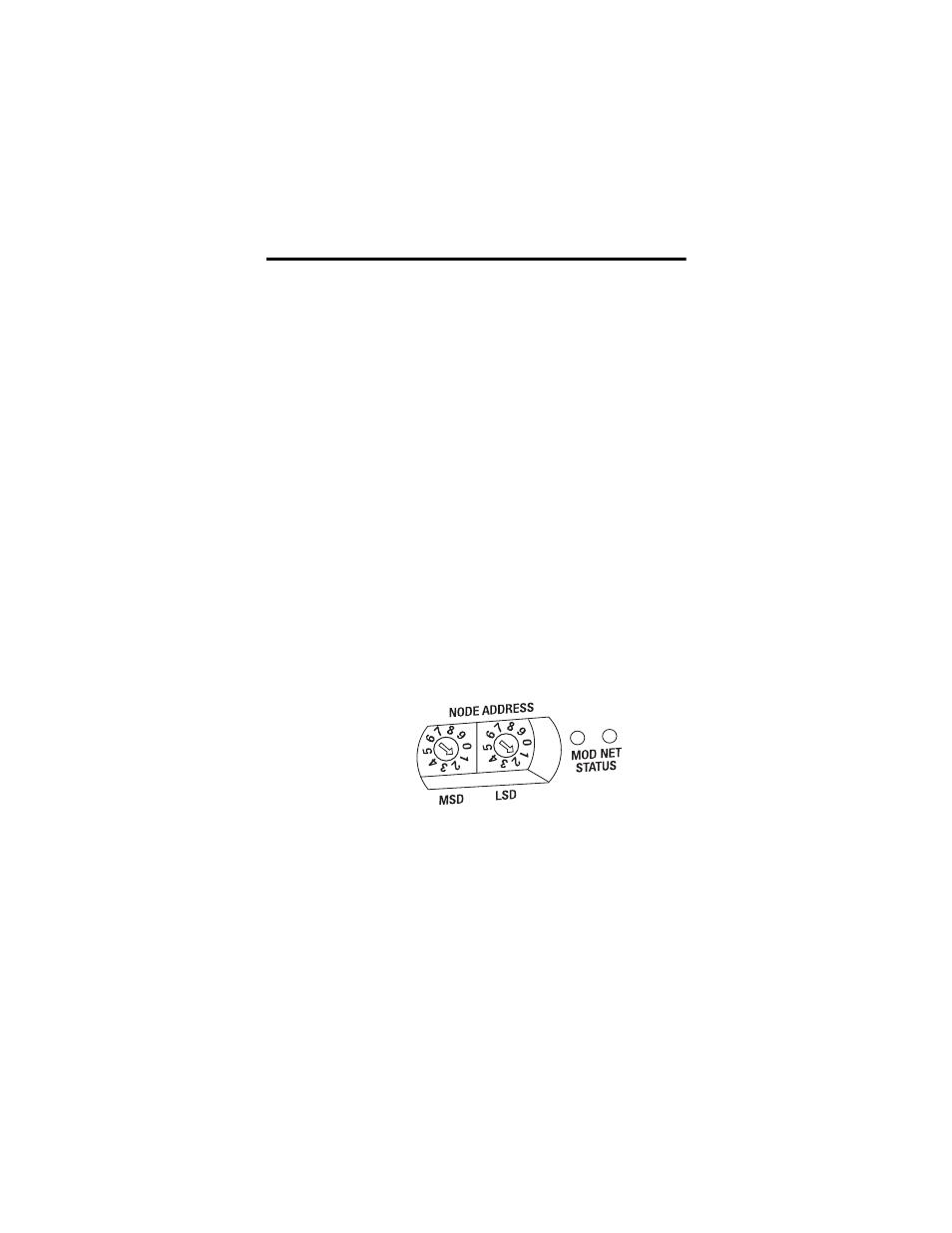

To set the station address, adjust the switches on the front of
the base block. The two switches are most significant digit
(MSD) and least significant digit (LSD). The switches can be
set between 00 and 99.
The base block reads the rotary switches at power-up only
.
Example: Station
Address is set at 11
