Troubleshoot with the indicators, Mod/net status indicator, Individual i/o status indicators – Rockwell Automation 1792-OB4E INSTL.INST ARMORBLOCK 4 OUTPUT User Manual
Page 34
ArmorBlock 4 Output Module
34
Publication 1792-5.4 – October 1996

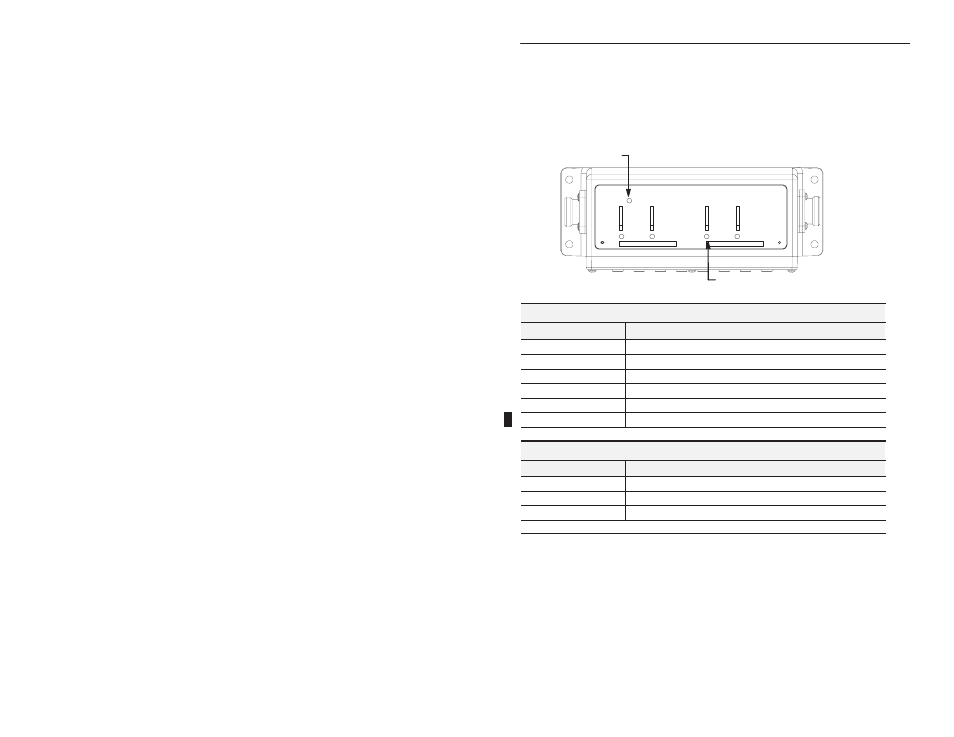

Troubleshoot with the Indicators
The ArmorBlock I/O module has 2 types of indicators:
•
Mod/Net status indicator
•
individual I/O status indicators
Mod/Net Status Indicator
MOD/NET
STATUS
NODE
ADDRESS
DA
TA
RA
TE
ARMORBLOCK I/O
1792-OB4E
Output I/O Status Indicators
Mod/Net Status Indicator
Indication
Status
OFF
No power, or no network access, or incorrect baud rate
1
Flashing Green/OFF
On-line but not connected
Solid Green
On-line, link okay, connected
Flashing Red
Recoverable fault
Solid Red
Critical failure, or duplicate node address present
Green to Red to Off
At powerup only – The module is autobauding
1
This only occurs when Autobaud is disabled, and the module is set to an incorrect baud rate.
Output I/O Status Indicator
Indication
Status
OFF
Output is off
Yellow
Output is on
Red (see note)
Output is faulted
Note: A faulted output may cause adjacent outputs to fault.
