5
Publication 1794-IN083B-EN-P - November 2004

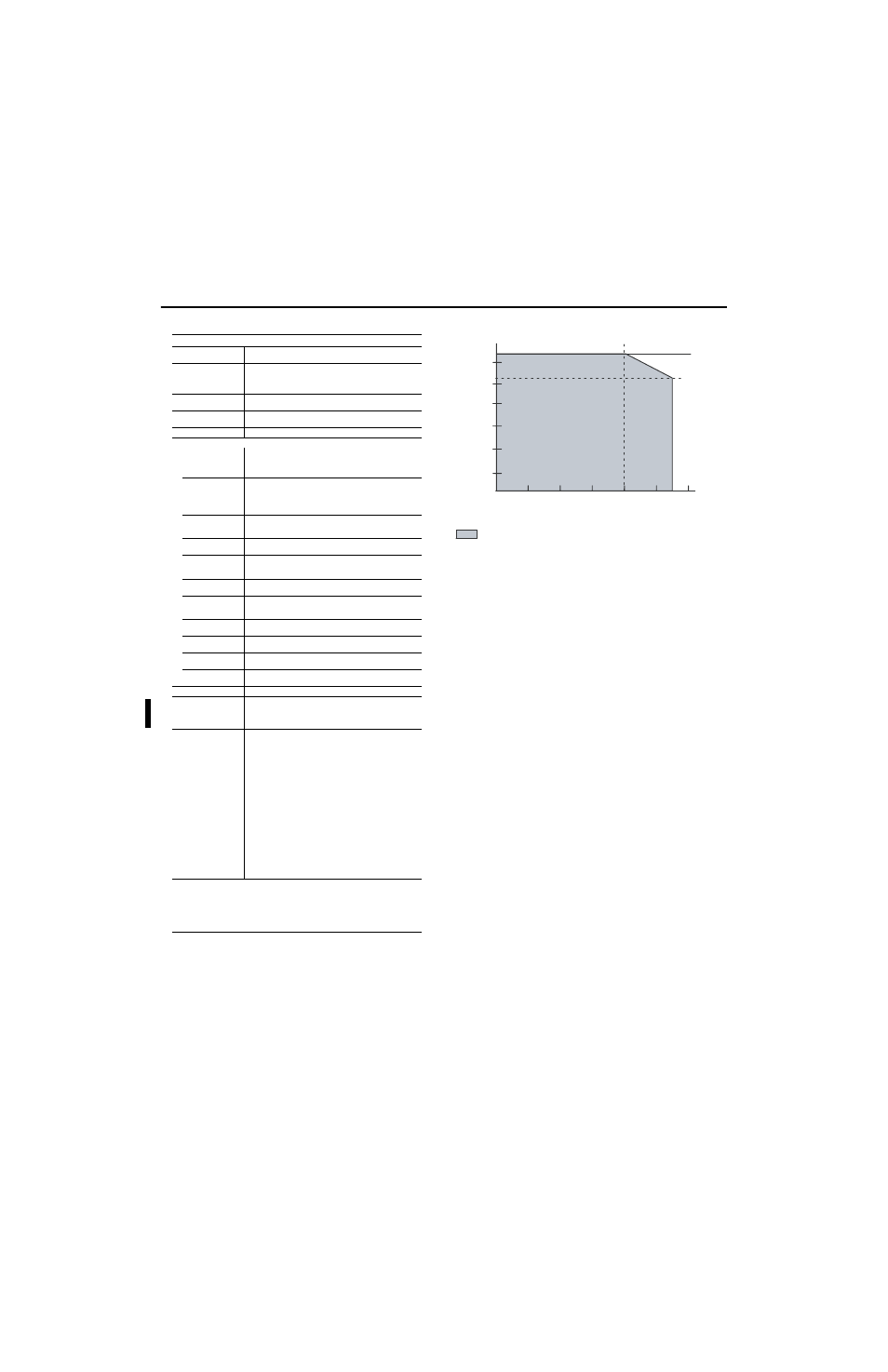

Derating Chart for the 1794-IB16XOB16P
General Specifications
Module Location 1794-IB10XOB6 - Cat. No. 1794-TB2, -TB3, -TB3S Terminal Base Unit
1794-IB16XOB16P - 1794-TB32, -TB32S Terminal Base Unit
Input Filter Time 2
Off to On
On to Off
0.25ms, 0.5ms, 1ms, 2ms, 4ms, 8ms, 16ms, 32ms
0.25ms, 0.5ms, 1ms, 2ms, 4ms, 8ms, 16ms, 32ms
0.25ms default - Selectable
Terminal Base Screw
Torque 7 pound-inches (0.8Nm)
Dimensions (with module
installed) 3.7H x 3.7W x 2.7D inches
94H x 94W x 69D mm
Keyswitch Position 2
Environmental Conditions
Operating
Temperature IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock):
0 to 55°C (32 to 131°F)
Storage Temperature IEC 60068-2-1 (Test Ab, Un-packaged Non-operating Cold),
IEC 60068-2-2 (Test Bb, Un-packaged Non-operating Dry Heat),
IEC 60068-2-14 (Test Na, Un-packaged Non-operating Thermal
Shock):
–40 to 85°C (–40 to 185°F)
Relative Humidity IEC 60068-2-30 (Test Db, Un-packaged Non-operating
Damp Heat):
5 to 95% non-condensing
Vibration IEC60068-2-6 (Test Fc, Operating):
5g @ 10-500Hz
Shock IEC60068-2-27 (Test Ea, Unpackaged shock):
Operating 30g
Non-operating 50g
Emissions CISPR 11:
Group 1, Class A (with appropriate enclosure)
ESD Immunity IEC 61000-4-2:
4kV contact discharges
8kV air discharges
Radiated RF Immunity IEC 61000-4-3:
10V/m with 1kHz sine-wave 80%AM from 30MHz to 1000MHz
EFT/B Immunity IEC 61000-4-4:
±2kV at 5kHz on signal ports
Surge Transient
Immunity IEC 61000-4-5:
±1kV line-line(DM) and ±2kV line-earth(CM) on signal ports
Conducted RF
Immunity IEC 61000-4-6:
10Vrms with 1kHz sine-wave 80%AM from 150kHz to 30MHz
Enclosure Type Rating None (open-style)
Conductors Wire Size
Category 3
22-12AWG (0.34-2.5mm 2 ) stranded copper wire rated at 75°C or
higher
3/64 inch (1.2mm) insulation maximum
2
Certifications (when
product is marked)
4
UL UL Listed Industrial Control Equipment (1794-IB10XOB6)
C UL US UL Listed Industrial Control Equipment, certified for US and
Canada (1794-IB16XOB16P)
C UL US UL Listed for Class I, Division 2, Groups A, B, C and D
Hazardous locations certified for US and Canada
(1794-IB16XOB16P)
CSA CSA certified for Class I, Division 2, Groups A, B, C and D
Hazardous locations (1794-IB10XOB6 only)
EEx 4 European Union 94/9/EEC ATEX Directive, compliant with:
EN 50021; Potentially Explosive Atmospheres,
Protection “n” (Zone 2) - (1794-IB10XOB6 only)
CE 5 European Union 89/336/EEC EMC Directive,
compliant with:
EN 61000-6-4; Industrial Emissions
EN 50082-2; Industrial Immunity
EN 61326; Meas./Control/Lab., Industrial Requirements
EN 61000-6-2; Industrial Immunity (1794-IB10XOB6,
1794-IB16XOB16P)
C-Tick 4 Australian Radiocommunications Act compliant with
AS/NZS CISPR 11, Industrial Emissions (1794-IB10XOB6,
1794-IB16XOB16P)
1 Output off-to-on or on-to-off delay is the time from the module issuing an output on or off until the output actually
turns on or off.
2 Input off-to-on filter time is the time from a valid input signal to recognition by the module. Input on-to-off filter
time is time from the input signal dropping below the valid level to recognition by the module.
3 You use this category information for planning conductor routing as described in Allen-Bradley
publication 1770-4.1, Industrial Automation Wiring and Grounding Guidelines.
4 For the latest up-to-date information, see the Product Certification link at www.ab.com for Declarations of
Conformity, Certificates and other certification details. For notification of any additional release notes, refer to
www.ab.com/manuals/.
0
0
10 20 30 40 50 55 60
V in
O n–state
Voltage
(V dc)
and
Output
Voltage
(V dc)
Ambient Temperature o C
The area within the curve represents the safe operating range for the module under
various conditions of user supplied dc supply voltages and ambient temperatures.
= All mounting positions (including normal horizontal, vertical,
inverted horizontal) safe operating range
5
10
15
26.4
30
20
25
31.2
