Page 4

4 Sinking Input / 4 Output Module

Publication 1792D-5.26 - January 1999

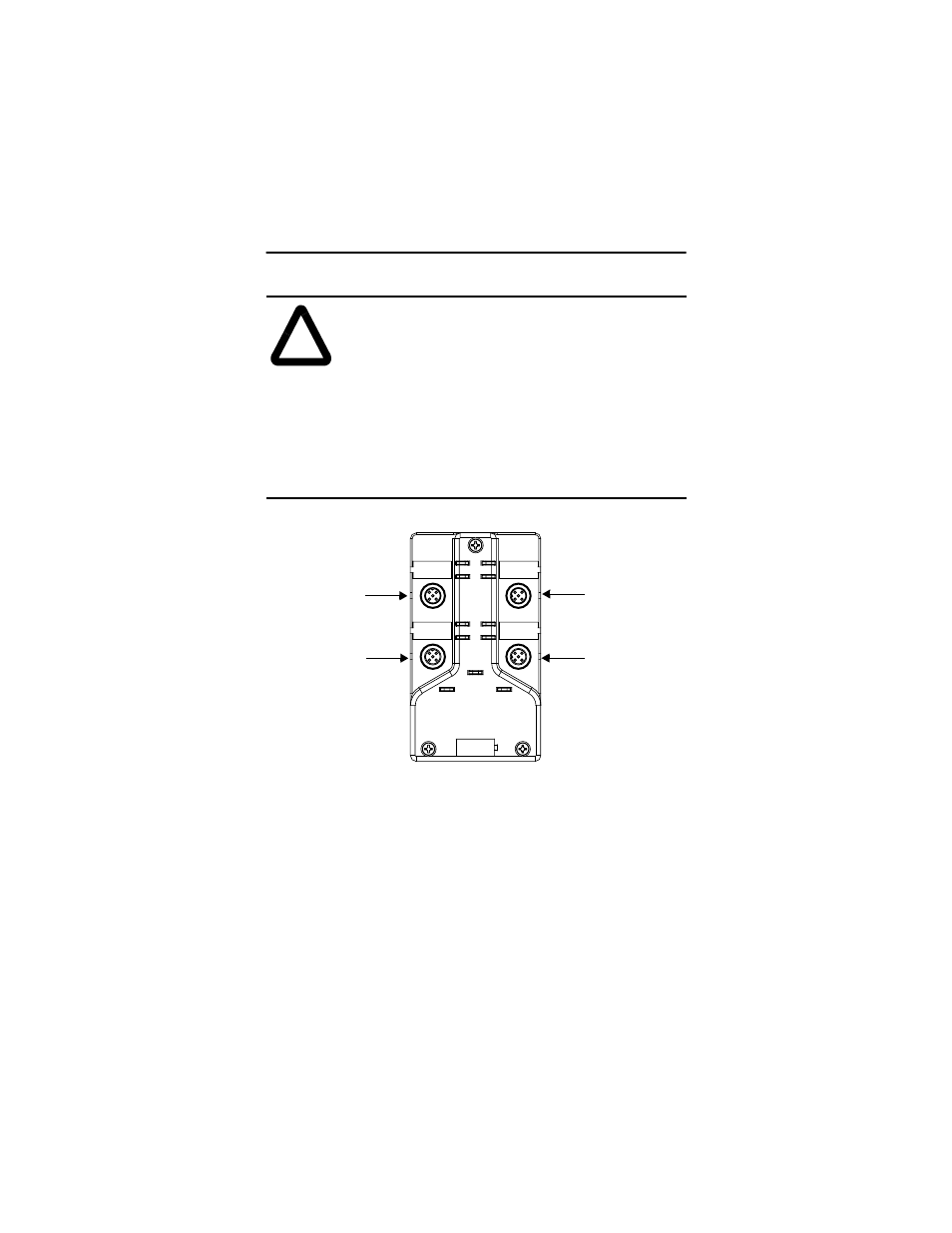

I/O connectors for this module are shown below.

Output Power and DeviceNet Cables

Refer to the DeviceNet Cable Planning and Installation Manual for more
information on output power and DeviceNet cables for your application.

ATTENTION:

• Make sure to connect the proper color coded cables together.

DeviceNet cable should connect to DeviceNet cables and
auxillary outputs should match auxillary outputs.

• Make sure all connectors and caps are securely tightened

to properly seal the connections against leaks and
maintain IP67 requirements

• For maximum noise immunity, input and output cable

return wires must be properly terminated. When inputs
and outputs are connected in loopback, return wires
should be connected together.

• I/O cable length should be less than 30 meters.

Auxiliary Power

Network Status

Module Status

Output 0

Input 0

30706-M

Input 1

Input 2

Input 3

Output 1

Output 2
Output 3

Connector A

Connector B

Connector C

Connector D
