ArmorBlock MaXum I/O Cable Bases Series B 5
Publication 1792D-IN009B-EN-P - September 2000

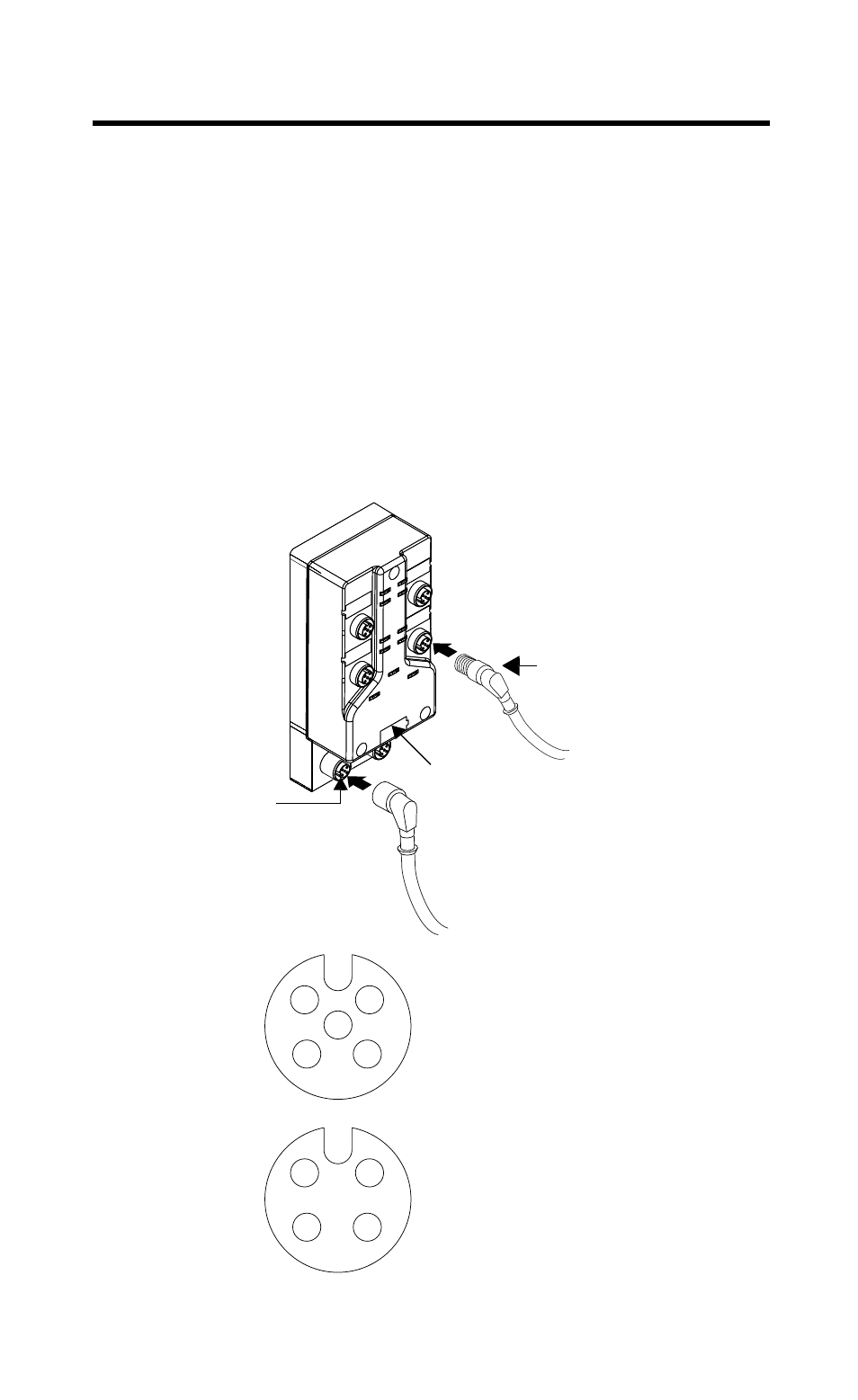

Attach the Cables
1. Attach your network cable and power cable (if used) to the
connectors.
Note: The network and power cables drop straight down
away from the module.
2. Cover the power connector with a micro cap if it is not used.
3. Attach your point connector cables.
Note: Point connector cables drop at a 45 degree angle
because of the pin settings, if you use a right angle connector.
4. Cover any unused point connectors with micro caps.
1
5
3
4
2
1
3
4
2
30838
Point connector cable with a right
angle connector
4 pin output power
connector
5 pin network
connector
41583
41584
DeviceNet Male Connector
Auxiliary Output Male Connector
Pin 1 Drain
Pin 2 V+
Pin 3 V-
Pin 4 CAN_H
Pin 5 CAN_L
Pin 1 24Vdc
Pin 2 24Vdc
Pin 3 Return
Pin 4 Return
