All parameters are specified at 24V, 2.5A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.
4 Rockwell Automation Publication 1606-RM031A-EN-P — April 2014
Bulletin 1606 Switched Mode Power Supplies
3. AC Input
AC input nom. 3AC 380-480V TN, TT, IT-mains networks,
grounding of one phase is allowed except for UL508
applications
AC input range 3x 323-576Vac continuous operation
3x 576-700Vac for max. 1 second, occasional (not periodical)
3x 200-323Vac full power for 200ms, no damage between 0 and 200Vac
Allowed Voltage Phase to Earth 500Vac IEC 62103
Input frequency nom. 50–60Hz ±6%
Turn-on voltage typ. 3x 260Vac steady-state value, see Fig. 3-1
Shut-down voltage typ. 3x 185Vac steady-state value, see Fig. 3-1
3AC 400V 3AC 480V
Input current typ. 0.7A 0.6A at 48V, 5A, symmetrical phase voltage,
see Fig. 3-3
Power factor *) typ. 0.53 0.52 at 48V, 5A, see Fig. 3-4
Start-up delay typ. 90ms 90ms see Fig. 3-2
Rise time typ. 55ms 55ms 0mF, 48V, 5A, see Fig. 3-2
typ. 140ms 140ms 5mF, 48V, 5A, see Fig. 3-2
Turn-on overshoot max. 300mV 300mV see Fig. 3-2
*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.

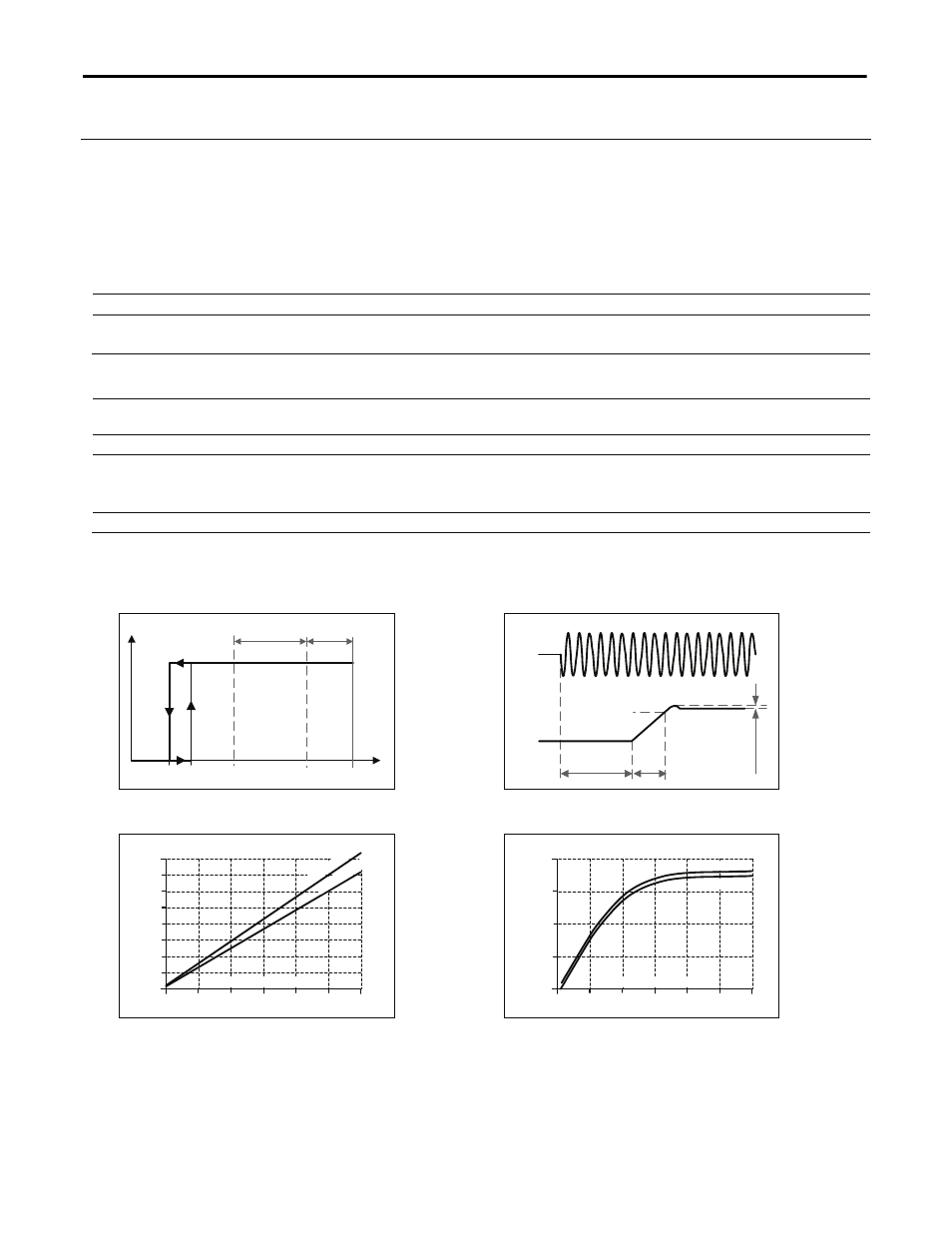

Fig. 3-1 Input voltage range Fig. 3-2 Turn-on behavior, definitions
Turn-on
323V
Rated input
range
V
IN
P
OUT
185V 576V
Shut
-do
wn
260V 3x700Vac
< 1s
Start-up
delay
Rise
Time
Ov
ersh
oot
- 5%
Output
Voltage
Input
Voltage
Fig. 3-3 Input current vs. output load at 24V Fig. 3-4 Power factor vs. output load
6A 0 1 3 4
0
0.1
0.2
0.4
0.5
0.6
0.8A
Input Current, typ.
Output Current
2 5
0.3
0.7
3x
48
0V
ac
3x
40
0V
ac
6A 0 1 3 4
0.35
0.40
0.45
0.50
0.55
Power Factor, typ.
Output Current
2 5
3x480Vac
3x400Vac
