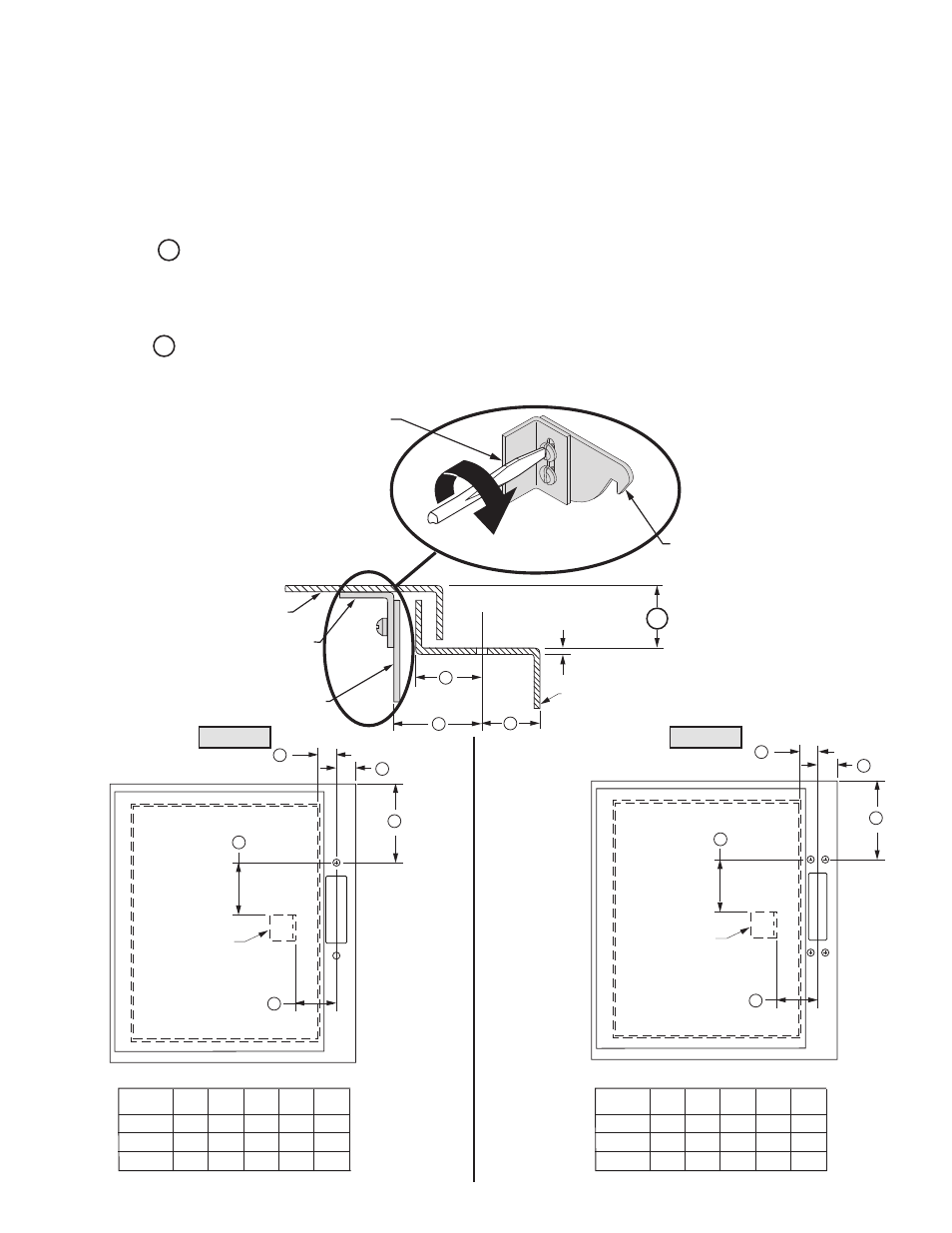

Enclosure Requiring Door Catch Bracket
Right-hand installation shown with or without enclosure door vault hardware
(Left-hand installation unavailable)
Door Catch
Mounting
Bracket
E
D
B
C
A
C
B
Enclosure Door Flange
Thickness
K
D
Enclosure
Base
TOP VIEW
Door Catch Mounting Bracket:
L Provided with projections for welding.
L Projections can also be used as a guide for drilling holes.
L Can be used as a template to drill corresponding holes in the enclosure door.
L User to supply the hardware for fastening the bracket.
L The bracket hardware must be inaccessible to unauthorized personnel.
L Fasteners must provide the degree of ingress protection for the environmental rating of the enclosure.
Dimension K (3/4" to 1")
L When installed in any size enclosure without door vault hardware, use door catch provided with disconnect switch kit.
L When installed in small and intermediates size enclosures (15 inches to 40 inches) using door vault hardware kits
(1494F-L1, 1494F-L2 and 1494F-L3), use door catch with pivot lever provided with disconnect switch kit. Discard the door catch
supplied with the door vault hardware kit.
Dimension K (1-1/8" to 1-3/8")
L When installed in large enclosure using door vault hardware kit (1494F-L4), use the door catch assembly with the pivot lever
included with the disconnect switch. Discard the door catch supplied with the door vault hardware kit.
Enclosure Dimensions
2 - 1/8"
D
2 - 1/8"
2 - 1/8"
E
3 - 13/16"
3 - 13/16"
3 - 13/16" 1 - 1/16"
C
(max)
1 - 1/16"
1 - 1/16"
B
(min)
1 - 3/16"
1 - 3/16"
1 - 3/16"
A
(min)
2 - 3/4"
4 - 1/4"
8 - 1/4"
NEMA
SIZE
30A, 60A
200A
100A
Enclosure Dimensions
2 - 1/8"
J
2 - 1/8"
2 - 1/8"
K
3 - 9/16"
3 - 9/16"
3 - 9/16" 1 - 1/16"
H
(max)
1 - 1/16"
1 - 1/16"
G
(min)
1 - 3/16"
1 - 3/16"
1 - 3/16"
F
(min)
3"
4 - 1/2"
8 - 1/2"
NEMA
SIZE
30A, 60A
200A
100A
Door Catch
Mounting Bracket
Door Catch
Mounting Bracket
Door Catch
Door Catch (used without door
vault hardware kits)
Top
Door Catch
Mounting
Bracket
K
J
G
H
F
Option 1 Option 2
