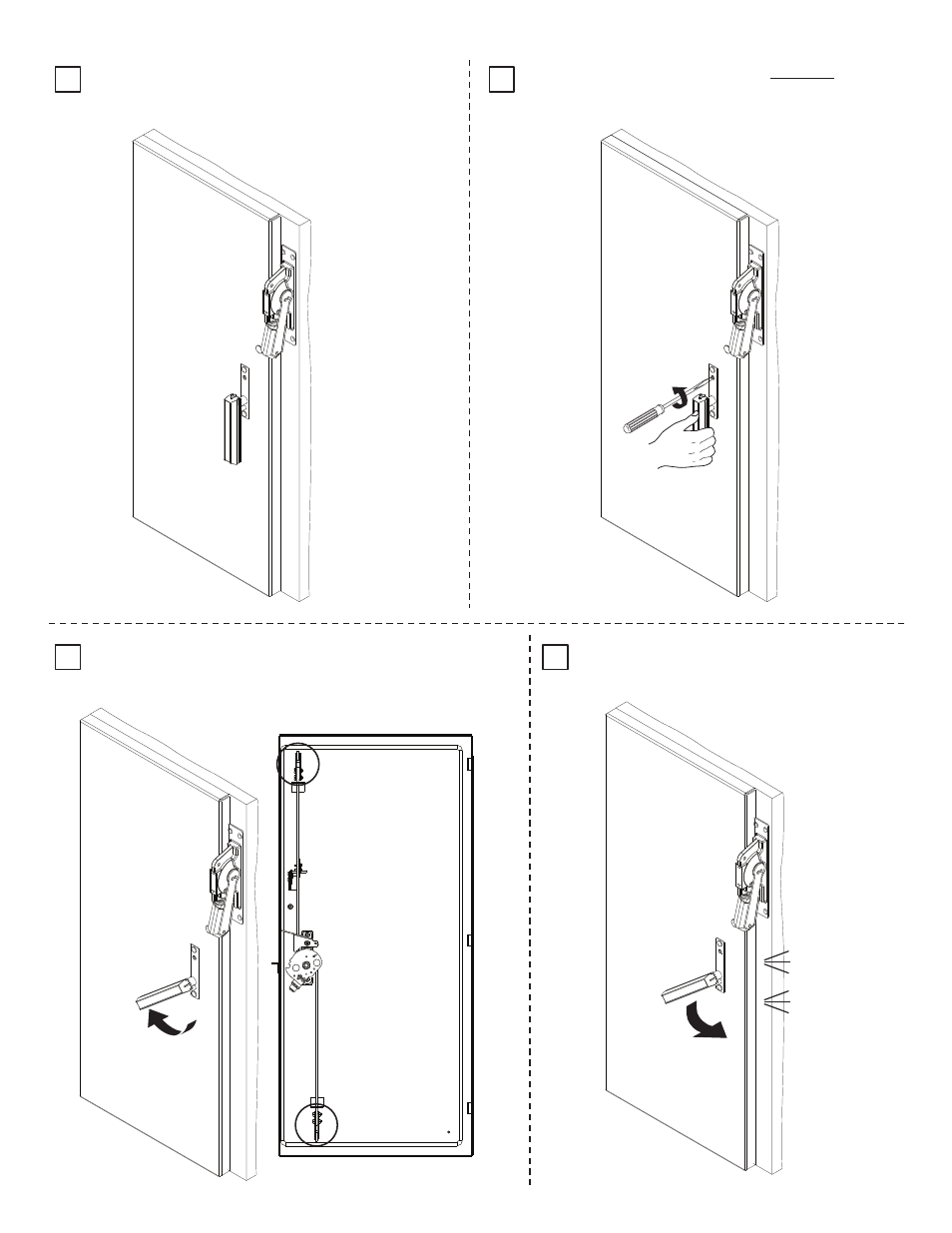

Testing Vault Hardware Latching and Enclosure Seal
Close door against enclosure base. The door handle should
be in the 6 o’clock position in line with the length of the door
when fully latched and the enclosure is sealed. Turn release screw counterclockwise and hold screw in that
position to release initial catch from beneath enclosure flange.
Handle should rotate clockwise to approximately the 9 o’clock
position under spring action. The locking bars should have
retracted from top and bottom of door and center latch cleared
right hand flange.
Reclose door against enclosure base. Turn door handle
counterclockwise to the 6 o’clock position. You should
hear two distinct clicks as you turn the handle.
Handle should remain in this position.
“Click”
“Click”
42052-195-01
DIR 10000075001 (Version 00)
(16)
1 2
3 4
