Rockwell Automation 931S-C1A2D-OP Passive Isolator User Manual
Page 4
3
4.
Mounting
The signal conditioners are mounted on standard TS 35 rails.
5.
Electrical connection
Operating temperature 0 °C ... +55 °C

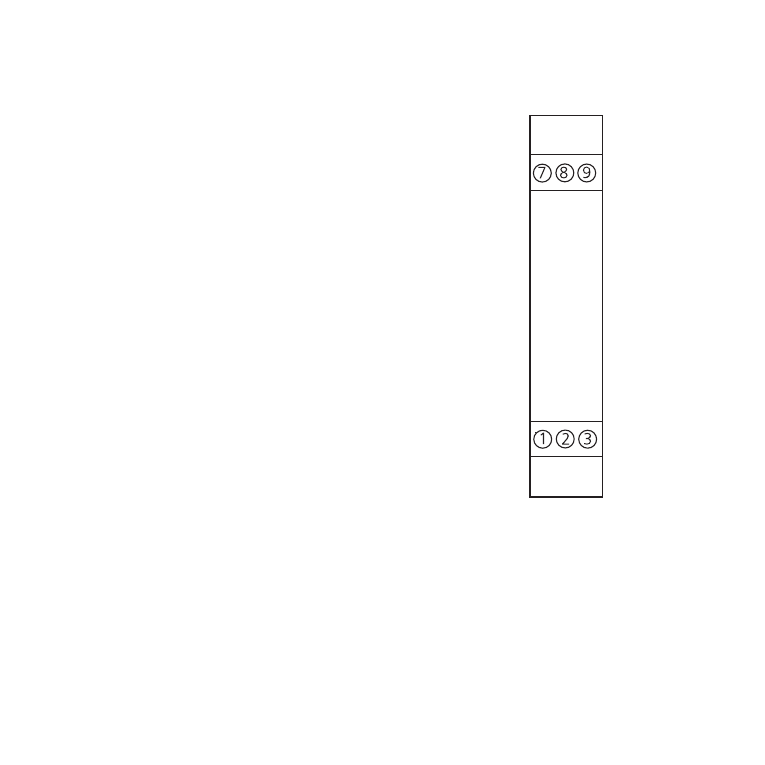

Terminal assignments
1 Current input 0/4... 20mA
2 Voltage input 0...10V
3 Input 0V-reference potential
4 Not assigned
5 Not assigned
6 Not assigned
7 Current loop 4…20 mA +
8 Not assigned
9 Current loop 4…20 mA -
10 Not assigned
11 Not assigned
12 Not assigned
Wire cross-section max. 2.5 mm
2
Multi-wire conncection max. 1 mm
2
(two wires with same cross-section)
