PANELCONNECT INTERFACE MODULE
8-PAGE INSTRUCTION SHEET
REVISION
AUTHORIZATION
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
H
A
B
C
D
E
F
G
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
REFERENCE
SHEET OF DWG.
SIZE
B
DR.
CHKD.
APPD.
DATE
DATE
DATE
ANGLES:
.XXX:
.XX:
LOCATION : MILWAUKEE, WISCONSIN U.S.A.
1 2 3 4 5 6 7 8
E-DOC
±
±
±
5

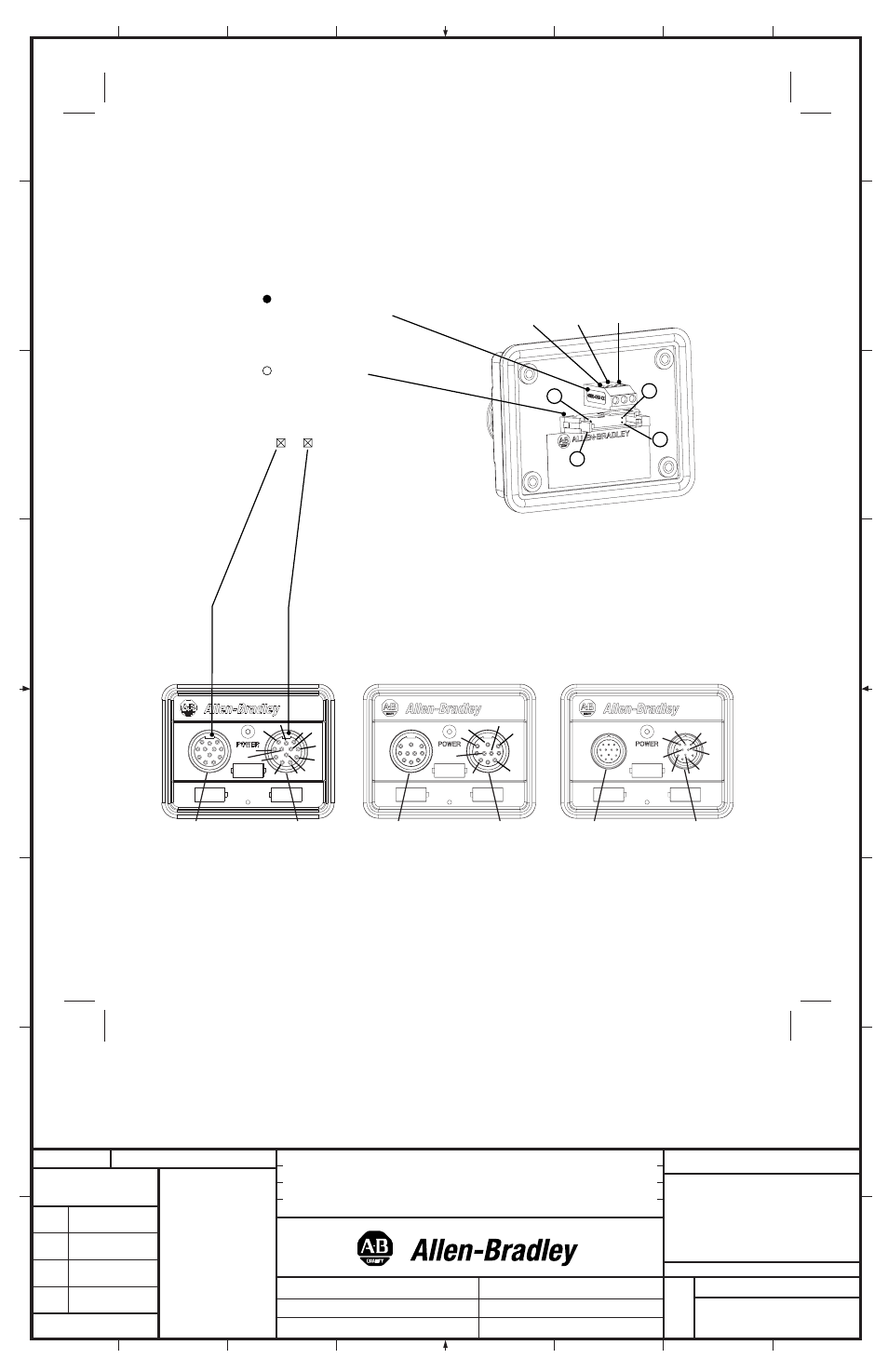

Pinout
Brochage
Anschlußbelegung
Disposizione
dei piedini
Esquema de pins
= Field-side Terminal
= Borne extérieure
= Feldseitiger Terminal
= Terminale lato-campo
= Terminal de campo
= Cable Connector Pins
= Broche de connexion
= Steckerstift
= Pin del connettore
= Pasador de conector
= Power Connection
= Branchement d'alimentation
= Stromversorgungsanschluss
= Collegamento di alimentazione
= Conexión de alimentación
Front View of Female Connections
Vue de Devant des Connecteurs Femellex
Vorderansicht der Steckerbuchsen
Vista Frontale dei Connettori Femmina
Vista Frontal de Conectores Hembra
Terminal Identification Convention
Convention d’identification des bornes
Klemmenbezeichnungskonvention
Convenzioni per l’identificazione dei morsetti
Convención de identificación del terminal
A B
C
20
D E
Power
Alimentation
Netzleitung
Alimentazione
Alimentación
Return
Retour
Netzleitung
Ritorno
Retorno
Ground
Terre
Rückleitung
Massa
Toma de tierra
19
1
2
MINI PLUS
12 PIN 1-1/8 IN Ø
MINI PLUS
10 PIN 1-1/8 IN Ø
M23
12 PIN 23 mm Ø
9
1 10
2
4 5
6 12
7
3
11
8 1
9
8
7
3 5
10
CHANNEL
0-7
CHANNEL
8-15
CHANNEL
0-7
CHANNEL
8-15
CHANNEL
0-7
CHANNEL
8-15
8
1
9
7
10
5
11 3
12
1667-16IA1207
1667-16ID1201
1667-16ID1212
1667-16IA1008
1667-16ID1004
1667-16ID1001 1667-16ID2205
1667-16ID2206
1667-16ID2211
1015835
10004015
