All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time, unless noted otherwise.
2 Rockwell Automation Publication 1606-RM010A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
For N+1 and 1+1 Redundant Systems
Dual Input with Single Output
Suitable for all Power Supplies
Only 72mV Voltage Drop at 20A Output Current
Only 2.15W Loss at 20A and 6.3W at 40A Output Current
160% (65A) Peak Load Capability
Reverse Input Polarity Protection
Full Power Between -40°C and +70°C
Width only 36mm
Rugged Metal Housing
Easy Wiring:
Distribution Terminal for Negative Pole Included
3 Year Warranty
Description

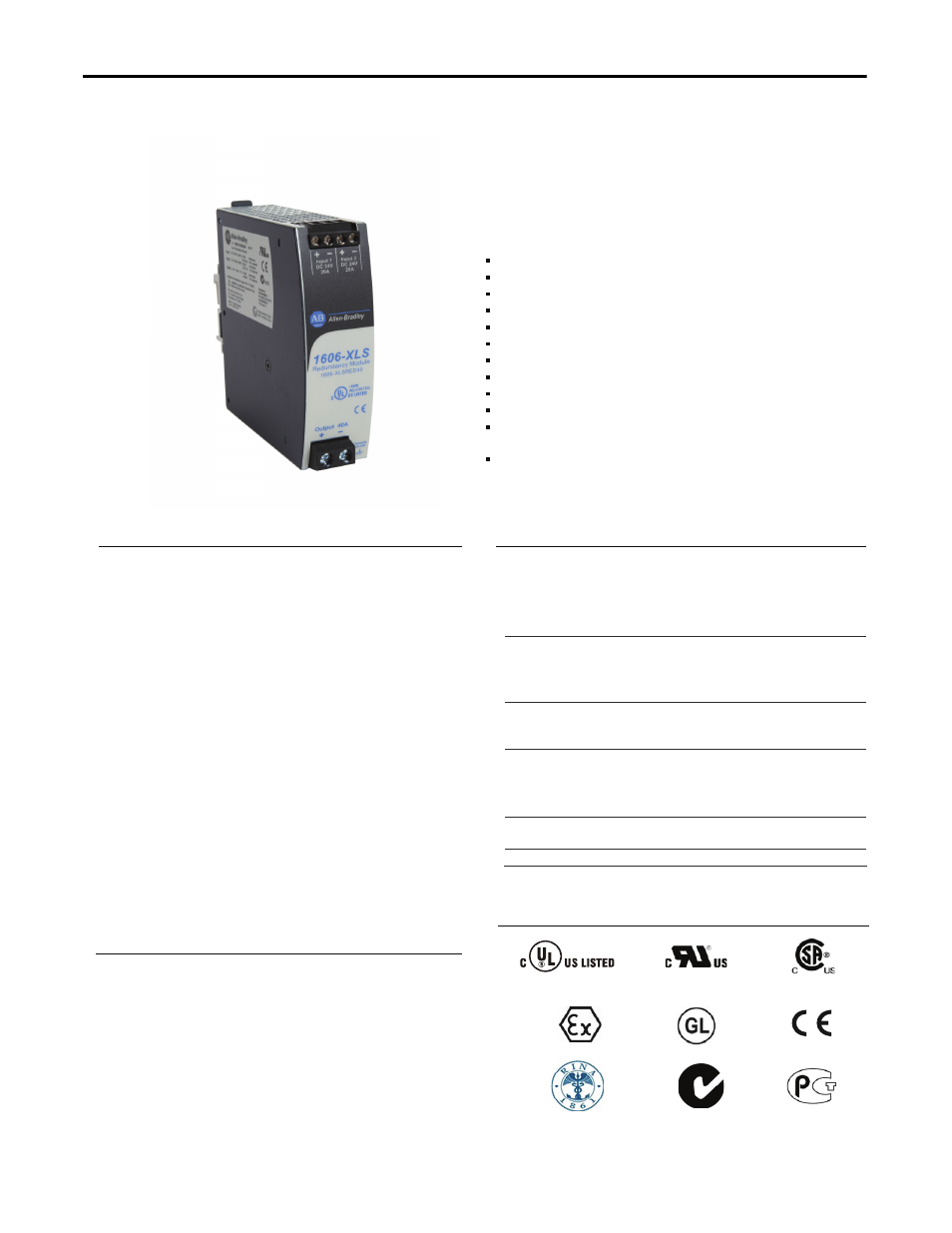

The 1606-XLSRED40 is a redundancy module which can
be used to build 1+1 and N+1 redundant systems. It is
equipped with two input channels, which can be
connected to power supplies with up to 20A output
current and one output, which can carry nominal
currents up to 40A. The module is suitable for power
supplies with constant current overload behavior as well
as any kind of “Hiccup” overload behavior.
The novelty of this redundancy module is the utilization
of mosfets instead of diodes for the decoupling of the
two input channels. This reduces the heat generation
and the voltage drop between input and output. The
redundancy module does not require an additional
auxiliary voltage and is self-sufficient even in case of a
short circuit across the output.
Due to the low power losses, the unit is very slender and
only requires 36mm width on the DIN
rail. Large
connection terminals allow for a safe and fast
installation with a large international approval package.
This unit is suitable for nearly every application.
Specification Quick Reference
Input voltage DC 12-28V ±30%
Input voltage
range 8.4-36.4Vdc
Input current 2x 0-20A continuous
2x 20-32.5A for 5 seconds
Output current 0-40A continuous
40-65A for 5 seconds
65A at cont. overload
or short circuit
Input to output
voltage drop typ. 72mV
typ. 112mV
typ. 140mV input: 2x10A
input: 1x20A
input: 2x20A
Power losses typ. 700mW at no load
typ. 2.15W input: 2x10A
typ. 2.65W input: 1x20A
typ. 6.3W input: 2x20A
Temperature range -40°C to +70°C operational,
no de-rating req.
Dimensions 36x124x127mm *) WxHxD
*) plus 4mm in depth for the screw terminal
Catalog Numbers
Redundancy 1606-XLSRED40 12-28V Standard unit
Module
Accessory 1606-XLC Wall/panel mount
bracket
Certification Marks
IND. CONT. EQ.
UL 508
UL 60950-1
Class I Div 2
IECEx
ATEX
II 3G Ex nA IIC T4 Gc Marine EMC, LVD
Mosfet Redundancy Module
