V. Fuse Installation and Replacement (Continued)

4) To replace the fuse turn the circuit board over. The fuses and fuse information is visible on the circuit board.

NOTES:

1) For conversion module operation a fuse must be inserted into each of the 2 fuse holders.
2) Physical Fuse Size: 5 x 20 mm
3) Possible Fuse Suppliers: Shurter (Part Number:

0034.3123)

and Cooper Bussmann (Part Number:

GMC-4A)

.

4) Fuse Current Rating Based on Conversion System Components: 4 Amps

VI. Conversion Module Re-assembly After Fuse Insertion/Replacement

1) To re-assemble the fused module, place the fuse board into the label side half of the module with the fused side
of the board UP.

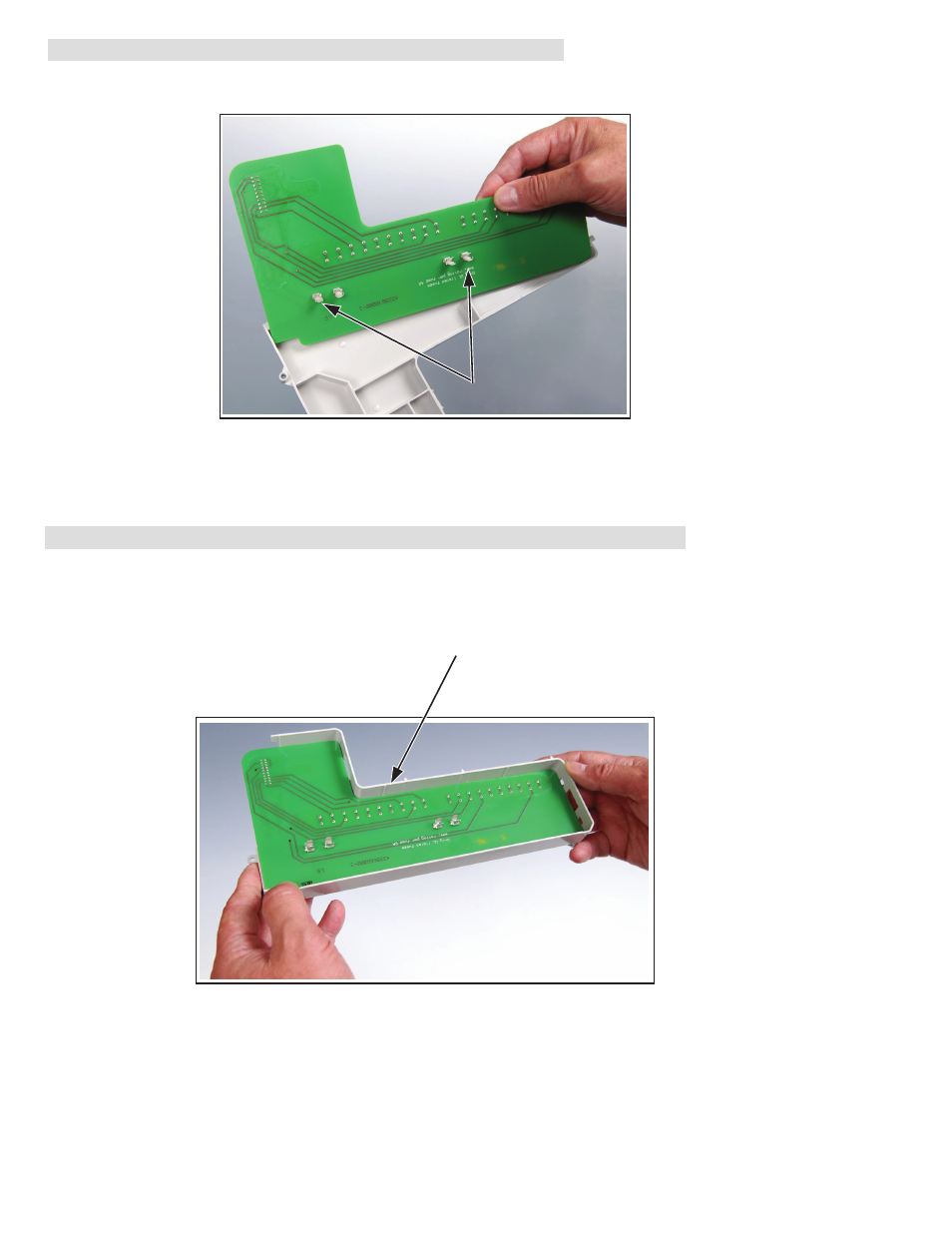

Fuse Holders and
Fuse Data

Case surface with module label
