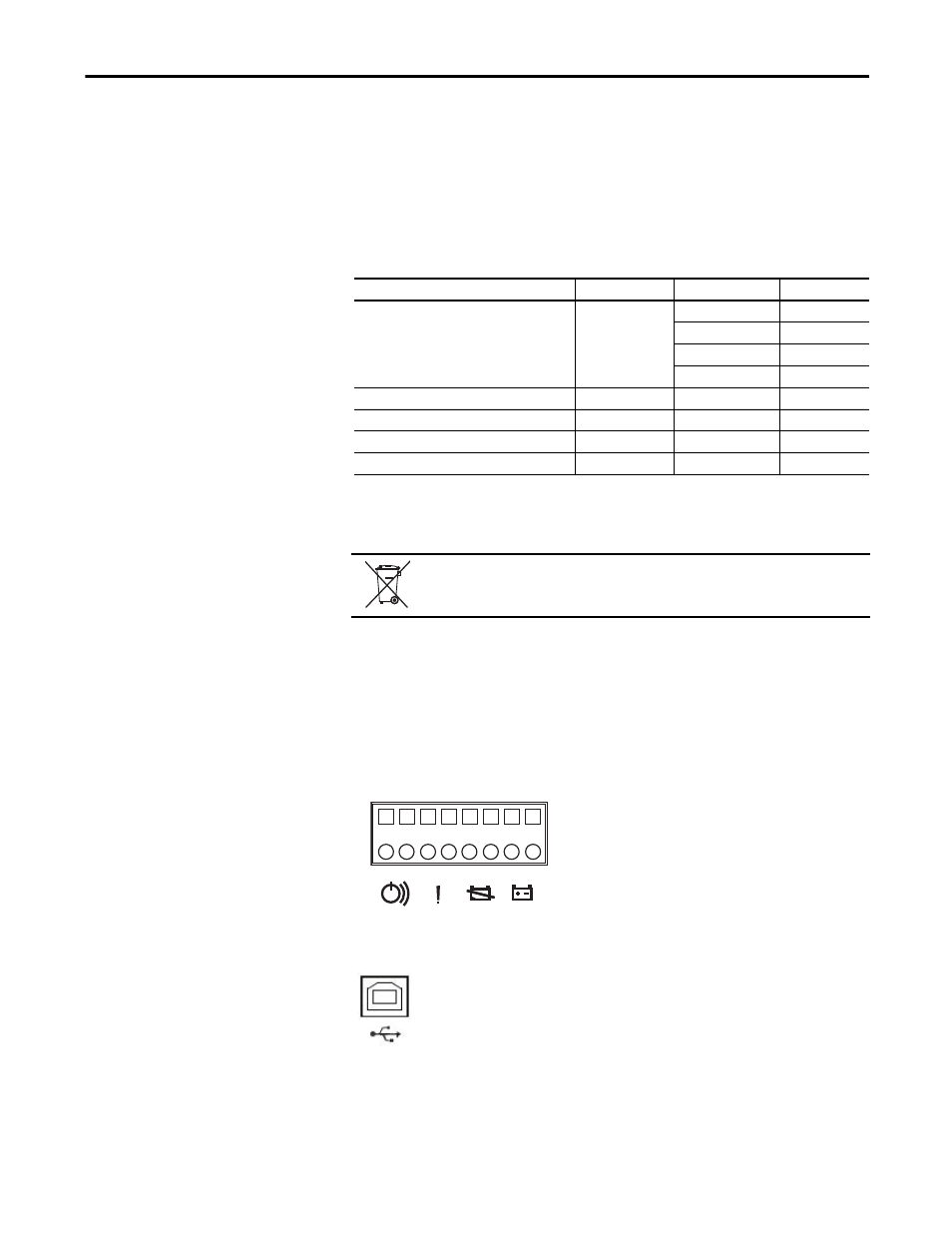

Rockwell Automation Publication 1609-UM009A-EN-P - January 2013 19
Bulletin 1609 UPS
General Information 1609-D
and 1609-B UPS Units
Recommended Battery
for Use with the UPS
and 1609-EXBAT Rockwell Automation battery catalog numbers 1609-SBAT and 1609-HBAT
consist of the battery manufacturers listed below:
Not for use in a computer room as defined in the Standard for the Protection
of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Dry I/O Contacts There is one Remote Enable/Disable Switch connection and 3 Dry I/O Contacts
available on the front of the UPS. Do not apply external power to the Remote
Enable/Disable Switch; however, the 3 sets of Dry Contacts require external
power supplies (Contacts Rating is 1A/24V DC). Each of the dry contacts is
used to provide a remote status indication of the UPS, as follows:
•1 and 2 On Battery Contact (NO)
•3 and 4 Low Battery Contact (NO)
•5 and 6 Fault (Indicates UPS has faulted see trouble shooting section)
•7 and 8 Remote On/O (Shorted (closed) for ON, Open for OFF)
USB Communication Port The UPS supports a USB communication port for the end user
to connect with a computer. The user may monitor all the UPS
status through the USB port if the 1609 UPS Management
Software is installed in the computer. The software is stored
in the CD and can be found in the accessory bag.
Manufacturer MH Number Type Rating
B & B Battery (USA) MH19884 HRLS 5.5-12 12V DC, 2.75 Ah
BP 5-12 12V DC, 5.0 Ah
HR 5.5-12 12V DC, 2.75 Ah
SHR7-12 12V DC, 3.375 Ah
GS Yuasa International Ltd. MH12970 NPH5-12 12V DC, 5.0 Ah
Shenzhen Center Power Tech Co., Ltd. MH25860 CP1250 12V DC, 5.0 Ah
Shenzhen Ritar Power Co., Ltd. MH28539 RT1250 12V DC, 5.0 Ah
CSB Battery Co., Ltd. MH14533 HR1221W 12V DC, 5.25 Ah
Dispose of used batteries according to the battery instructions.
8 7 6 5 4 3 2 1
