Page 17: Figure 7 - panel or floor mount
Rockwell Automation Publication 1609-UM009A-EN-P - January 2013
17
Bulletin 1609 UPS
Battery Wiring
and Installation (cont.)

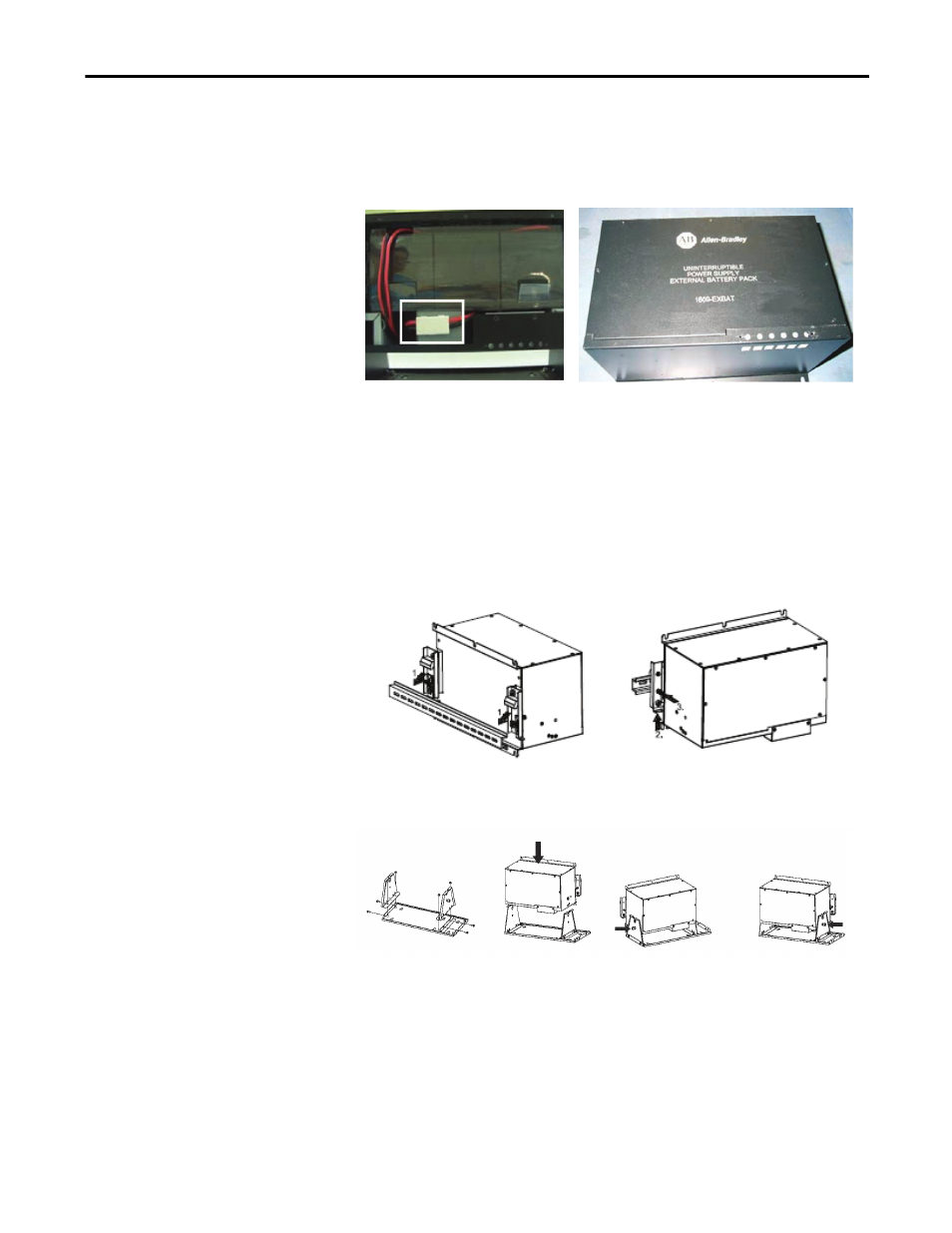

7. To complete the battery installation, insert the surplus wire harness into
the free space, close the white connector retainer and reattach the battery
door with the six screws (torque of 8.7+/-1.7 lb-in).
Mount the 1609-EXBAT
The 1609-D UPS can be used with the External Battery Unit (1609-EXBAT).
The 1609-EXBAT unit is designed to mount to a heavy duty DIN-rail (see
Figure 6) or the optional mounting bracket assembly (1609-BRK) which
allows it to mount to either the panel or floor (see Figure 7).
Figure 6 - Heavy Duty DIN Rail Mount
Figure 7 - Panel or Floor Mount
