Rockwell Automation 1609-5000CCT Isolation Step-Down Transformer User Manual
Page 11
Installation
3
Installation
Installation des Tower-
Transformators
• Der Transformator muss LINKS neben der USV eingebaut werden, bei Blick auf die
Vorderseite der Geräte.
• Falls Ihre Konfiguration die optionale Bypass-Konsole beinhaltet, stellen Sie bitte
sicher, dass die Bypass-Konsole LINKS neben dem Transformator eingebaut ist, bei
Blick auf die VORDERSEITE der Geräte. Eine Einbauanleitung finden Sie in der
Dokumentation zur Bypass-Konsole.
• Transformator und USV müssen anhand der mitgelieferten Verbindungsklammern
zusammengeschlossen werden.
1. Bewegen Sie den Transformator zum Aufstellort. Näheres hierzu finden Sie in
diesem Handbuch unter Auspacken.

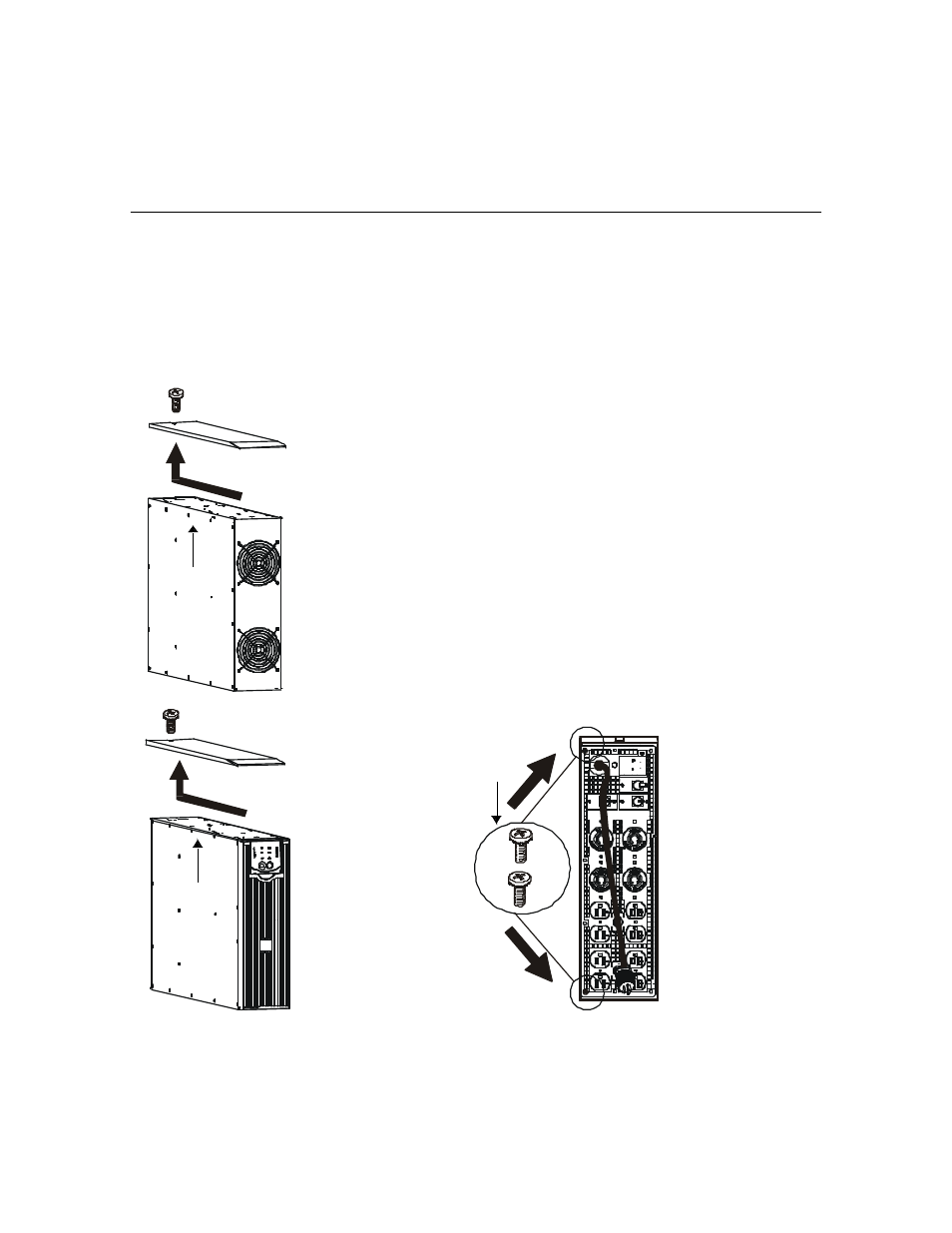

2. Entfernen Sie die Abdeckungen vom Transformator
Œ
und von der USV
•
(siehe Abbildung).
3. Entfernen Sie die beiden Schrauben an der Ober- und Unterseite des
Transformators
Ž
.
•
Œ
Ž
