1329I Integrated Drive/Motor CE Filter Option Kit 7
Filter Wiring

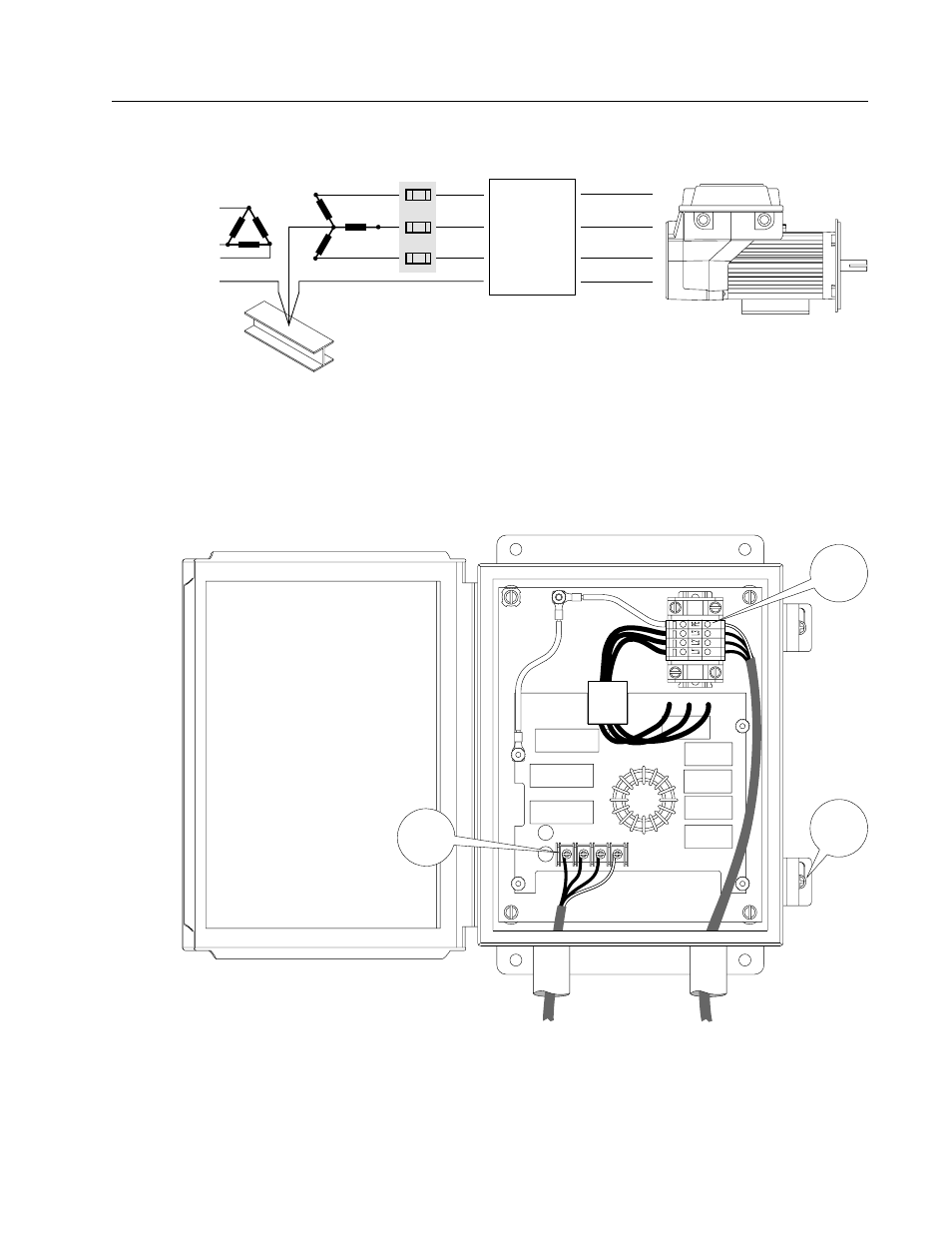

3. Connect the wires to the CE filter as shown in the diagram below.
(Three Phase unit shown.)
Conduit/4-Wire Cable
Nearest Building Structure Steel
PE
1329I Integrated Drive/Motor
L1
IN
L2
IN
L3
IN
L3'
OUT
L2'
OUT
L1'
OUT
T/L3
PE PE
S/L2
R/L1
CE Filter
0.3-0.8 Nm
(3-7 in-lb)
2.8 Nm
(25 in-lb) L1 L2 L3 PE
IN OUT
Incoming
AC Power
To Integrated Drive/Motor
AC Input Terminals
1.3 Nm
(12 in-lb)
