1329I Integrated Drive/Motor CE Filter Option Kit 3
Filter Installation
1. Remove the cover of the 1329I unit by loosening the four cover screws.
The display ribbon cable is designed to disconnect from the main unit
when the cover is removed.

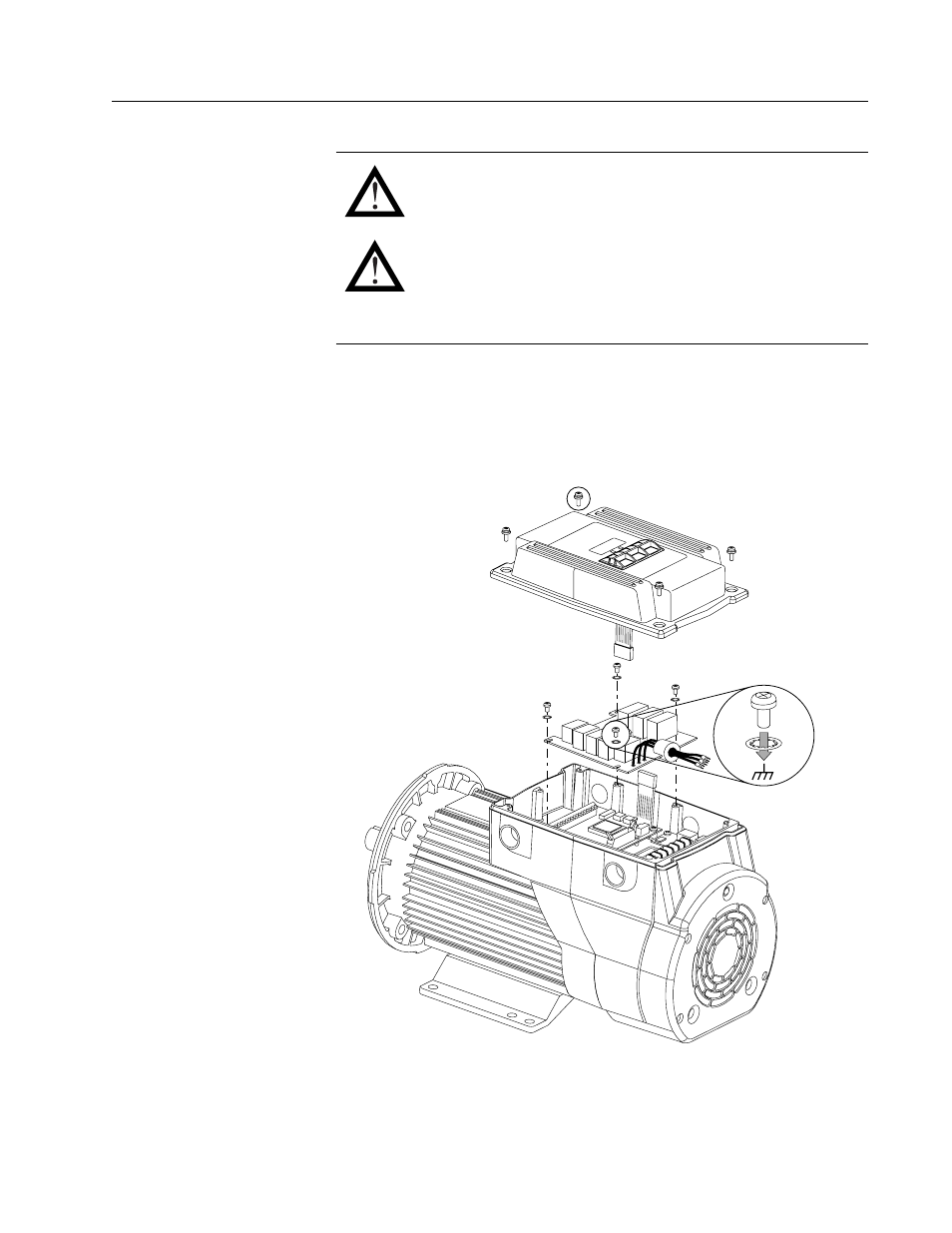

2. Mount the CE filter as shown in the figure below using the screws
provided.
3. The CE filter must be connected between the incoming AC supply line
and the drive input terminals.
Important: The filter may cause ground leakage currents. Therefore, a solid
ground connection must be provided as shown on the following
page.
ATTENTION: To prevent electrical shock, disconnect the power
source before installing or servicing.
ATTENTION: After disconnecting input power wait five minutes
and check with voltmeter to assure that DC bus capacitors are
discharged (DC+, DC-). The voltmeter should read zero volts.
Failure to observe these precautions could result in severe bodily
injury or loss of life.
1.46 Nm
(13 in-lb)
2.6 Nm
(23 in-lb)
