Rockwell Automation 1336E IMPACT Quick Start Guide - Manual (Page 6)

Publication 1336 IMPACT-5.5 EN – May, 1999 6
1336 IMPACT Quick Start Guide

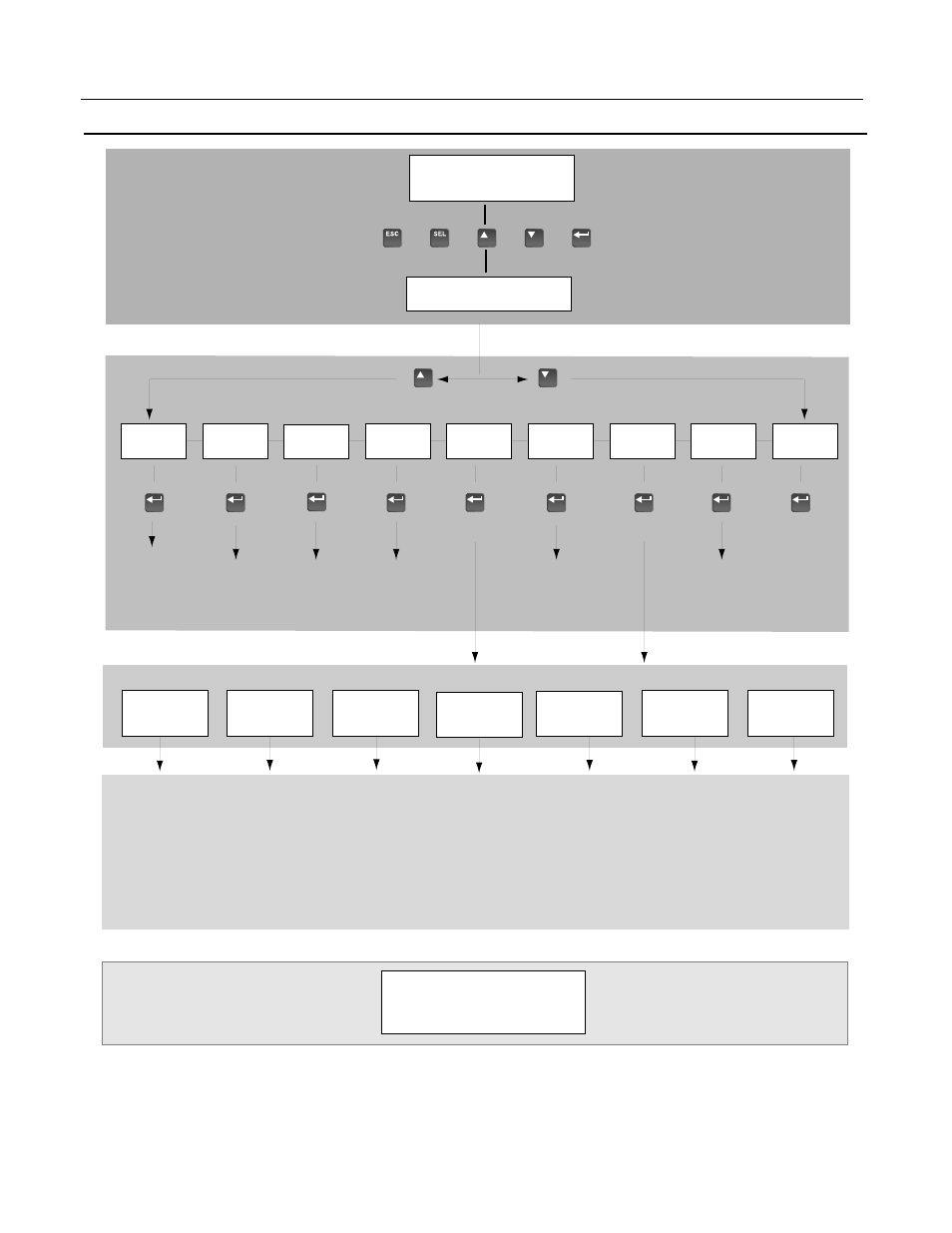

HIM Structure
Power-Up and
Status Display
Choose Mode
or or or or
EEProm Search Password Display Process Program Link Start Up
Operator Level
Mode Level
Parameters
Links
Save Values
Recall Values
Reset Defaults
Drive to HIM
HIM to Drive
Control Logic
Reset Drive1
Fault Queue
Warning Queue Login
Logout
Modify Set Links
Clear All Links
File Level
Group Level
Element Level
Parameters
Control
Status
Process Display
Motor Status
Drive/Inv Status
SCANport Status
Fault Status
Testpoints Drive Logic Select
Control Limits
Speed/Torq Mode
Speed Reference
Accel/Decel
Torque Reference
Feedback Device
Speed Feedback
Speed Regulator Fault Config
Fault Limits
Test Points Digital Config
Analog Inputs
Analog Outputs
SCANport Config
SCANport Status
SCANport Analog
Gateway Data In
Gateway Data Out Flux Braking
DC Braking/Hold
Max Mtr Current
Fast Flux Up
Start Dwell
Prog Function
Bus Reg/Control
Process Trim
Flying Start Motor Nameplate
Encoder Data
Inverter
Motor Constants Autotune Setup
Autotune Status
Autotune Results
Drive to HIM
HIM to Drive
Monitor Control Fault Setup
Interface/
Comm Motor/
Inverter
Application Autotune
(See Next Page)
