Dimensions – Rockwell Automation 1414-IPZxxxxx_CPZxxxxx_CPDxxxxx Differential Air Pressure Transmitter User Manual
Page 10

10
Differential Air-pressure Transmitter
Publication 1414-IN011B-EN-P - July 2010

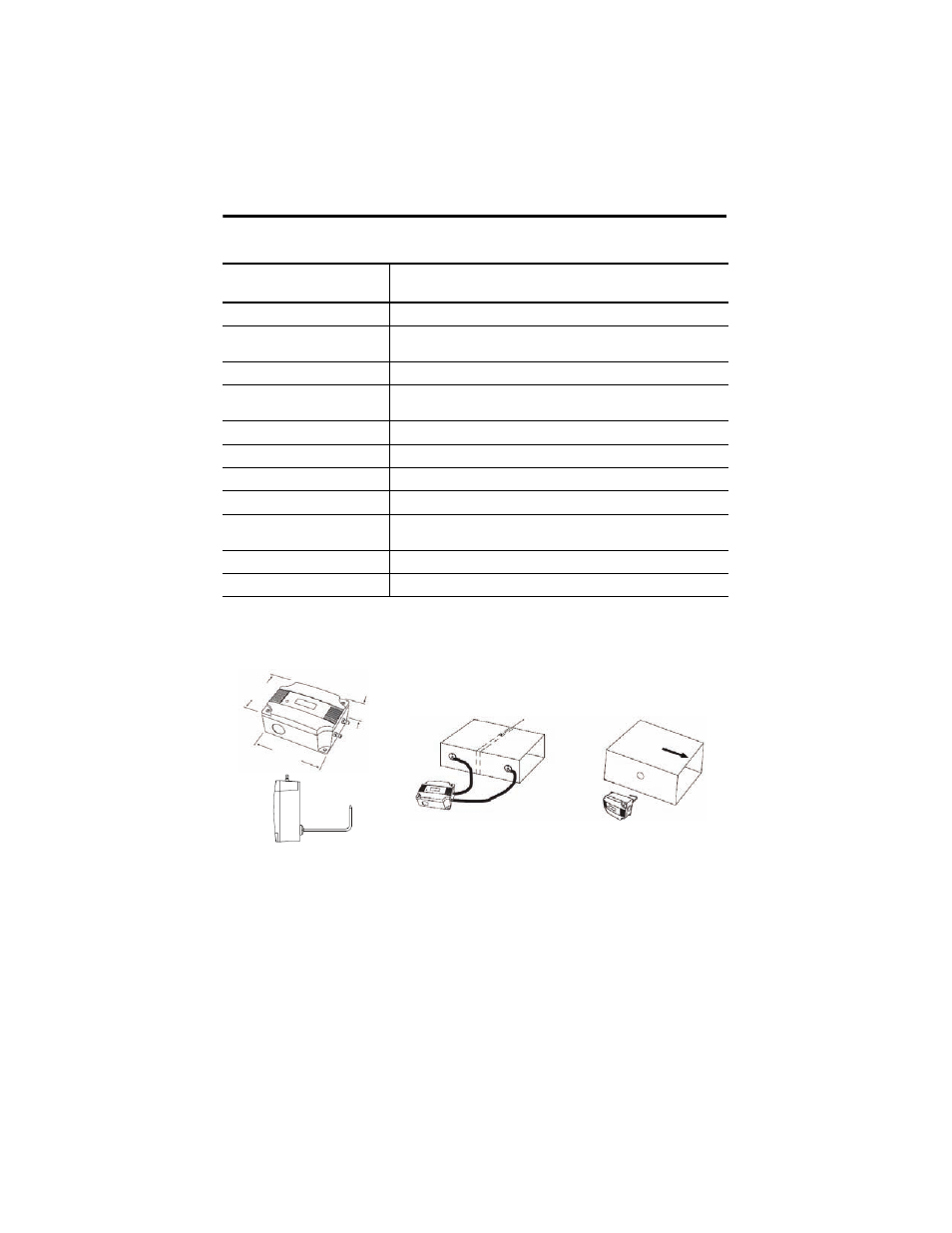

Dimensions
Protection circuitry
Reverse voltage protected and output limited
Output signal
4…20 mA (2-wire), 0…5V DC or 0…10V DC (3-wire) Pin jumper
selectable
Current output drive capability
400 Ω maximum @ 24V DC
Voltage output drive capability
2 KΩ minimum for 0…5V DC signal 10 KΩ minimum for 0…10V DC
signal
Zero adjustment
Pushbutton auto-zero
Wiring connections
Screw terminal block (14…22 AWG)
Pressure Connections
Barbed ports for 4.32 mm (0.170 in.) ID flexible tubing
Conduit Connection
Access hole for ½ in. NPT conduit or cable gland
Enclosure
High Impact Black ABS, plenum rated with optional gasket
127 mm x 84 mm x 53 mm (5.00 in. W x 3.3 in. H x 2.1 in. D)
Weight
159 grams (5.6 oz)
Optional Display
3½ digit, 10.16 mm (0.4 in.) digit height
Technical Specifications - Differential Air-pressure Transmitter
Attribute
1414-IPZ10FODAA, 1414-IPZ10FNDAA, 1414-IPD10FNRAA,
1414-CPZ10FODAA, 1414-CPZ10FNDAA, 1414-CPD10PNRAA
(2.11 in.)
53.6mm
(3.32 in.)
84.3mm
(4.56 in.)
115.8mm
Airflow
Filter
y
ti
c
o
l
e
V
w
o
lf
ri
A
t
c
u
D
g
n
ir
o
ti
n
o
M
r
e
tl
i
F
