DISCONNECT SWITCH AND ACCESSORY
INSTALLATION INSTRUCTION SHEET
1
1004063
42052-064
OF
N/A
N/A
N/A
REVISION
AUTHORIZATION
DR.
CHKD.
APPD.
DATE
DATE
DATE
E - DOC
LOCATION: MILWAUKEE, WISCONSIN U.S.A.
B-vertical.ai
DWG.
SIZE
SHEET
B
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
H
REFERENCE
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
.XX:
.XXX:
ANGLES:
42052
THIS DRAWING IS THE PROPERTY OF
ROCKWELL INTERNATIONAL CORPORATION
OR ITS SUBSIDIARIES AND MAY NOT BE COPIED,
USED OR DISCLOSED FOR ANY PURPOSE
EXCEPT AS AUTHORIZED IN WRITING BY
ROCKWELL INTERNATIONAL CORPORATION
---------------
---------------
---------------
---------------
---------------
---------------
6
9
1
2
3
Connecting
Rod
Min.
Max.
"N"
Standard
Extended
Catalog Number
1494V-RA3
1494V-RA4
6-3/4"
9-1/8"
9-1/8"
21-5/8"

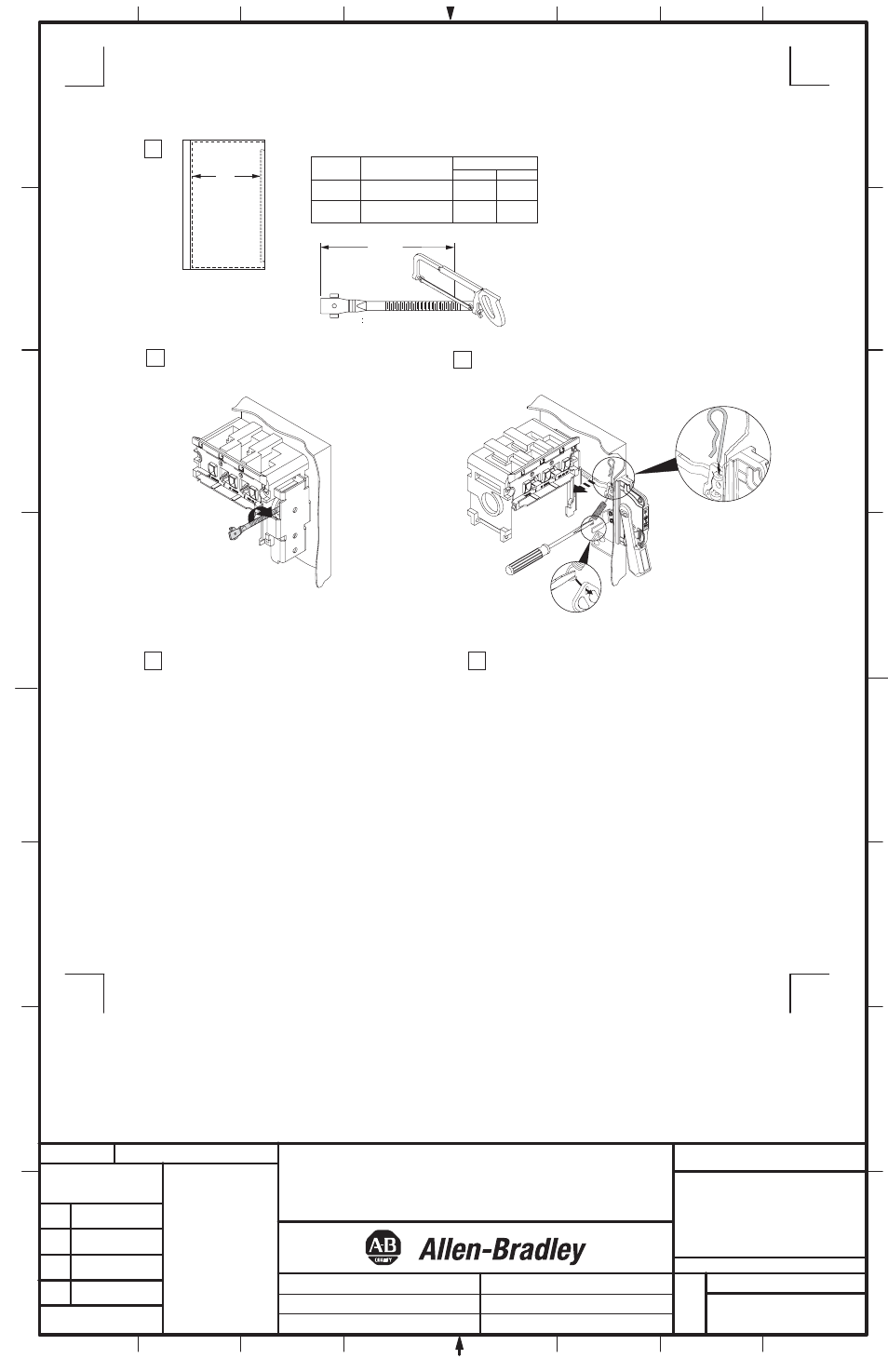

Connecting Rod Installation
Right Hand Operation
Connecting Rod Adjustment Procedure
N
Enclosure
Working Depth
(Flange to
Mounting Plate)
N - 3"
Front
Install connecting rod in mechanism and
thread in clockwise (12) full turns
Place the disconnect handle in the "OFF" position. Insert the
ears of rod into the primary link of the handle and install the
hitch pin as shown below
4
5
"ON" Position
a) Move disconnect handle to the "ON" position.
b) If switch does not fully close, return handle to "OFF"
position.
c) Remove hitch pin and disengage the connectiong rod from the
primary link.
d) Turn connecting rod counter-clockwise (1) full turn.
e) Re-engage connecting rod in primary link of handle, insert
hitch pin and re-test
f) Repeat 4a - 4e as necessary.
"OFF" Position
g) Move disconnect handle to the "OFF" position.
h) If switch does not fully open, return handle to "ON"
position.
j) Remove hitch pin and disengage the connectiong rod from
the primary link.
k) Turn connecting rod clockwise (1) full turn.
l) Re-engage connecting rod in primary link of handle, insert
hitch pin and re-test
m) Repeat 5g - 5l as necessary.
(6)
