E - doc, Disconnect switch installation – Rockwell Automation 1494V-DS30_DS60_DS100_DS200 Disconnect Switch (30/60A - Series A) (100/200A -Series B or C) User Manual
Page 3
3
9
DISCONNECT SWITCH AND ACCESSORY
INSTALLATION INSTRUCTION SHEET
1
1004063
42052-064
OF
N/A
N/A
N/A
REVISION
AUTHORIZATION
DR.
CHKD.
APPD.
DATE
DATE
DATE
E - DOC
LOCATION: MILWAUKEE, WISCONSIN U.S.A.
B-vertical.ai
DWG.
SIZE
SHEET
B
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
H
REFERENCE
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
.XX:
.XXX:
ANGLES:
42052
THIS DRAWING IS THE PROPERTY OF
ROCKWELL INTERNATIONAL CORPORATION
OR ITS SUBSIDIARIES AND MAY NOT BE COPIED,
USED OR DISCLOSED FOR ANY PURPOSE
EXCEPT AS AUTHORIZED IN WRITING BY
ROCKWELL INTERNATIONAL CORPORATION
---------------
---------------
---------------
---------------
---------------
---------------
Rectangular
Metal Plate
Movable
Blades
Insert the rectangular metal plate provided with the hardware kit
into the crossbar end slot on the right-hand side as shown below.
ATTENTION: Do not attempt to change the position of the
drive mechanism after removal from the disconnect assembly.
Use the rectangular metal plate to rotate the crossbar from the
"OFF" position to the full "ON" positiom.
Remove the rectangular metal plate and discard, (not required for
switch operation.)
Position the drive mechanism assembly as shown below and install
the (4) screws.
Rotate the crossbar assembly in a clockwise direction to the
"ON" position (blades fully engaged - not visible).
(Use any convenient adjustable wrench or pliers to aid in
rotating the crossbar & moveable blades.)
With the disconnect switch in the "OFF" position, (blades visible)
loosen and remove the (4) screws.
Remove the drive mechanism from the right-hand side of the
disconnect switch.
Save the (4) 1/4-20 pan head screws shown below.

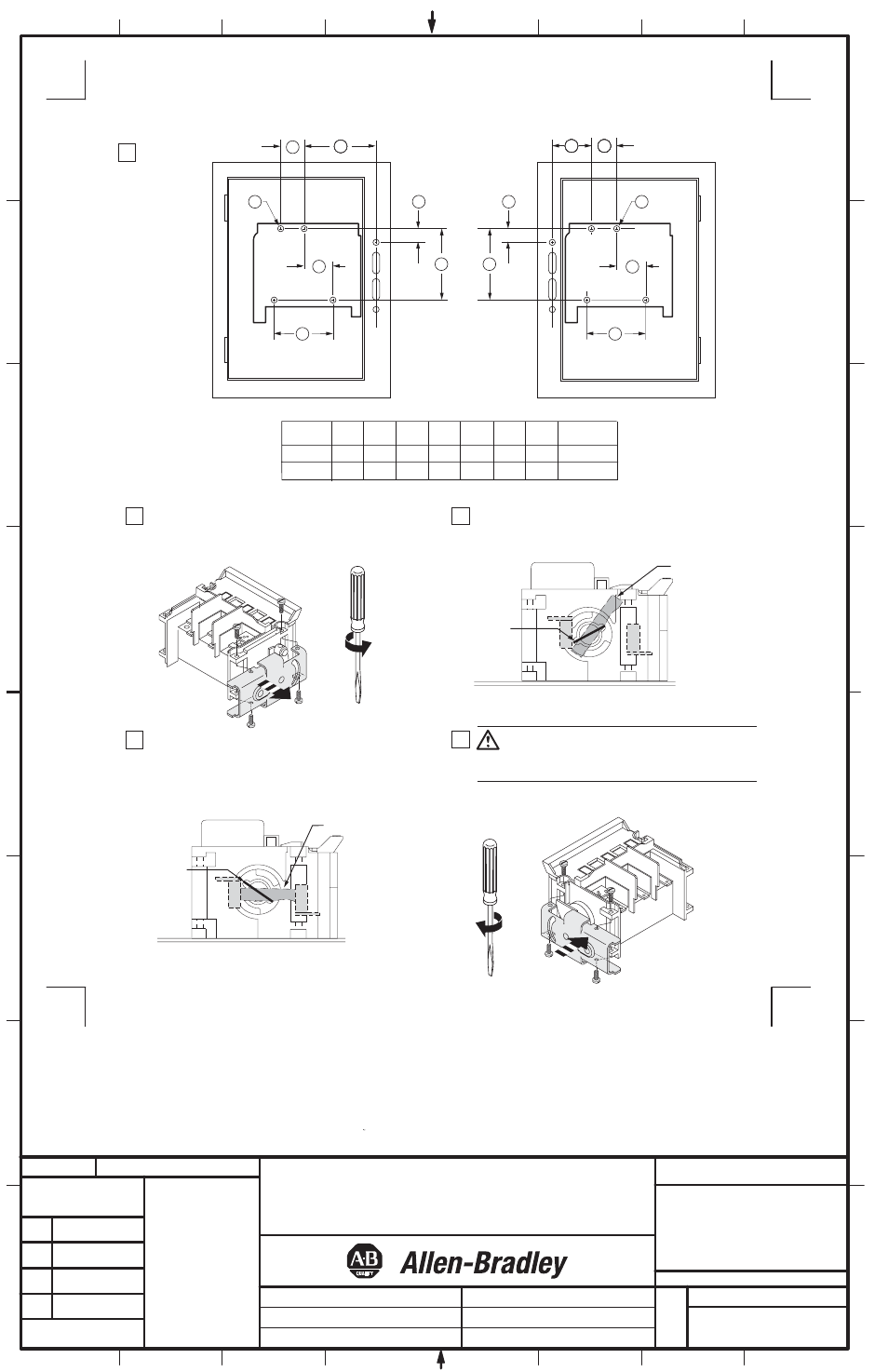

Disconnect Switch Installation
Conversion from Right-Hand Installation to Left-Hand Installation
1
2
3
5
4
Rectangular
Metal Plate
Moveable Blades
40-60 lb-in
3 - 29/64" 1 - 27/32" 1 - 31/32" 4 - 21/64"
1"
3 - 15/16"
(4) #10-32
2 - 37/64"
AA
BB
CC
DD
NEMA
SIZE
30A, 60A,100A
3 - 53/64" 2 - 63/64" 2 - 23/64" 4 - 59/64" 1 - 7/64" 4 - 23/32"
(4) 1/4-20
2 - 61/64"
200A
EE
FF
GG
HH
BB
BB
CC
DD
DD
EE
EE
FF
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
GG
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
CC
AA
AA
AA
AA
AA
AA
FF
Locate
Disconnect
Switch
Right Hand Flange
Left Hand Flange
HH
HH
(3)
