1397 – 5.19 August, 2000
1397 I/O Expansion Card 9

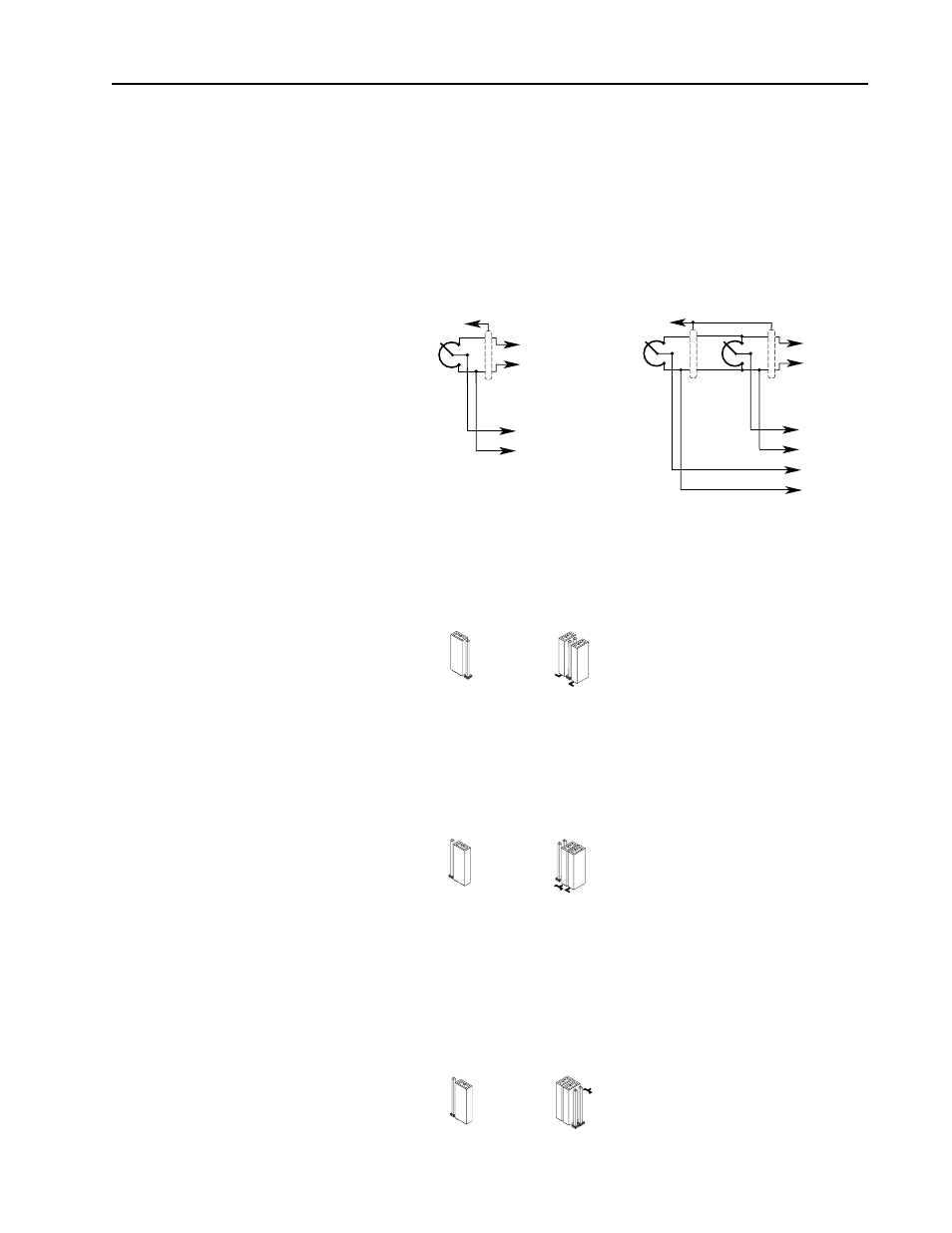

Shield to
Chassis
Ground Stud
Aux Pot
TB J10
33 +10V DC
34 GND
I/O
TB J5
Anlg In 3 +
Anlg In 3 –
50
51
Single Auxiliary Potentiometer
Aux Pot
TB J10
33 +10V DC
34 GND
Shield to
Chassis
Ground Stud
I/O
TB J5
Anlg In 3 +
Anlg In 3 –
Anlg In 4 +
Anlg In 4 –
50
51
52
53
Dual Auxiliary Potentiometer
M A
J11
Set f
or
Amps
(ANALOG INPUT 1)
4-20
PARK
J12
Set f
or
4-20mA Input
4 For A 4-20mA Input — Set analog input jumpers J11 to mA and J12 to 4-20 & Park.
Setup
(continued)
M A
J11
Set f
or
Amps
(ANALOG INPUT 1)
10
-50
J12
Set f
or
10-50mA Input
5 For A 10-50mA Input — Set analog input jumpers J11 to mA and J12 to Volts & 10-50mA.
V
J11
Set f
or
Volts
(ANALOG INPUT 1)
PARK
VO
LTS
J12
Set f
or
Volts
3 For A Bipolar or Unipolar DC Input Voltage — Set analog input jumpers J11 to V and
J12 to Volts
& Park.
2 Aux Pot Terminal Block J10 is used to connect up to (2) 5k
Ω
auxiliary potentiometers to
the I/O Expansion Card.
