1397 600HP AC Line Disconnect 3
1397-5.30 July, 1998
ON
Adapter
Stud
M8 × 130 mm
Bolt and M8
Split
Lockwasher
M8 × 130 mm
Bolt and M8
Split
Lockwasher
Wide Tab
with Hole
Stud
Spacer
Stud

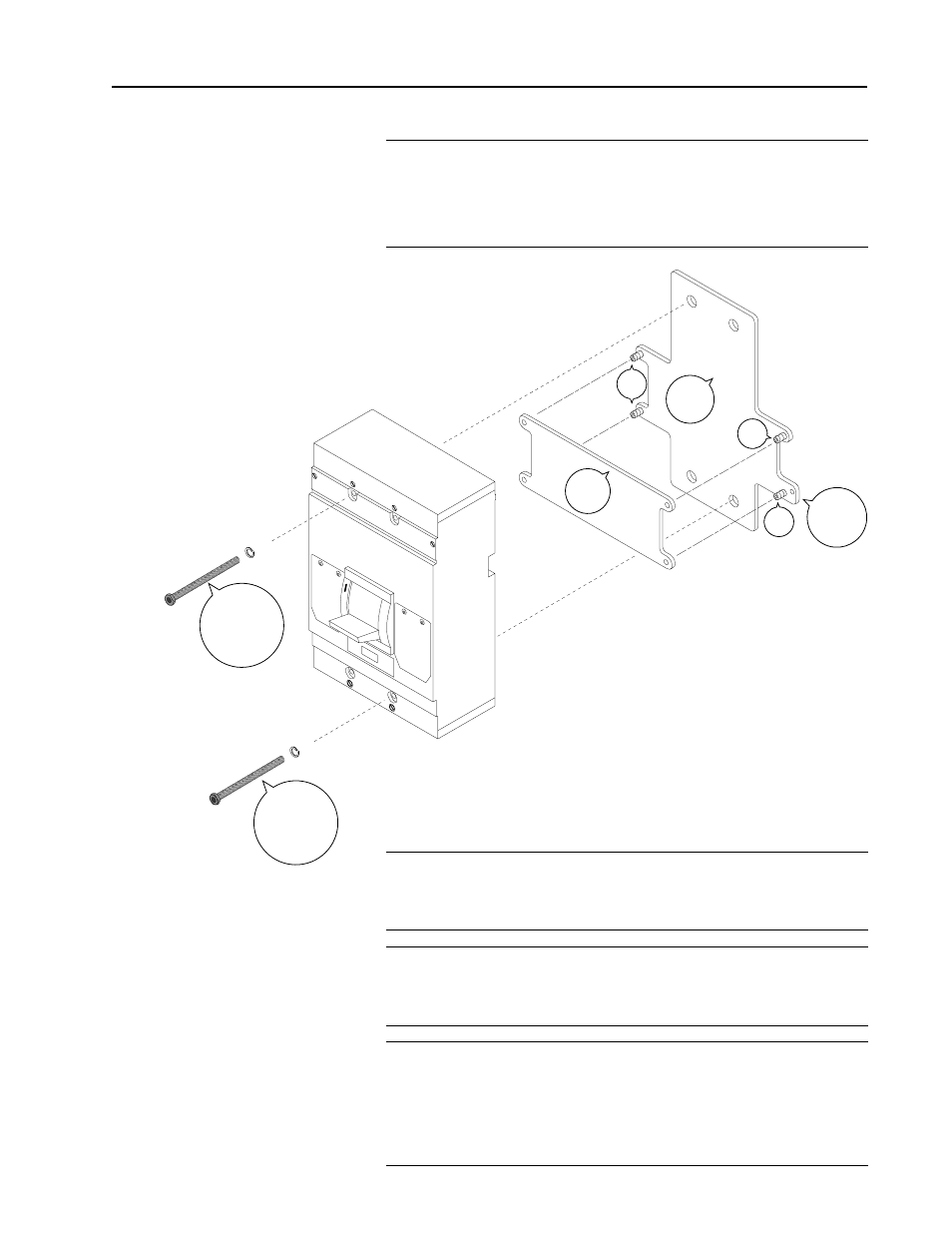

Installation
❐ 5 (10) screws fasten the red insulating mounting panel to the metal
frame of the drive. Remove and discard the second screw down
from the right top. It will be replaced later with hardware included
with the kit.
❐ 7 Insert (1) bolt and lockwasher into one of the disconnects’s upper
bolt holes, then insert another bolt and lockwasher into the bottom
bolt hole diagonally opposite it.
❐ 8 Orient the adapter plate so that the wide tab with the hole is on
the right as shown. Place the spacer over the adapter plate studs,
then push the spacer and adapter plate flush against the back of
the disconnect. The adapter plate mounting holes should go over
the ends of the bolts inserted in
Step 7 .
❐ 6 Position the disconnect switch so that it faces you and is oriented
as it will mount on the drive. Put (1) M8 split lockwasher onto
each of the M8 x 130mm bolts.
