All parameters are specified at 12V, 2.5A,230Vac input, 25ªC ambient and after a 5 minutes run-in time, unless noted otherwise.
6 Rockwell Automation Publication 1606-RM030A-EN-P — April 2014
Bulletin 1606 Switched Mode Power Supplies
6. Output
Output voltage nom. 12V
Adjustment range min. 12-15V guaranteed
max. 16.0V at clockwise end position of potentiometer
Factory setting 12.0V ±0.2%, at full load, cold unit
Line regulation max. 10mV 323-576Vac
Load regulation max. 100mV static value, 0A 8A
Ripple and noise voltage max. 100mVpp 20Hz to 20MHz, 50Ohm
Output capacitance typ. 5 200μF
Output current nom. 8A at 12V, see Fig. 6-1
nom. 6.4A at 15V, see Fig. 6-1
Output power nom. 96W
Short-circuit current min. 12A continuous current, short circuit impedance 100mOhm
max. 15A continuous current, short circuit impedance 100mOhm

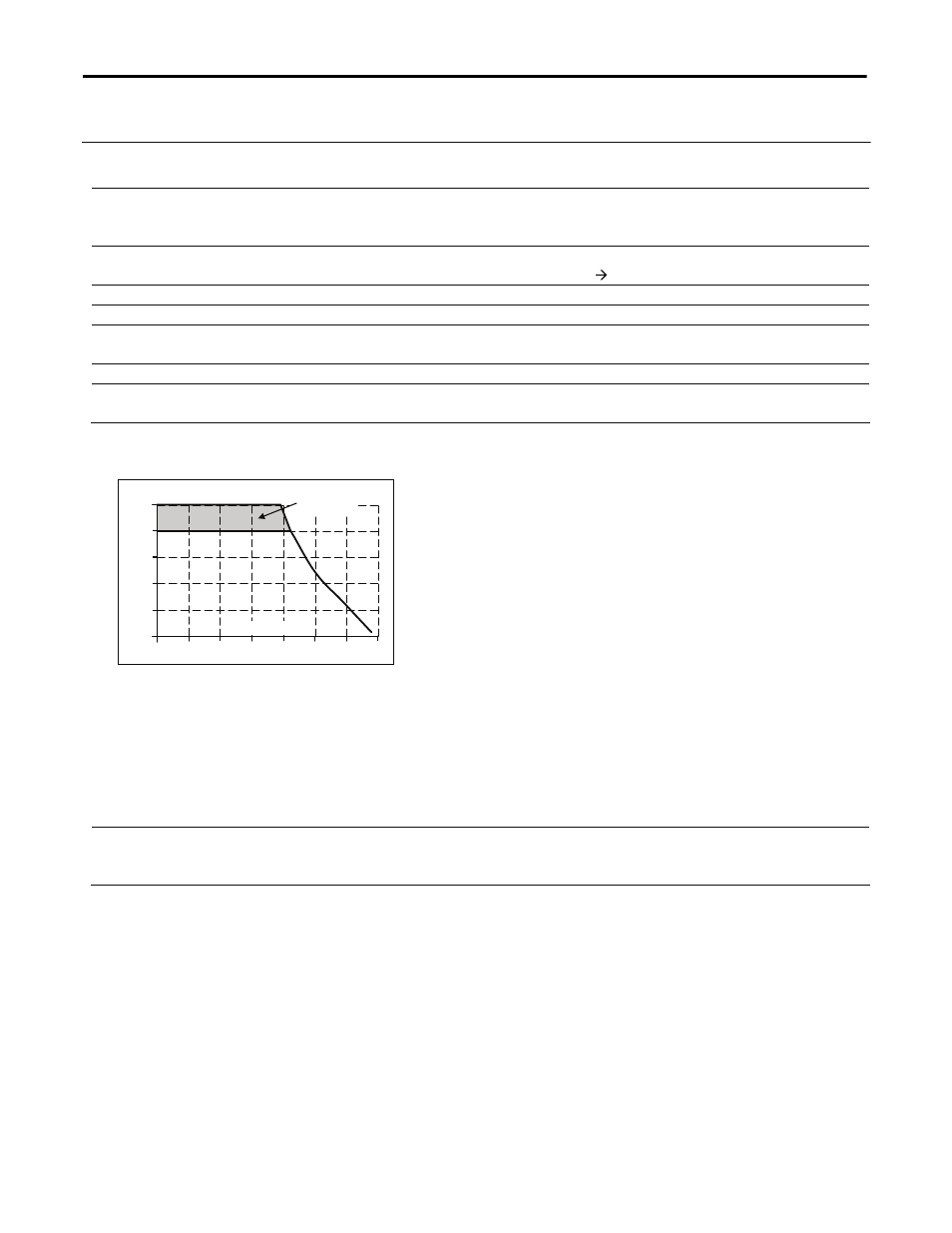

Fig. 6-1 Output voltage vs. output current,
typ.
Output Voltage
0
0 4 8
3
6
15V
9
12
0 1 2 1 6 2 14A
Adjustment
Range
Output Current
Peak current capability (up to several milliseconds)
The power supply can deliver a peak current which is higher than the specified short term current. This helps to start
current demanding loads or to safely operate subsequent circuit breakers.
The extra current is supplied by the output capacitors inside the power supply. During this event, the capacitors will be
discharged and causes a voltage dip on the output. Detailed curves can be found in section 23.1.
Peak current voltage dips typ. from 12V to 7V at 16A for 50ms, resistive load
typ. from 12V to 7V at 40A for 2ms, resistive load
typ. from 12V to 3.7V at 40A for 5ms, resistive load
