All parameters are specified at 5V, 3A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless noted otherwise.
4 Rockwell Automation Publication 1606-RM019A-EN-P — March 2014
Bulletin 1606 Switched Mode Power Supplies
3. AC Input
AC input nom. AC 100-240V -15% / +10%, TN/TT/IT-mains
AC input range 85-264Vac continuous operation
264–300Vac < 0.5s
Allowed voltage L or N to earth max. 300Vac
Input frequency nom. 50–60Hz ±6%
Turn-on voltage typ. 59Vac steady-state value, see Fig. 3-1
Shut-down voltage typ. 54Vac steady-state value, see Fig. 3-1
AC 100V AC 120V AC 230V
Input current (rms) typ. 0.34A 0.28A 0.17A at 5V, 3A see Fig. 3-3
Power factor *) typ. 0.52 0.51 0.44 at 5V, 3A see Fig. 3-4
Crest factor **) typ. 3.45 3.53 3.94 at 5V, 3A
Start-up delay typ. 630ms 630ms 630ms see Fig. 5 2
Rise time typ. 10ms 10ms 10ms at 5V, 3A, see Fig. 3-2
Turn-on overshoot max. 100mV 100mV 100mV see Fig. 3-2
*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
**) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.

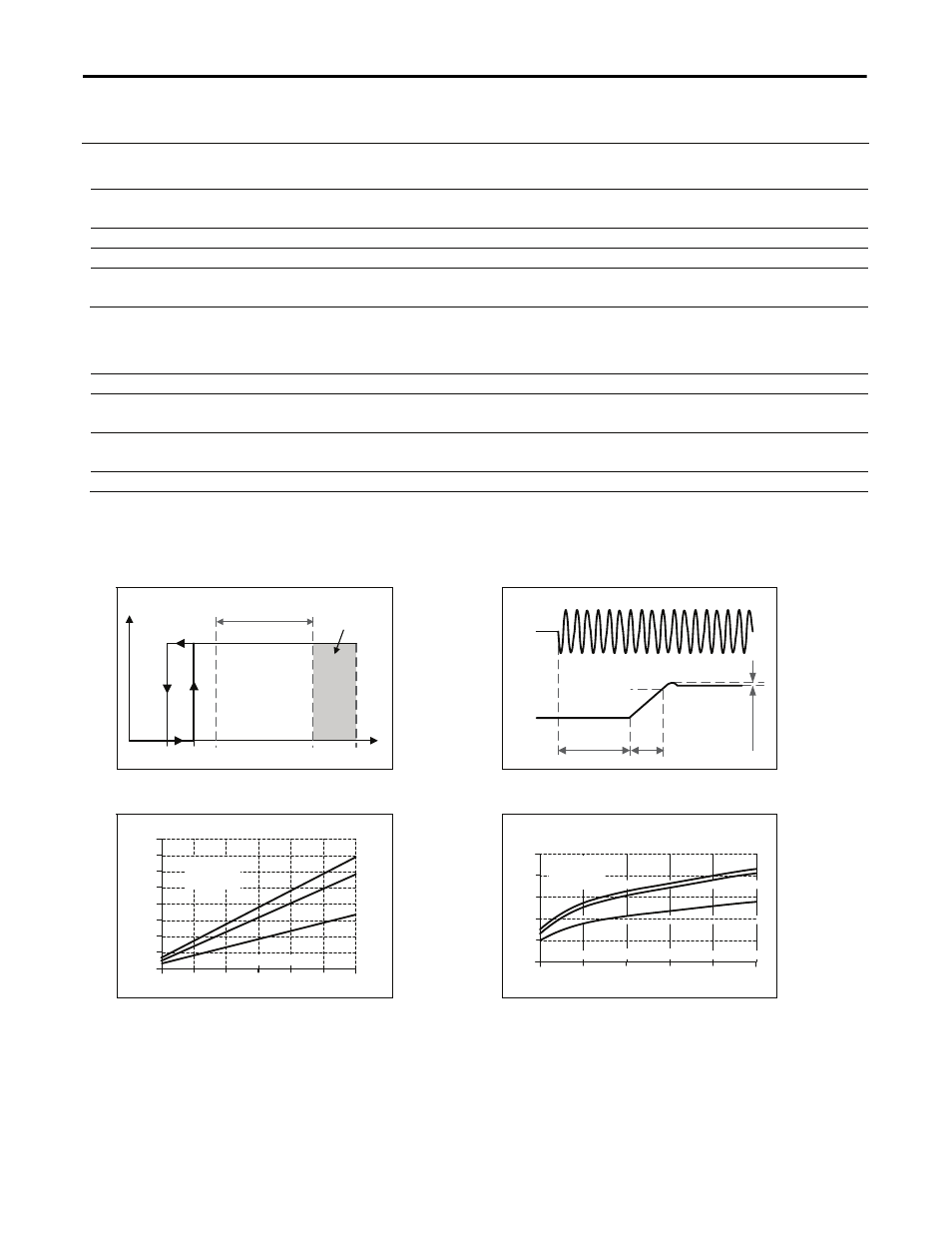

Fig. 3-1 Input voltage range Fig. 3-2 Turn-on behavior, definitions
Turn-on
85V
Rated
input range max.
500ms
V
IN
P
OUT
54V 300Vac 264V
Shut
-down
59V
Start-up
delay
Rise
Time
Overshoot
- 5%
Output
Voltage
Intput
Voltage
Fig. 3-3 Input current vs. output load Fig. 3-4 Power factor vs. output load
3.0A 0.5 1.0 2.0 0
0
0.10
0.4A
Input Current, typ.
2.5
0.20
1.5
0.25
0.15
0.05
0.30
0.35
b
c
a
a) 100Vac
b) 120Vac
c) 230Vac
Output Current
3.0A 0.5 1.0 1.5 2.5
0.30
0.35
0.40
0.45
0.50
0.55
Power Factor, typ.
a) 100Vac
b) 120Vac
c) 230Vac
b
c
a
2.0
Output Current
