6 1394 Fan Kit
Publication 1394-IN067A-EN-P — January 2005

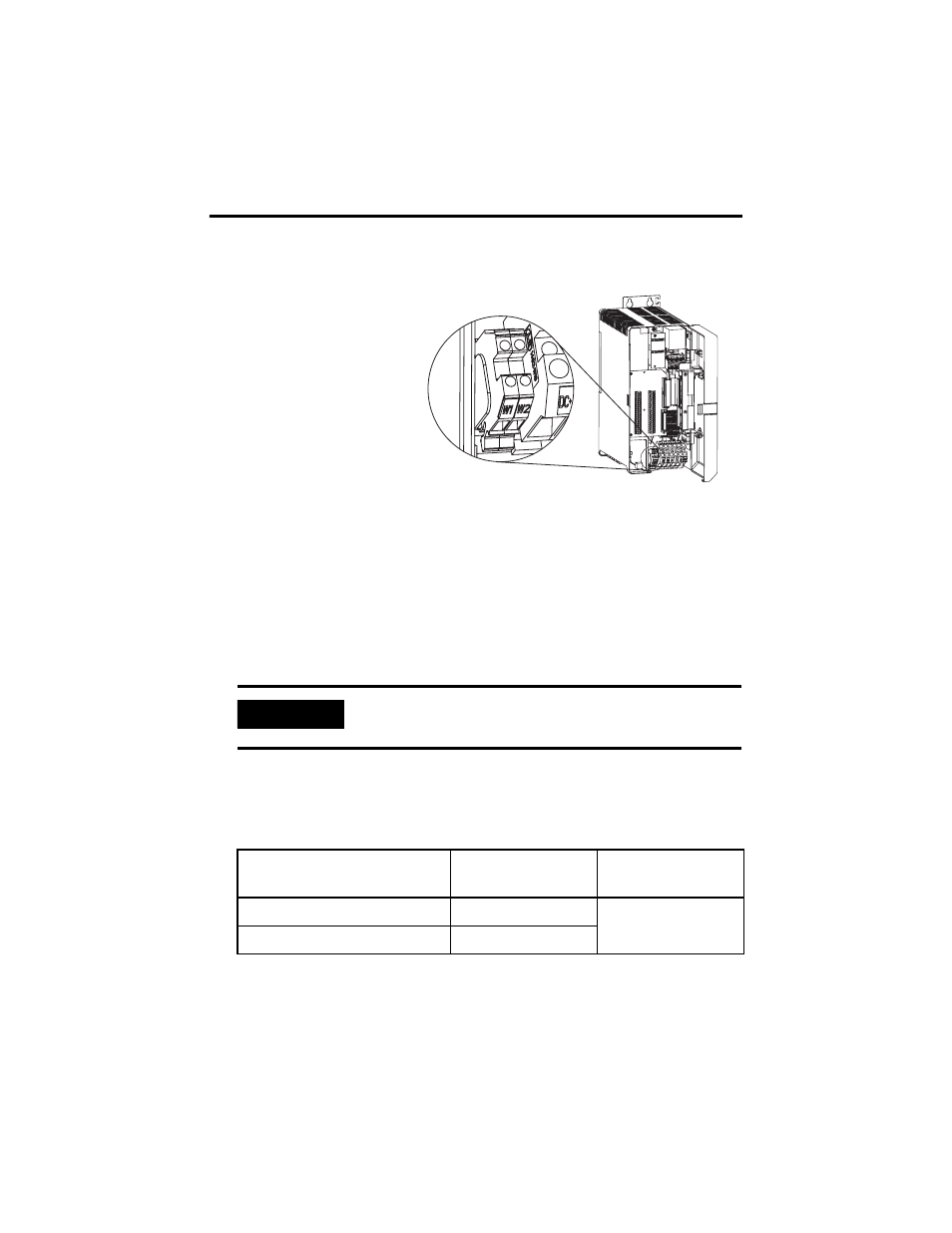

Figure 4
Locating 24V dc Connections (22kW system modules)
2. Label and remove the 24V dc logic power wiring from the system
module.
3. Determine the positive 24V dc supply wire and align the red wire
from the fan kit to the +24V side.
4. Determine the negative 24V dc supply wire and align the black wire
from the fan kit to the -24V side.
5. Insert and tighten the 24V dc supply wires (and fan wires) as
described in the table below (system module polarity is not
specified).
IMPORTANT
The desired direction of air flow is upward. If fan
is wired backwards, air flow will be downward.
System Module
24V dc Input
Connections
Torque Value
1394C-SJT05 and -SJT10 J1-1 and -2
0.56 - 0.62 N-m
(5.0 - 5.6 lb-in.)
1394C-SJT22 W1 and W2
24V dc Logic Power Connections
(W1 and W2)
1394C-SJT22- x-xx
System Modules (front view)
