1394 Fan Kit 5
Publication 1394-IN067A-EN-P — January 2005
Wiring the 1394 Fan Kit
The 1394 fan kit accepts only 24V dc, which can be supplied from the
system module 24V dc (logic) power supply or separate 24V dc supply.
To wire the 1394 fan kit:
1. Route fan kit wires down along the side of the system module and
over to where the 24V dc power supply connections are made (refer
to figures 3 and 4 for the location of the 1394 connector locations).

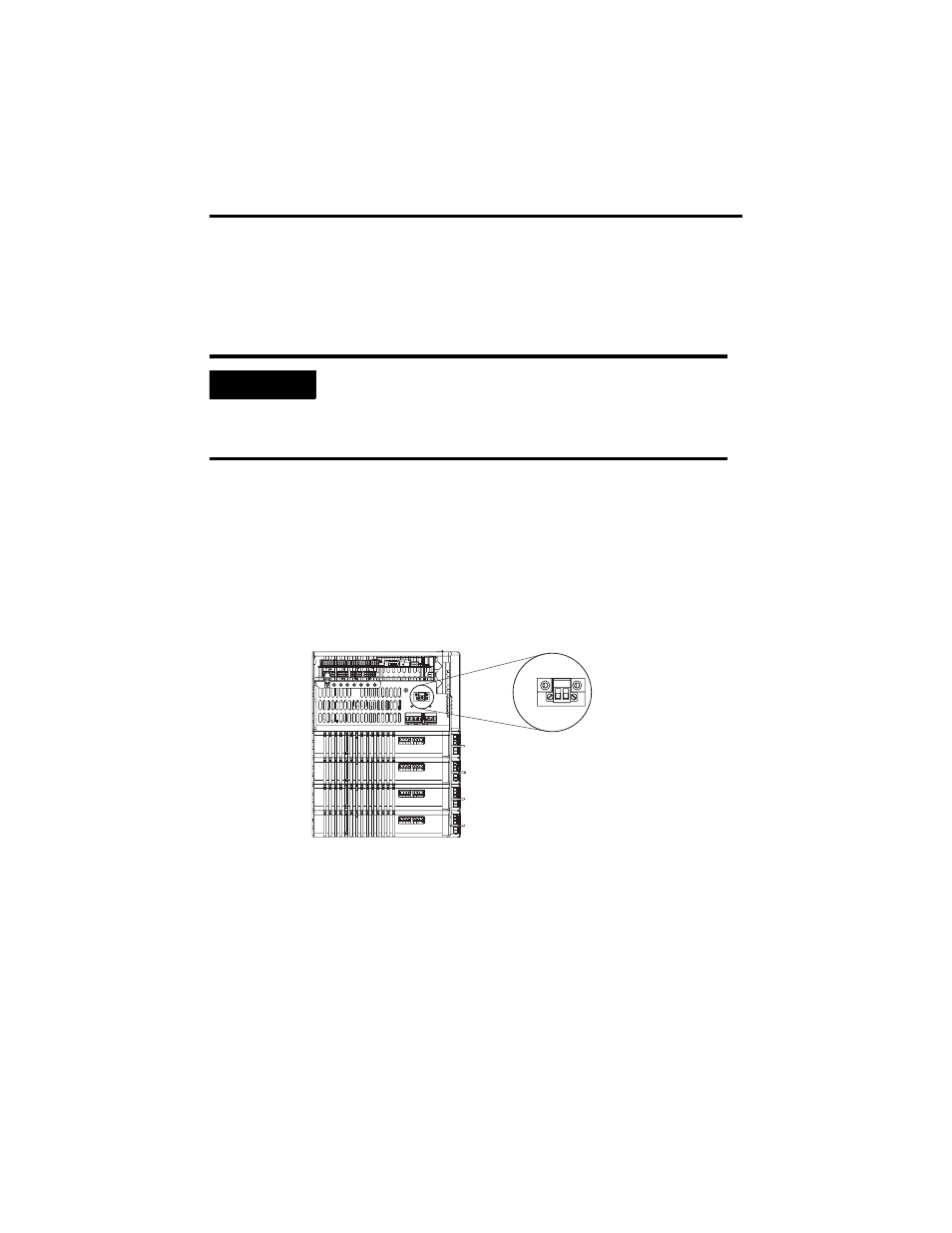

Figure 3
Locating 24V dc Connections (5 and 10kW system modules)
IMPORTANT
The 1394 fan kit accepts only 24V dc (within a range
of 18.75 - 31.25V dc, 50/60 Hz). If your system
module logic power supply is 24V ac, then a
separate (customer-supplied) 24V dc must be used.
1 2
J1
24V dc Logic Power Connections
(J1-1, and -2)
1394C-SJT05-
x-xx and 1394C-SJT10-x-xx
System Modules (bottom view)
