8 Rockwell Automation Publication 1608M-UM004A-EN-P - April 2014
Chapter 2 Installation

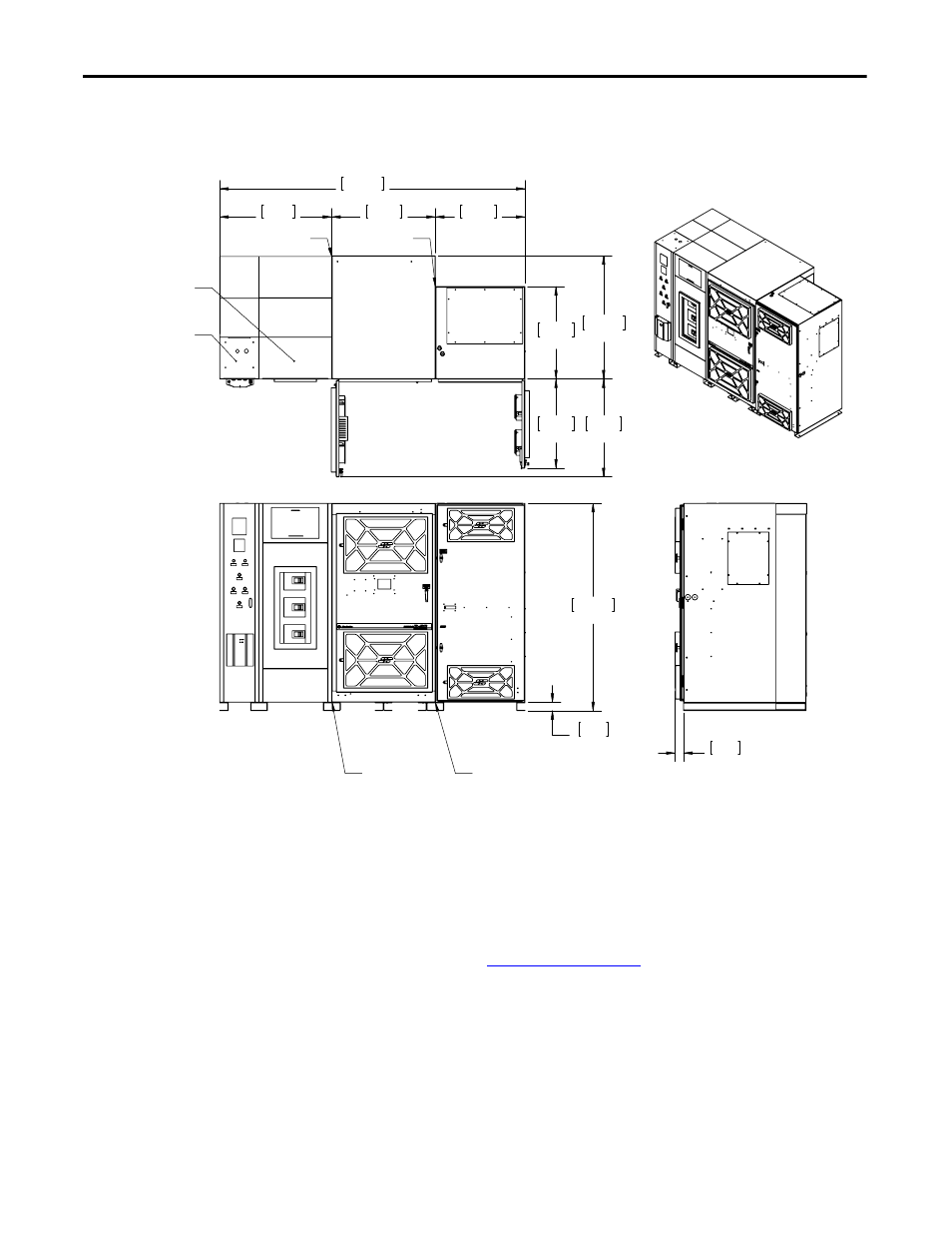

System Layout Figure 1 - System layout
System Clearance The two Automatic Bypass Switchboard doors are hinged on the left, the
MegaDySC module door is hinged on the left, and the ER Module door is
hinged on the right. Clearance must be given to allow the doors to swing fully
open as shown in the
System layout on page 8 .
Only front access and top access are required for installation and commissioning.
Rear access and left side access should be maintained when possible, to simplify
future maintenance tasks.
$8720$7,&
%<3$66
6:,7&+%2$5'
0(*$'\6&
02'8/(
(502'8/(
6+,33,1*63/,7 6+,33,1*63/,7
&86720(5
,23/$7(
72321/<
&$%/((175<
3/$7(
72321/<
6+,33,1*63/,7 6+,33,1*63/,7
